UGREEN M.2 SATA/NVMe HARD DRIVE ENCLOSURE

Transfer data fast with either USB C 3.2 Gen2 or Thunderbolt 3. This M.2 enclosure provides transport speeds of up to 10Gbps as an NVMe enclosure and 6Gbps with SATA protocols.

M.2 NVMe SSD enclosures are specially designed for M and B&M Keys and size 2230 /2242 /2260 /2280 SSDs above 2TB. The SSD reader is applicable to Windows, Mac OS, Linux, Android, and IOS systems. (NOTE: It does not support M-SATA or an SSD with a heatsink larger than 1mm).

The NVMe reader features an advanced RTL9210B chip, with short-circuit, over-current, and multi-protection to ensure safety for your SSD and valuable data. It also supports UASP/Trim.

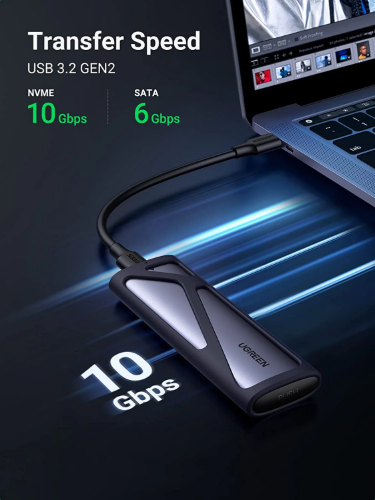

This M.2 SSD enclosure features the latest USB 3.2 Gen 2 and PCIe 3.0, which supports an amazing data transmission rate up to 10Gbp. It is faster enough to transfer 1GB of files in 1 second.

The USB 3.2 interface incorporates UASP & TRIM that enabling it to perform a 70% faster read speed and 40% faster write speed than the conventional USB 3.1 interface.

Ultra-slim aluminum case with an extra silicone case, portable yet durable, much easier to carry with this NVMe external enclosure, ideal for traveling.

HIGHLIGHTS

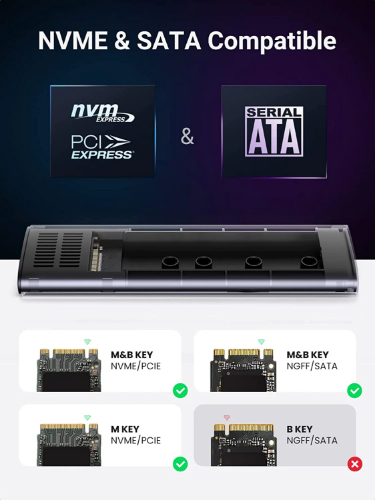

1. NVME & SATA Compatible

2. transfer speed usb 3.2gen

3. UGREEN M.2 enclosure is designed to house an M-Key& B+M Keys and size 2230/2242 /2260/2280 NVMe PCIe SSD

4. M.2 SATA SSD, which turns it into a portable USB 3.2 external drive for maximum utilization

Main features

• Supports both NVMe PCIe and SATA NGFF M.2 SSDs

• Compatible SSD sizes:

  • 2230

  • 2242

  • 2260

  • 2280

• USB 3.2 Gen 2 with speeds up to 10Gbps

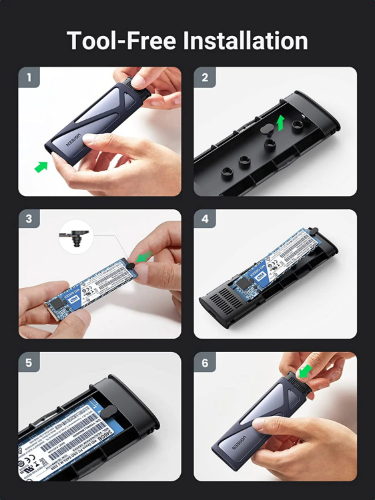

• Tool-free SSD installation

• Aluminum alloy casing with thermal pad

• UASP & TRIM support for faster performance

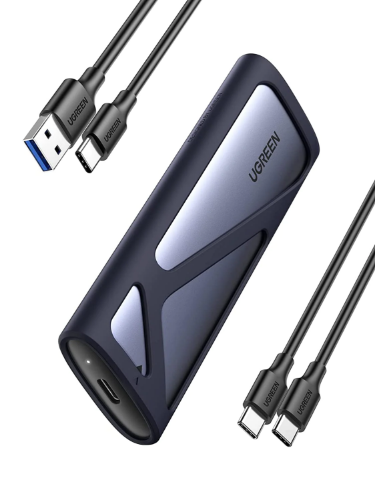

• Includes:

  • USB-C to USB-C cable

  • USB-A to USB-C cable

• Supports up to 8TB SSD capacity

Best use cases

• Converting old laptop SSDs into portable drives

• Fast backup and file transfer

• Portable game storage

• Video editing scratch disk

• External boot drive for Windows/macOS/Linux

Important compatibility note

Some UGREEN enclosures support NVMe only, while CM400 supports both SATA and NVMe. Reddit users frequently report confusion between SATA M.2 and NVMe M.2 compatibility, so checking the SSD key type before purchase is important.

Build quality and performance

Users generally praise:

• solid aluminum construction,

• stable transfer speeds,

• compact portable design,

• low operating temperatures.

Higher-end variants also include upgraded chipsets like RTL9210B for better stability and thermal control.
