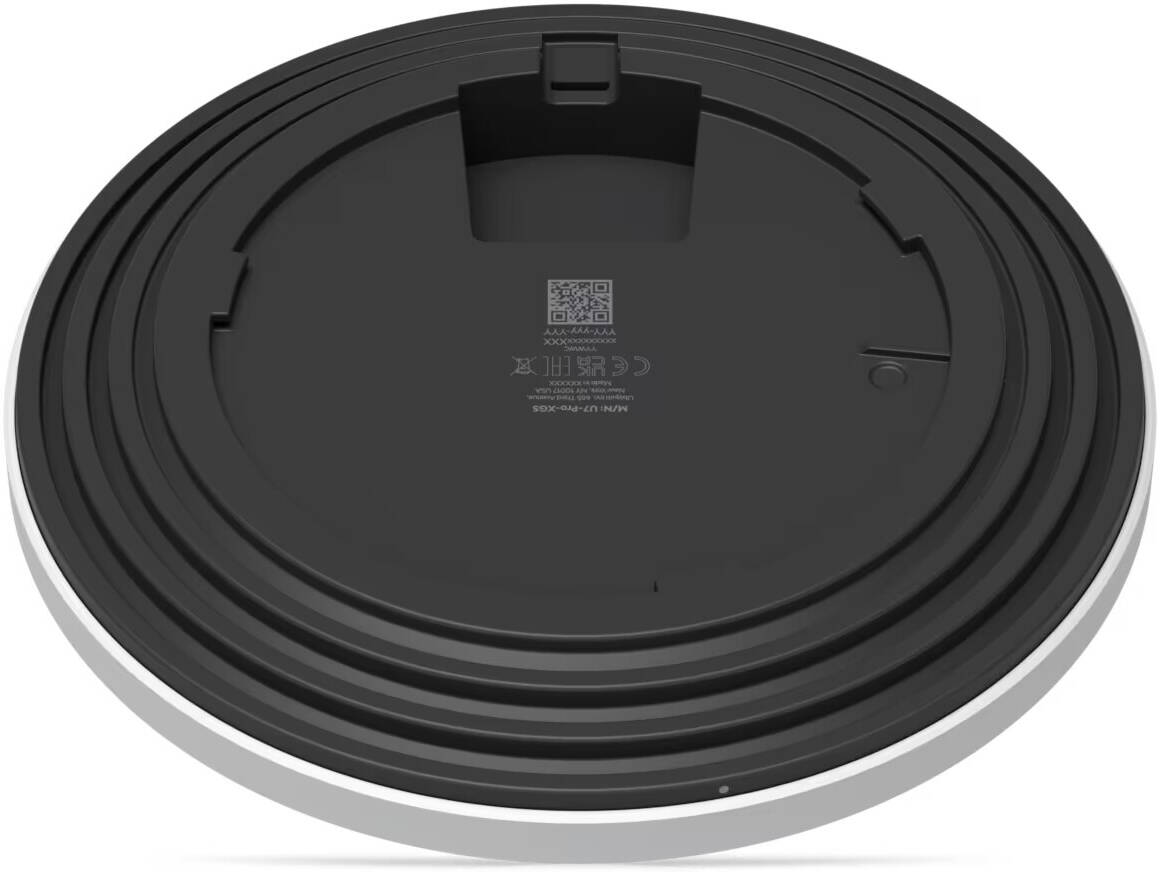

Ubiquiti U7 Pro XGS Access Point, Wi-Fi 7 with 6GHz Support, 8 Data Streams, Powered By PoE++, Hotspot 2.0, Zero-Wait DFS, Internal Antenna Type, 1x 10GbE PoE+ RJ45 Port Interface, White | U7-Pro-XGS
You save AED 35
WiFi 7 with 6GHz support
8 streams (data streams)
coverage up to 160m2
more than 500 connected devices
powered by PoE++
Speed limit per user
management using UniFi Network (version 8.2.93 and later)
Real-time spectral analysis for better channel selection
Hotspot 2.0
Zero-Wait DFS
Included warranty
1 Year
Options Available:
Contact us
Product Description
U7 Pro XGS
Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.
Specifications
Dimensions | Ø215 × 32.5 mm (Ø8.5 × 1.3") |
WiFi Standard | WiFi 7 |
Spatial Streams | 8 |
Coverage Area | 160 m² (1,750 ft²) |
Max. Client Count | 500+ |
Uplink | 10 GbE |
Mounting | Ceiling, Wall (Lite Mount Included) |
Power Method | PoE++ |
MIMO (6 GHz) | 2×2 DL/UL MU-MIMO |
MIMO (5 GHz) | 4×4 DL/UL MU-MIMO |
MIMO (2.4 GHz) | 2×2 DL/UL MU-MIMO |
Max Data Rate (6 GHz) | 5.8 Gbps (BW320) |
Max Data Rate (5 GHz) | 8.6 Gbps (BW240) |
Max Data Rate (2.4 GHz) | 688 Mbps (BW40) |
Antenna Gain (6 GHz) | 6 dBi |
Antenna Gain (5 GHz) | 6 dBi |
Antenna Gain (2.4 GHz) | 4 dBi |
Max TX Power (6 GHz) | 24 dBm |
Max TX Power (5 GHz) | 29 dBm |
Max TX Power (2.4 GHz) | 23 dBm |
Max BSSIDs | 8 per radio |
Supported Data Rates – WiFi 7 (802.11be) | 6 GHz: 7.3 Mbps–5.8 Gbps (MCS0–13, NSS1/2) • 5 GHz: 7.3 Mbps–8.6 Gbps (MCS0–13, NSS1–4) |
Supported Data Rates – WiFi 6 (802.11ax) | 7.3 Mbps–4.8 Gbps (MCS0–11, NSS1–4) |
Supported Data Rates – WiFi 5 (802.11ac) | 6.5 Mbps–3.4 Gbps (MCS0–9, NSS1–4) |
Supported Data Rates – 802.11n | 6.5 Mbps–600 Mbps (MCS0–31, HT20/40) |
Wireless Meshing | ✓ |
Band Steering | ✓ |
802.11v BSS Transition | ✓ |
802.11r Fast Roaming | ✓ |
802.11k Radio Resource Management | ✓ |
Zero-Wait DFS | ✓ |
Advanced Radio Management | ✓ |
Real-Time Spectral Analysis | ✓ |
Passpoint (Hotspot 2.0) | ✓ |
Captive Portal | Custom Branding |
Voucher Authentication | ✓ |
Payment Based Authentication | ✓ |
External Portal Support | ✓ |
Password Authentication | ✓ |
Guest Network Isolation | ✓ |
Private PSK (PPSK) | ✓ |
WiFi Speed Limiting | ✓ |
Client Device Isolation | ✓ |
WiFi Schedules | ✓ |
RADIUS over TLS (RadSec) | ✓ |
Dynamic RADIUS VLAN | ✓ |
Max Power Consumption | 29W |
Supported Voltage Range | 42.5–57V DC |
Networking Interface | (1) 10 GbE RJ45 |
Weight | 800 g (1.8 lb) |
Management | Ethernet |
Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
LEDs | White / Blue |
Channel Bandwidths | HT/VHT/HE/EHT 20–320 MHz |
NDAA Compliant | ✓ |
Certifications | CE, FCC, IC |
Operating Frequency (US/CA – 2.4 GHz) | 2400–2472 MHz |
Operating Frequency (U-NII-1) | 5150–5250 MHz |
Operating Frequency (U-NII-2A) | 5250–5350 MHz |
Operating Frequency (U-NII-2C) | 5470–5725 MHz |
Operating Frequency (U-NII-3) | 5725–5850 MHz |
Operating Frequency (U-NII-5–8) | 5925–7125 MHz |
Operating Frequency (Worldwide 2.4 GHz) | 2400–2483.5 MHz |
Operating Frequency (Worldwide 5 GHz) | 5150–5725 MHz |
Operating Frequency (Worldwide 6 GHz) | 5925–7125 MHz |
Operating Temperature | -30 to 40°C (-22 to 104°F) |
Operating Humidity | 5–95% non-condensing |
Controller Requirement | UniFi Network |
Firmware (White) | 9.0.114+ |
Firmware (Black) | 9.1.120+ |
