Ubiquiti U7-Pro Tri-Band Network Access Point, 2.4 GHz / 5GHz / 6GHz, Up to 9.3Gbps Speed, Wi-Fi 7 (802.11be), 300+ Connected Devices, WPA3 Security, 2* 2.5G ETH PoE+, 5-Packs, White | U7-Pro-5

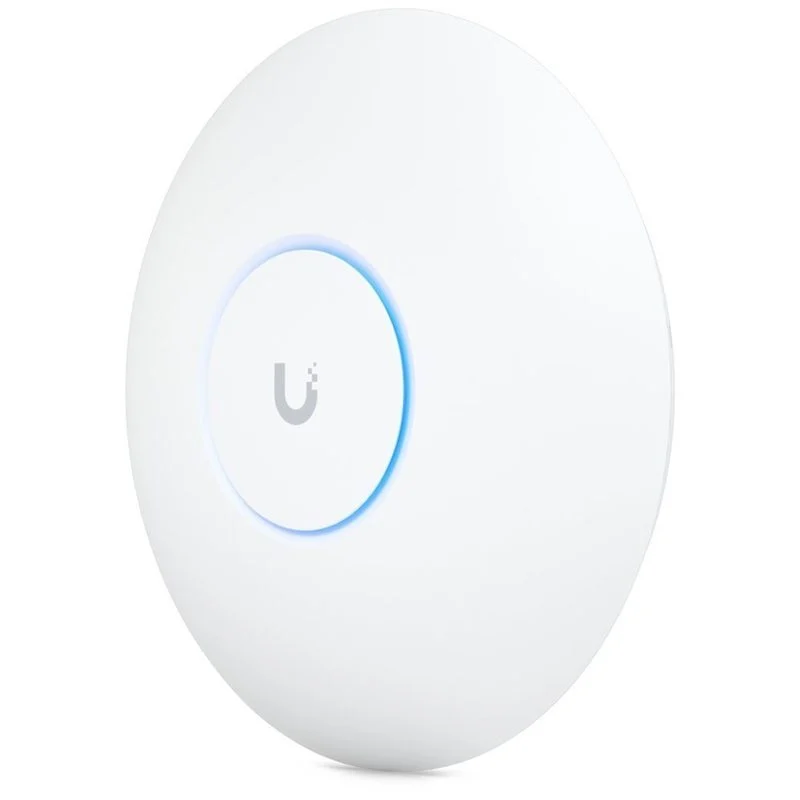

Ubiquiti UniFi U7 Pro
The Ubiquiti UniFi U7 Pro is a powerful access point that features Wi-Fi 7 AP with support for 2.4, 5 and 6 GHz frequency bands and a transfer speed of up to 5765 Mbps for 6 GHz, 4.3 Gbps for 5 GHz and 688 Mbps for 2.4 GHz.
Designed specifically for professional and enterprise deployments, the U7 Pro is ideal for applications requiring flawless Wi-Fi services in demanding, large-scale environments.
Supports PoE+ power supply.
The UniFi U7 Pro is a beautifully designed indoor hotspot solution using the 802.11a/b/g/n/ac/ax/be standard. It is equipped with a 2×2 MIMO antenna system in the form of integrated antennas with a gain of 4 dBi/ 6 dBi/ 5.8 dBi (2.4 GHz/ 5 GHz/ 6 GHz).

Key features

• Wi-Fi 7 with 6GHz support

• 6 data streams

• coverage 140 m2

• WPA3 encryption

• connection for more than 300 devices at once

• power supply via PoE+ (802.3at)

• 2.5GbE Uplink

Technical parameters
Network interface:

• 1x 2.5GbE RJ-45 LAN port

• Gigabit LAN: Yes

Management interface: Ethernet
Wireless frequencies: 2.4GHz + 5GHz + 6 GHz (triple band)
WiFi standards: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Encryption: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Advanced QoS: speed limits per user
Antenna type: integrated 3-band antenna
LEDs: white/blue

Max. transmitting power:

• 2.4GHz - 23dBm

• 5GHz - 26dBm

• 6GHz - 23dBm

OUTSIDE:

• 2.4 GHz - 2 x 2 (DL/UL MU-MIMO)

• 5 GHz - 2 x 2 (DL/UL MU-MIMO)

• 6 GHz - 2 x 2 (DL/UL MU-MIMO)

Max data rate:

• 2.4GHz - 688Mbps (BW40)

• 5GHz - 4.3Gbps (BW240)

• 6GHz - 5.7Gbps (BW320)

Antenna gain:

• 2.4GHz - 4dBi

• 5GHz - 6dBi

• 6GHz - 5.8dBi

Power supply:

• Power supply method: active PoE+ (802.3at)

• Power supply: UniFi PoE switch

• Supported voltage range: 44-57V DC

Max power consumption: 21 W

Dimensions: (mm) 206 × 206 × 46
Weight: (g) 680
Color: white
Case material: polycarbonate, metal
Ambient operating temperature [°C]: -30 to 40
Ambient operating humidity: 5 to 95% non-condensing
Design: wall/ceiling
Use: indoor
Buttons: Reset

Software
Operating mode: Access Point
IPv6 support: Transparent (bridge mode)
Default IP address: Dynamic from DHCP
Default name and password: Ubiquiti/Ubiquiti

• management using the UniFi Network app: version 8.0.26 and later

• UniFi OS: version 3.2 and later

UniFi devices can be configured and managed using the UniFi Network application, which is pre-installed on UniFi OS consoles (UniFi Dream Machine, Dream Router, Dream Wall, Express, Cloud Gateway Ultra, etc.). Alternatively, the freely available UniFi Network Server software is available for installation on your own computer or server (Windows, MacOS, Linux). The UniFi Network Server software is constantly being improved, so we recommend always using the latest version, which you can download from the Ubiquiti website in the Download section.

Package contents:

• devices in a pack of five

• wall/ceiling mounting kit

• mounting material (screws, etc.)

• PoE adapter not included
