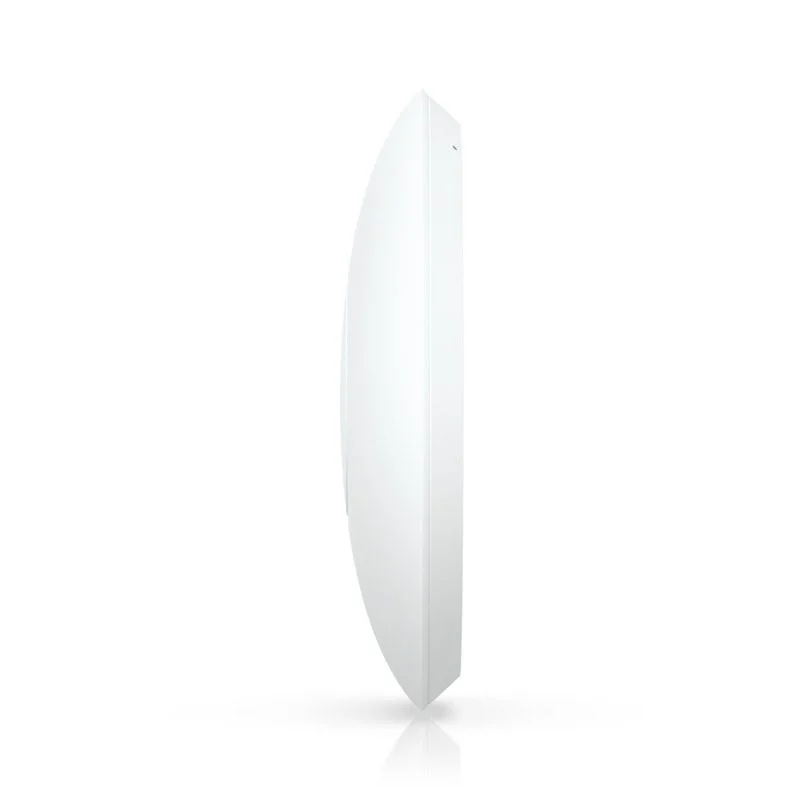

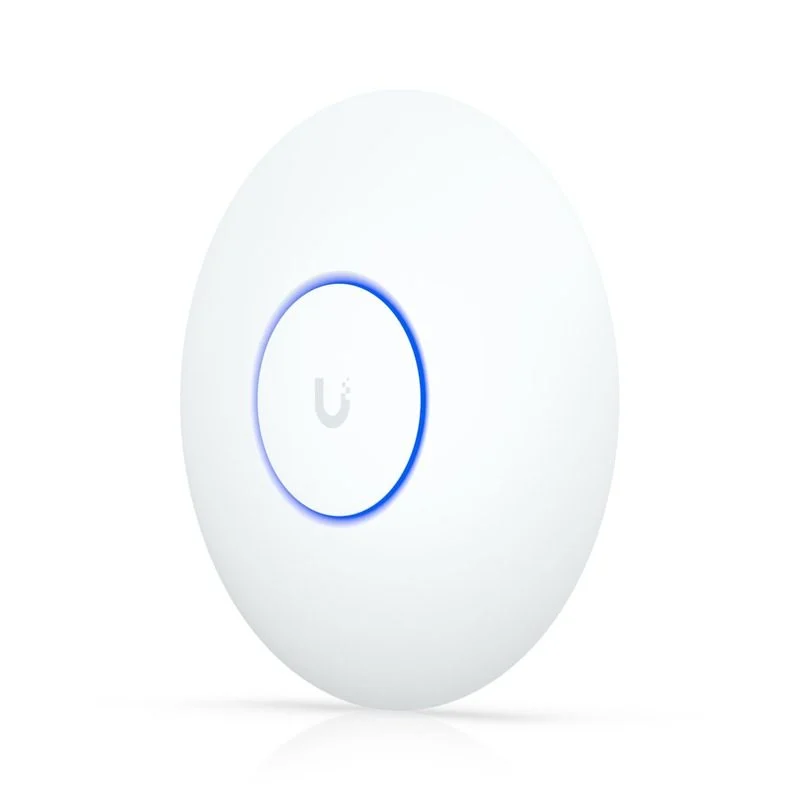

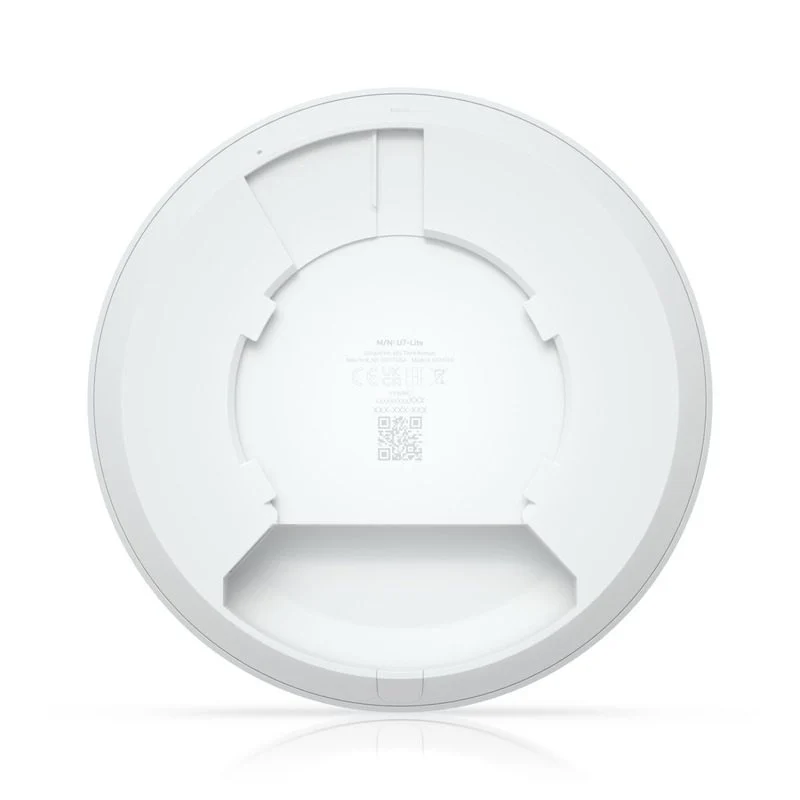

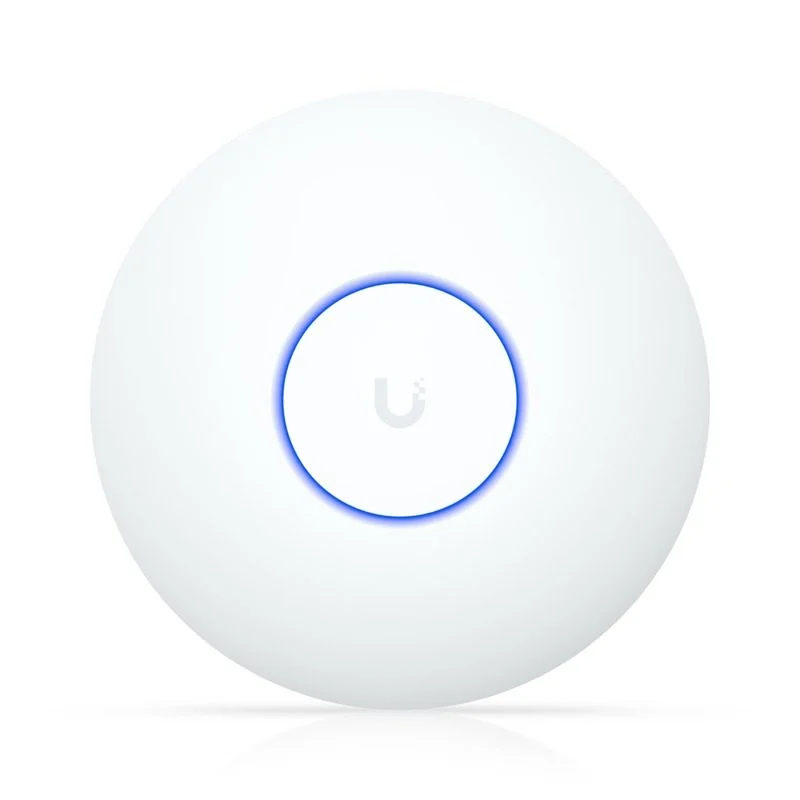

Ubiquiti U7 Long-Range Access Point, Up to WiFi 7 Standard, 5 Spatial Streams, 300+ Max Client Count, Up to 4.3 Gbps Data Rates, 2.5 GbE Uplink, White | U7-LR

Overview Dimensions Ø175.7 × 43 mm (Ø6.9 × 1.7")

WiFi Standard WiFi 7

Spatial Streams 5

Coverage Area 160 m² (1,750 ft²)

Max. Client Count 300+

Uplink 2.5 GbE

Mounting Ceiling, Wall (Plastic Mounting Plate included)

Power Method PoE

Performance

MIMO 5 GHz: 3 × 3 (DL/UL MU-MIMO)
2.4 GHz: 2 × 2 (DL/UL MU-MIMO)

Max. Data Rate 5 GHz: 4.3 Gbps (BW160)
2.4 GHz: 688 Mbps (BW40)

Antenna Gain 5 GHz: 6 dBi
2.4 GHz: 4 dBi

Max. TX Power 5 GHz: 27 dBm
2.4 GHz: 26 dBm

Supported Data Rates802.11be (WiFi 7): 7.3 Mbps – 4.3 Gbps (MCS0–MCS13 NSS1/2/3, EHT 20/40/80/160)
802.11ax (WiFi 6): 7.3 Mbps – 3.6 Gbps (MCS0–MCS11 NSS1/2/3, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps – 2.6 Gbps (MCS0–MCS9 NSS1/2/3, VHT 20/40/80/160)
802.11n: 6.5 Mbps – 450 Mbps (MCS0–MCS23, HT 20/40)

Features

Wireless Meshing Yes

Band Steering Yes

802.11v BSS Transition Management Yes

802.11r Fast Roaming Yes

802.11k Radio Resource Management (RRM) Yes

Advanced Radio Management Yes

Passpoint (Hotspot 2.0) Yes

Captive Hotspot Portal Custom Branding Landing Page

Voucher Authentication Yes

Payment-Based Authentication Yes

External Portal Server Support Yes

Password Authentication Yes

Guest Network Isolation Yes

Private Pre-Shared Key (PPSK) Yes

WiFi Speed Limiting Yes

Client Device Isolation Yes

WiFi Schedules Yes

RADIUS over TLS (RadSec) Yes

Dynamic RADIUS-assigned VLAN Yes

Hardware

Max. Power Consumption 14W

Supported Voltage Range 42.5–57V DC

Networking Interface (1) 2.5 GbE RJ45 port

Weight 448 g (15.8 oz)

Management Ethernet

Enclosure Material Polycarbonate, aluminum alloy

Mount Material Polycarbonate, galvanized steel (SGCC)

LEDs System: White/Blue

Channel Bandwidth HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)

NDAA Compliant Yes

Certifications CE, FCC, IC, Anatel

Ambient Operating Temperature -30 to 50 °C (-22 to 122 °F)

Ambient Operating Humidity 5 – 95% non-condensing

Software Application Requirements UniFi Network, Version 9.1.120 and later

Mobile App iOS™ version 10.20.2 and later
Android™ version 10.21.7 and later
