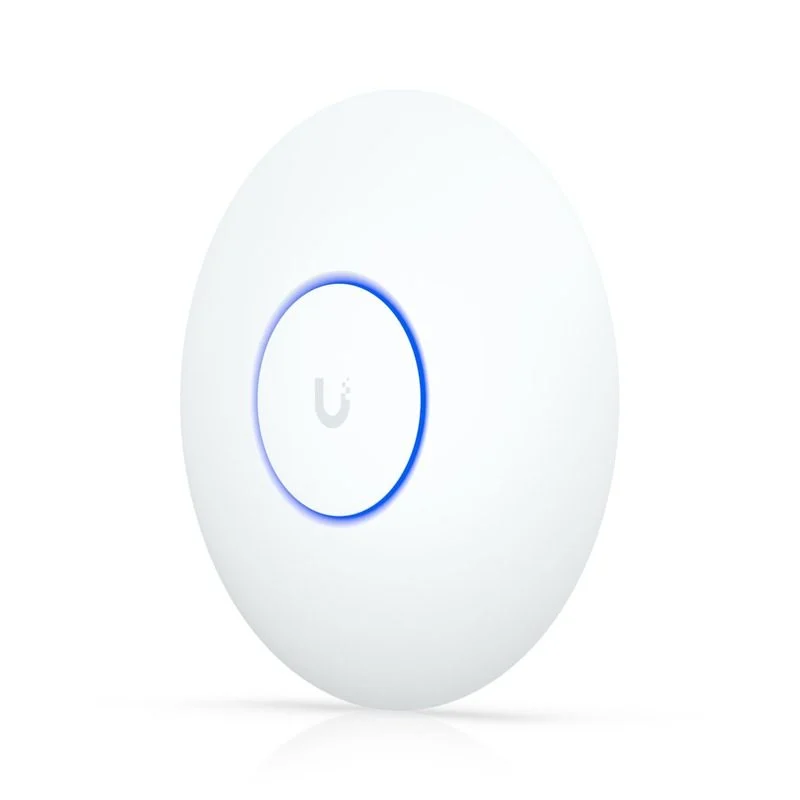

Ubiquiti U7 Lite Access Point, Wi-Fi 7, 5GHz & 2GHz Dual Band, 115m Coverage Area, Wireless Meshing, Band Steering, 4 Spatial Streams, Built-In Antenna, 1x 2.5GbE RJ45 Port, White | U7 Lite - Image 1
1 / 6

Ubiquiti U7 Lite Access Point, Wi-Fi 7, 5GHz & 2GHz Dual Band, 115m Coverage Area, Wireless Meshing, Band Steering, 4 Spatial Streams, Built-In Antenna, 1x 2.5GbE RJ45 Port, White | U7 Lite

Brand: Ubiquiti|Category: Access points|SKU: 11157|Model: U7 Lite
AED 350.00AED 365.004% OFF

You save AED 15

Ubiquiti UniFi U7 Lite is a compact, ceiling/wall-mount WiFi 7 access point designed for homes and offices, offering 4 spatial streams, a 2.5 GbE uplink, PoE power, and support for 200+ clients with coverage up to ~115 m² (1,250 ft²).

Included warranty

1 Year

Secure payment

Your payment is encrypted and processed securely at checkout.

1

Options Available:

Product Description

U7 Lite

Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.

 Specifications



Dimensions

Ø171.5 x 33 mm (Ø6.8 x 1.3")

WiFi Standard

WiFi 7

Spatial Streams

4

Coverage Area

115 m² (1,250 ft²)

Max. Client Count

200+

Uplink

2.5 GbE

Mounting

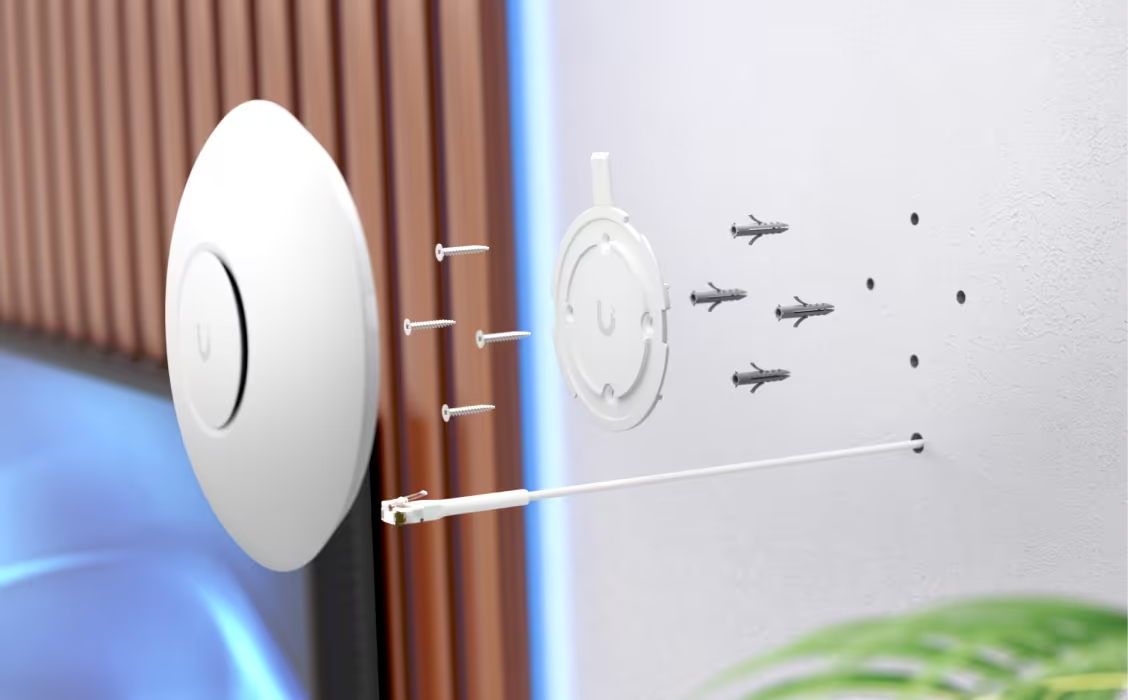

Ceiling, Wall (Lite Mount Included)

Power Method

PoE

Performance



MIMO

5 GHz: 2x2 DL/UL MU-MIMO
2.4 GHz: 2x2 DL/UL MU-MIMO

Max. Data Rate

5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)

Antenna Gain

5 GHz: 5 dBi
2.4 GHz: 4 dBi

Max. TX Power

5 GHz: 24 dBm
2.4 GHz: 23 dBm

Max. BSSIDs

8 per Radio

Supported Data Rates

802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps
802.11n: 6.5 Mbps to 300 Mbps

Features

Wireless Meshing: Yes
Band Steering: Yes
802.11v BSS Transition Management: Yes
802.11r Fast Roaming: Yes
802.11k RRM: Yes
Advanced Radio Management: Yes
Passpoint (Hotspot 2.0): Yes

Captive Hotspot Portal

Custom Branding Landing Page: Yes
Voucher Authentication: Yes
Payment-Based Authentication: Yes
External Portal Server Support: Yes
Password Authentication: Yes
Guest Network Isolation: Yes

Security

Private Pre-Shared Key (PPSK): Yes
WiFi Speed Limiting: Yes
Client Device Isolation: Yes
WiFi Schedules: Yes
RADIUS over TLS (RadSec): Yes
Dynamic RADIUS-assigned VLAN: Yes

Hardware



Max. Power Consumption

13W

Supported Voltage Range

42.5–57V DC

Networking Interface

(1) 2.5 GbE RJ45 port

Weight

313 g (11 oz)

Management

Ethernet

Enclosure Material

UV-stabilized polycarbonate

Mount Material

UV-stabilized polycarbonate, galvanized steel (SGCC)

LEDs

System (White/Blue)

Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)

Certifications

CE, FCC, IC

NDAA Compliant

Yes

Ambient Conditions

Temperature: -30 to 40°C (-22 to 104°F)
Humidity: 5 to 95% noncondensing

Software



Application Requirements

UniFi Network version 9.0.114 and later

UniFi OS App Support

iOS version 10.20.2 and later
Android version 10.21.7 and later
