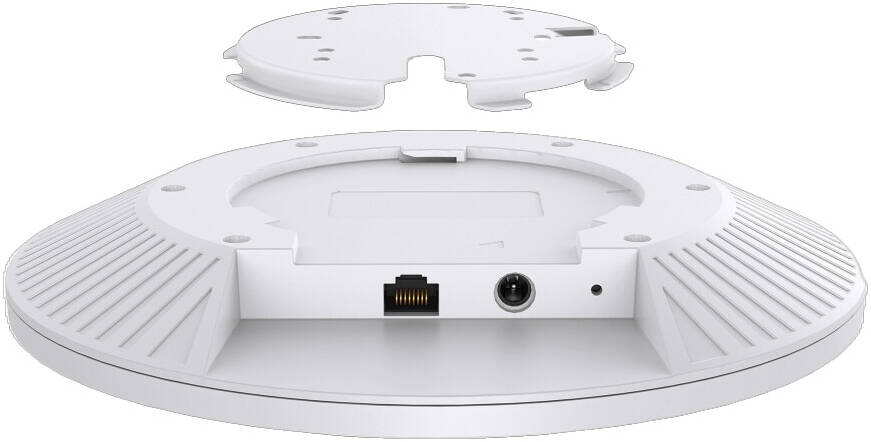

TP-Link BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point, 2.4 GHz 2x 3.0 dBi, 5 GHz 2x 3.0 dBi & 6 GHz 2x 3.0 dBi, 574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz), White | EAP773

HARDWARE FEATURES

Interface

1× 10G Ethernet Port

Button

Reset

Power Supply

802.3bt PoE or 12V/2.5A DC

Power Consumption

Support Smart Power Consumption Management
24.05 W (802.3bt, full functionality)
20.92 W (12/2.5A, full functionality)
22.4 W (802.3at, reduced 6GHz power)
10.1 W (802.3af, radio off, only main chip and LAN working)

Dimensions (W x D x H)

8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)

Antenna Type

2.4 GHz: 2× 3.0 dBi
5 GHz: 2× 3.0 dBi
6 GHz: 2× 3.0 dBi

Bluetooth

1 × 4.0 dBi, Bluetooth 5.2
*Firmware update may be required.

Mounting

Ceiling / Wall Mounting (Kits Included)

WIRELESS FEATURES

Wireless Client Capacity

2 GHz: 128**
5 GHz: 128**
6 GHz: 128**

Wireless Standards

IEEE 802.11 a/b/g/n/ac/ax/be

Frequency

6 GHz, 5 GHz, and 2.4 GHz

Signal Rate

574 Mbps (2.4 GHz) + 2880 Mbps (5 GHz) + 5760 Mbps (6 GHz)†

Wireless Functions

MLO‡
4K-QAM‡
MU-MIMO‡
HE320‡
Mesh△
BBS Coloring‡
OFDMA‡
Load Balance
Band Steering
Beamforming
Airtime Fairness
Multiple SSIDs: 24 (8 on each band)
Wireless Schedule
Reboot Schedule
QoS (WMM)
Rate Limit
Static IP/Dynamic IP
RADIUS Accounting
MAC Authentication

Wireless Security

Captive Portal Authentication△
Access Control
Maximum number of MAC Filter: 4,000
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

< 20 dBm (2.4 GHz, EIRP)
< 23 dBm (5 GHz, band 1 & band 2, EIRP)
< 28 dBm (5 GHz, band 3, EIRP)
< 23 dBm (6 GHz, EIRP)

MANAGEMENT

Omada App

Yes

Centralized Management

Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller

Cloud Access

Yes. Requires OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller.

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

System Logging Local/Remote Syslog

Yes

Web-based Management

Yes

OTHERS

Certification

CE, FCC, RoHS, IC

Package Contents

EAP773
Installation Guide
Ceiling/Wall Mounting Kits
Note: Power Adapter is NOT included.

Environment

Operating Temperature: 0 °C–40 °C (32 °F–104 °F)
Storage Temperature: -40 °C–70 °C (-40 °F–158 °F)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
