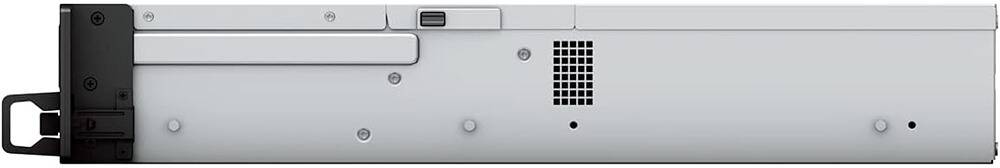

RackStation RS2423+​

Efficient storage for centralized data management

The DiskStation RS2423+ 12-Bay NAS Enclosure from Synology is a versatile and cost-effective storage server for central data storage and sharing, endpoint and server backup, surveillance management, and other business applications. With sequential reads of over 3500 MB/s and sequential writes of over 1700 MB/s, as well as the option to boost I/O speeds through SSD caching, the RS2423+ provides flexible storage with strong built-in data protection capabilities. Powered by Synology's DiskStation Manager (DSM), the RS2423+ can be expanded with 12 additional drive bays, or use the PCIe 3.0 x8/x4 slot to install a 1/10/25GbE networking card.

Key Features

• 12 x 3.5" / 2.5" SATA Drive Bays

• 3.35 GHz AMD Ryzen V1780B 4-Core CPU

• 8GB DDR4 ECC RAM

• 1 x 10GbE Port | 2 x 1GbE Ports

• 2 x USB-A 3.2 Gen 1 Ports

• 1 x Mini-SAS HD Expansion Port

• RAID 0, 1, 5, 6, 10, Hybrid, Basic, JBOD

• PCIe 3.0 x8/x4 Expansion Slot

• Single Power Supply

• Synology DSM Operating System

  Computing
  CPU	3.35 to 3.6 GHz Quad-Core
  Processor	AMD Ryzen V1708B
  Total Installed Memory	8 GB ECC DDR4
  Maximum Memory Capacity	32 GB
  General
  Number of Bays	12 x 2.5"/3.5"
  Inputs/Outputs	1 x RJ45 10GbE
  	2 x RJ45 Gigabit Ethernet
  	2 x USB-A 3.0 / 3.1/3.2 Gen 1
  	1 x Mini SAS (Unspecified)
  Compatible Drive Interface	SATA (Unspecified Version)
  Media Card Slots	No
  Form Factor	Rackmount (2 RU)
  RAID	RAID 0, 1, 10, 5, 6, JBOD, Synology Hybrid
  Hot-Swap Support	Yes
  PCI Expansion	1 x PCIe 3.0 x8 (x4 Electrical)
  Wake on LAN	Yes
  Link Aggregation	Yes
  Networking
  Supported Protocols	AFP, CalDAV, FTP, L2TP, NFS, OpenVPN, PPTP, SMB,
  	SNMP, SSH, Telnet, WebDAV, iSCSI
  Max Concurrent Connections	2000
  Max Folders	512
  Max Groups	256
  Max User Accounts	2048
  Software
  Installed Operating System	Synology DiskStation Manager
  Supported File Systems	Internal: BTRFS, EXT4
  	External: BTRFS, EXT3, EXT4, FAT32, HFS+, NTFS,
  	exFAT
  Mobile App Compatible	Yes
  Supported Browsers	Chrome, Edge, Firefox, Safari
  Supported Languages	Brazilian Portuguese, Czech, Danish, Dutch,
  	English, French, German, Hungarian, Italian,
  	Japanese, Korean, Norwegian, Polish, Portuguese,
  	Russian, Simplified Chinese, Spanish, Swedish,
  	Thai, Traditional Chinese, Turkish
  Electrical
  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Power Source	Internal Power Supply
  PSU Wattage	1
  Environmental
  Operating Temperature	32 to 95°F / 0 to 35°C
  Operating Humidity	8 to 80%
  Operating Altitude	0.0 to 16,404' / 0 to 5000 m
  Storage Temperature	-5 to 140°F / -20 to 60°C
  Storage Humidity	5 to 95%
