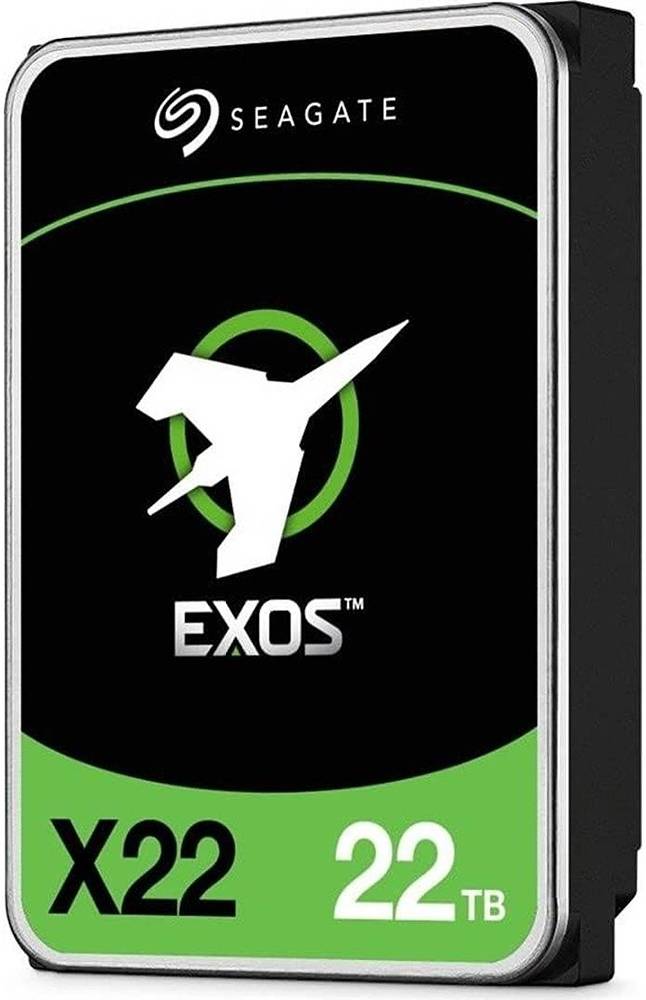

Seagate Exos X22 SATA 6Gb/s 3.5" Enterprise Hard Drive, 22TB Capacity, 7200 RPM Spindle Speed, 512MB Cache, 2,500,000 Hours MTBF, 285MB/s 272MiB/s Transfer Rate | ST22000NM001E

Specifications

SATA 6Gb/s

Capacity

22TB

Standard Model FastFormat™ (512e/4Kn)

ST22000NM001E

SED Model FastFormat (512e/4Kn)

ST22000NM002E

SED-FIPS FastFormat (512e/4Kn)

—

Features

Helium Sealed-Drive Design

Yes

Conventional Magnetic Recording (CMR)

Yes

Protection Information (T10 DIF)

-

Super Parity

Yes

Low Halogen

Yes

PowerChoice™ Idle Power Technology

Yes

PowerBalance™ Power/Performance Technology

Yes

Hot-Plug Support

Yes

Cache, Multisegmented (MB)

512

Organic Solderability Preservative

Yes

RSA 3072 Firmware Verification (SD&D)

Yes

Reliability/Data Integrity

Mean Time Between Failures (MTBF, hours)

2500000hr

Reliability Rating @ Full 24×7 Operation (AFR)

0.35%

Nonrecoverable Read Errors per Bits Read

1 sector per 10E15

Power-On Hours per Year (24×7)

8760

512e Sector Size (Bytes per Sector)

512

4Kn Sector Size (Bytes per Sector)

4096

Performance

Spindle Speed (RPM)

7200RPM

Interface Access Speed (Gb/s)

6.0, 3.0

Max. Sustained Transfer Rate OD (MB/s,MiB/s)

285/272

Random Read/Write 4K QD16 WCD (IOPS)

168/550

Average Latency (ms)

4.16ms

Interface Ports

Single

Rotation Vibration @ 20-1500 Hz (rad/sec²)

12.5

Power Consumption

Idle A (W) Average

5.74W

Max Operating, Random Read/Write 4K/16Q (W)

9.4, 6.4

Power Supply Requirements

+12 V and +5 V

Environmental

Temperature, Operating (°C)

5°C – 60°C

Vibration, Nonoperating: 2 to 500Hz (Grms)

2.27

Shock, Operating 2ms (Read/Write) (Gs)

40Gs

Shock, Nonoperating, 2ms (Gs)

200

Physical

Height (in/mm, max)

1.028in/26.11mm

Width (in/mm, max)

4.010in/101.85mm

Depth (in/mm, max)

5.787in/147.0mm

Weight (gm/lb)

680g/1.499lb
