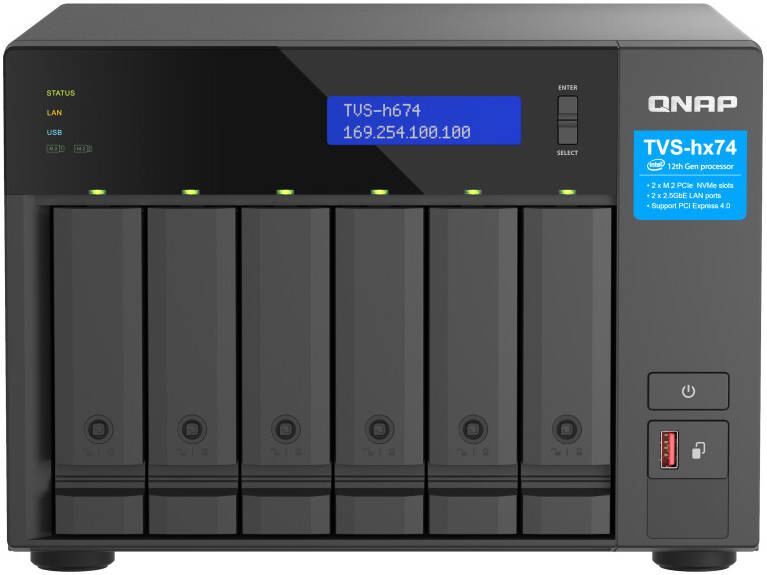

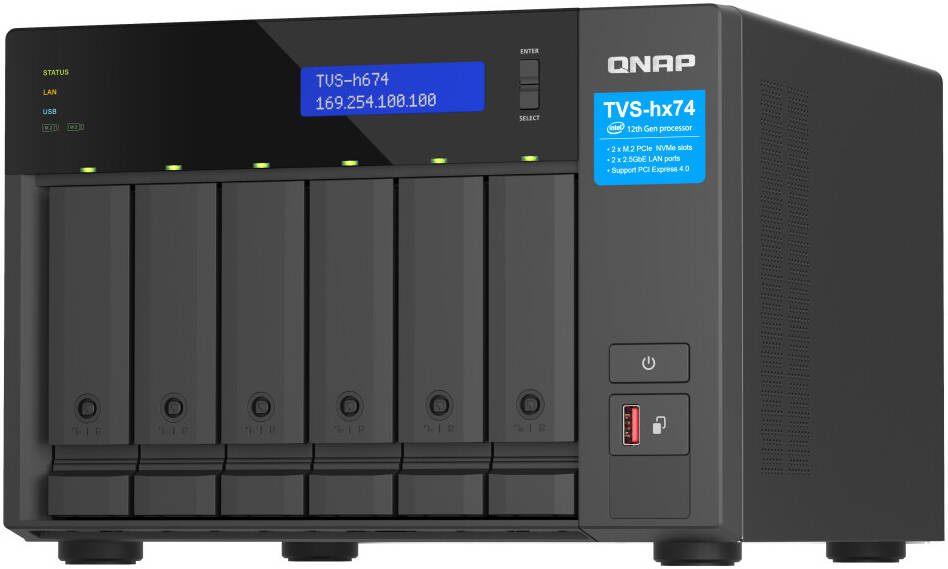

QNAP TVS-H674-I5-32G 6-Bay NAS, Intel Core i5-12400 6-core/12-Thread Processor, (2x 16GB) 32GB SODIMM DDR4 RAM, Intel UHD Graphics 730, Hot-Swappable, 2x M.2 2280 PCIe Gen 4 x4 Slots | TVS-H674-I5-32G

CPU

Intel® Core™ i5-12400 6-core/12-thread Processor, burst up to 4.4 GHz

CPU Architecture

64-bit x86

Graphic Processors

Intel® UHD Graphics 730

Floating Point Unit

Yes

Encryption Engine

 (AES-NI)

Hardware-accelerated Transcoding

Yes

System Memory

32 GB SODIMM DDR4 (2 x 16 GB)

Maximum Memory

64 GB ( 2 x 32 GB)

Memory Slot

2 x SODIMM DDR4

Flash Memory

5GB (Dual boot OS protection)

Drive Bay

6 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility

3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

Hot-swappable

Yes (Not supported M.2 SSD)

M.2 Slot

2 x M.2 2280 PCIe Gen 4 x4 slots

Compatible with NVMe SSD PCIe Gen 3 and above. Please refer to  for compatibility.

SSD Cache Acceleration Support

Yes

GPU pass-through

Yes

2.5 Gigabit Ethernet Port (2.5G/1G/100M)

2 (2.5G/1G/100M/10M)

5 Gigabit Ethernet Port (5G/2.5G/1G/100M)

Optional via PCIe expansion card

10 Gigabit Ethernet Port

Optional via PCIe expansion card

Wake on LAN (WOL)

Yes

Jumbo Frame

Yes

PCIe Slot

2
Slot 1: PCIe Gen 4 x16
Slot 2: PCIe Gen 4 x4

Card dimensions for PCIe slot 1~Slot 2：185 x 111.15 x 18.76 mm / 7.28 x 4.38 x 0.74 inches.
Wider cards can be installed if the next PCIe slot will not be used.

USB 3.2 Gen 2 (10Gbps) Port

1 x Type-C USB 3.2 Gen 2 10Gbps
2 x Type-A USB 3.2 Gen 2 10Gbps

HDMI™ Output

1, HDMI™ 1.4b (up to 4096 x 2160 @ 30Hz)

Form Factor

Tower

LED Indicators

HDD 1-6, Status, LAN, USB port, M.2 port

LCD Display/ Button

Yes

Buttons

Power, Reset, USB Copy

Dimensions (HxWxD)

180.2 × 264.3 × 279.6 mm

Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)

Weight (Net)

6.32 kg

Weight (Gross)

7.89 kg

Operating Temperature

0 - 40 °C (32°F - 104°F)

Storage Temperature

-20 - 70°C (-4°F - 158°F)

Relative Humidity

5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit

250W, 100-240V

Power Consumption: Disk Standby Mode

39.911 W

Power Consumption: Operating Mode, Typical

79.363 W

Tested fully populated with WD10EFRX hard drives.

Fan

System fan: 2 x 92mm, 12VDC
CPU fan: 1 x 60mm, 12VDC

System Warning

Buzzer

Kensington Security Slot

Yes

Max. Number of Concurrent Connections (CIFS) - with Max. Memory

2500
