QNAP TS-264 2-Bay NAS, Intel Celeron N5095 4-core/4-thread Processor, 8 GB SODIMM DDR4 RAM, Intel UHD Graphics, 2 x M.2 2280 PCIe Gen 3 x1, Hot-Swappable, Hardware Transcoding | TS-264-8G

CPU & Memory

CPU

Intel® Celeron® N5095 4-core/4-thread, burst up to 2.9 GHz

CPU Architecture

64-bit x86

Graphics Processor

Intel® UHD Graphics

Floating Point Unit

Yes

Encryption Engine

Yes (AES-NI)

Hardware-accelerated Transcoding

Yes

System Memory

8 GB SODIMM DDR4 (1 × 8 GB) – Since 2024/01

Maximum Memory

16 GB (2 × 8 GB)

Memory Slots

2 × SODIMM DDR4

Flash Memory

4 GB (Dual boot OS protection)

Storage

Drive Bays

2 × 3.5" SATA 6Gb/s

Drive Compatibility

3.5" SATA HDD, 2.5" SATA SSD

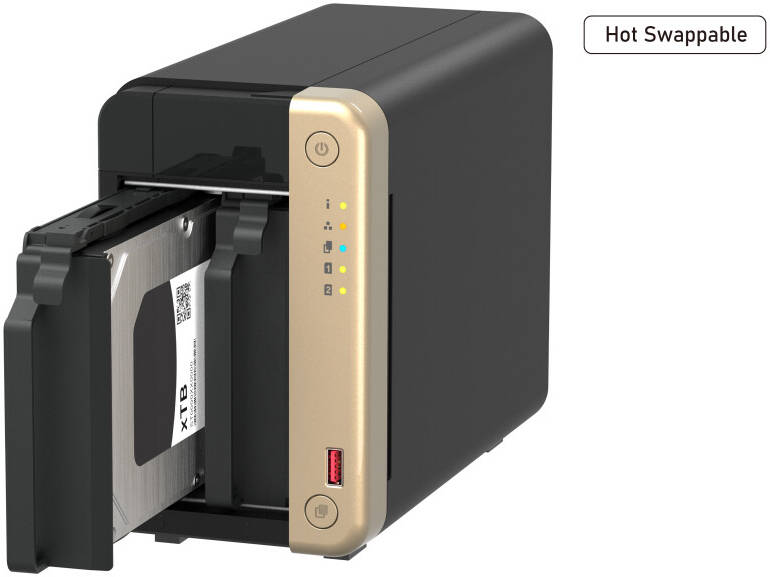

Hot-swappable

Yes (M.2 SSD not supported)

M.2 Slots

2 × M.2 2280 PCIe Gen 3 x1

M.2 Heatsink Size Limit

SSD Cache Acceleration

Supported

Network

2.5GbE Ports (2.5G/1G/100M/10M)

2

5GbE Port

Optional via PCIe card

10GbE Port

Optional via PCIe card

Wake on LAN (WOL)

Yes

Jumbo Frame

Yes

PCIe Slot

1 × PCIe Gen 3 x2

PCIe Card Dimensions

190 × 68.9 × 18.76 mm

Connectivity

USB 2.0 Ports

2

USB 3.2 Gen 2 Ports (10Gbps)

2 × Type-A

HDMI Output

1 × HDMI 2.1 (up to 4096 × 2160 @ 60Hz)

IR Sensor

Yes (Optional RM-IR004 remote)

Physical & Design

Form Factor

Tower

LED Indicators

Power/Status, LAN, USB, HDD1-2

Buttons

Power, USB Copy, Reset

Dimensions (HxWxD)

165 × 105 × 226.5 mm (excluding foot pad)

Net Weight

1.55 kg

Gross Weight

2.61 kg

Environmental

Operating Temperature

0 – 40°C

Storage Temperature

–20 – 70°C

Relative Humidity

5–95% RH non-condensing, wet bulb 27°C

Power

Power Supply

60W adapter, 100–240V

Power Consumption – Standby

18.288 W

Power Consumption – Typical

29.086 W

Test Conditions

Drives fully populated

Fan

1 × 70mm, 12VDC

System Warning

Buzzer

Kensington Security Slot

Yes

Other

Max CIFS Concurrent Connections

1500
