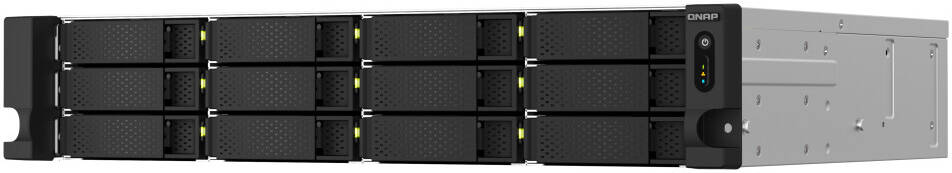

Qnap TS-1264U-RP-8G NAS Server, 2U Rackmount, Intel Celeron N5095, 8GB DDR4 Memory, 4GB Flash Memory, 12x 3.5" SATA 6Gb/s, 3Gb/s Drive Bay, Intel UHD Graphics | TS-1264U-RP-8G

CPU

Intel® Celeron® N5095, 4-core/4-thread, burst up to 2.9 GHz

CPU Architecture

64-bit x86

Graphics Processor

Intel® UHD Graphics

Encryption Engine

AES-NI

System Memory

4 GB SODIMM DDR4 (1 x 4 GB)

Maximum Memory

16 GB (2 x 8 GB)

Memory Slots

2 x SODIMM DDR4

Flash Memory

4GB (Dual boot OS protection)

Drive Bays

12 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility

3.5-inch HDDs, 2.5-inch SSDs, hot-swappable

M.2 Slot

Optional via PCIe adapter

Ethernet Ports

2 x 2.5 Gigabit Ethernet (2.5G/1G/100M/10M); Optional 5G or 10G via PCIe expansion card

Wake on LAN (WOL)

Yes

Jumbo Frame

Yes

PCIe Slot

1 x PCIe Gen 3 x2

USB Ports

2 x USB 2.0, 2 x Type-A USB 3.2 Gen2 (10Gbps)

HDMI™ Output

1 x HDMI™ 1.4b

Form Factor

2U Rackmount

LED Indicators

HDD 1-12, Status, LAN, Expansion, Power

Buttons

Power, Reset

Dimensions (HxWxD)

88.6 × 432 × 370.7 mm

Weight (Net)

10.64 kg

Weight (Gross)

14.01 kg

Operating Temperature

0 - 40 °C (32°F - 104°F)

Storage Temperature

-20 - 70°C (-4°F - 158°F)

Relative Humidity

5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

Power Supply Unit

300W (x2), 100-240V

Power Consumption (HDD Sleep)

37.854 W

Power Consumption (Operating)

70.913 W

Fan

2 x 80mm, 12VDC

System Warning

Buzzer

Max Concurrent Connections

1500 (CIFS, with max memory)
