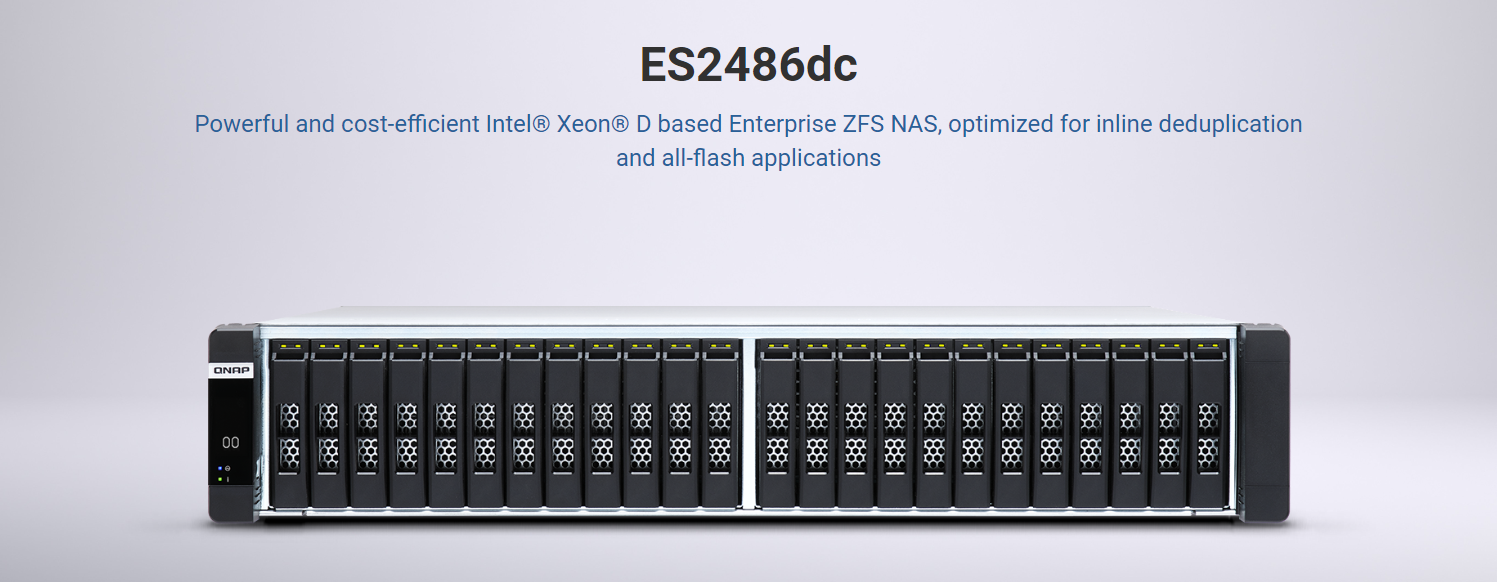

Qnap ES2486dc 24-Bay 2U Rackmount NAS Enclosure, Intel Xeon D-2142IT 8-Core CPU, 64 GB DDR4 System Memory Per Controller, 24x 2.5" Drive Bays, 4x 10GbE SFP+ For Each Controller | ES2486dc-2142IT-128G

ES2486dc-2142IT-128G

The ES2486dc 24-Bay NAS Enclosure from QNAP is their first high-availability NAS with all-flash arrays and dual active controllers. Powered by a 1.9 GHz Intel Xeon D-2142IT 8-Core processor, the ES2486dc supports up to 24 x 2.5" SAS 12 Gb/s or SATA 6 Gb/s SSDs and provides excellent I/O throughputs. Random write performance for all-flash arrays is further driven by the flash optimized QES 2.1.1 operating system that comes preinstalled on the ES2486dc. The QES uses the ZFS file system to support logical volume management; block-based inline data deduplication and inline compression reduce I/O and SSD storage consumption, which significantly extends SSD lifespan with higher price-performance ratio for all-flash storage arrays. Coupled with near-limitless snapshots and SnapSync for data protection, the QES-based ES2486dc fulfills demanding business applications, such as mission-critical file servers, virtualization servers, VDI, medium-sized data center, video streaming, surveillance storage, and efficient file backup and recovery.

Key Features

• 24 x 2.5" SAS-3/SATA III Drive Bays

• 1.9 GHz Intel Xeon D-2142IT 8-Core

• 128GB of DDR4 ECC Registered RAM

• 8 x 10GbE SFP+ | 6 x 1GbE RJ45

• 4 x USB 3.2 Gen 1 Type-A Ports

• 2 x PCIe 3.0 x8 Slots

• RAID 0, 1, 5, 6, 10, 50, 60, and JBOD

• Sequential Reads up to 12,473 MB/s

• Sequential Writes up to 4923 MB/s

• QES 2.1.1 Operating System

  CPU	Intel® Xeon® D-2142IT 8-core 1.90 GHz processor, up to 3.0 GHz
  CPU Architecture	64-bit x86
  Floating Point Unit	Yes
  Encryption Engine	Yes AES-NI
  System Memory	64 GB RDIMM DDR4 ECC (4 x 16 GB) per controller
  Maximum Memory	512 GB (8 x 64GB)
  Memory Slot	8 x R-DIMM/LR-DIMM DDR4
  Flash Memory	4GB (Dual boot OS protection)
  Drive Bay	24 x 2.5-inch SAS 12Gb/s, backward-compatible to SAS 6Gb/s
  Drive Compatibility	2.5-inch SAS/SATA HDD/SSD
  Hot-swappable	Yes
  SSD Cache Acceleration Support	Yes Read cache only
  Cache for Copy To Flash (C2F)	1 per each controller (64GB M.2 SSD)
  Gigabit Ethernet Port (RJ45)	3 for each controller (one for remote management)
  10 Gigabit Ethernet Port	4 x 10GbE SFP+ for each controller
  Wake on LAN (WOL)	Yes
  Jumbo Frame	Yes
  PCIe Slot	2 per controller
  USB 3.2 Gen 1 port	2 per each controller
  Form Factor	2U Rackmount
  LED Indicators	System Power LED, System Status, LCD Status Display
  Buttons	Power, Reset
  Dimensions (HxWxD)	88.3 × 446.2 × 504.1 mm
  Weight (Net)	23.4 kg
  Weight (Gross)	27.4 kg
  Operating Temperature	0 - 40 °C (32°F - 104°F)
  Storage Temperature	-20 - 70°C (-4°F - 158°F)
  Relative Humidity	5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
  Power Supply Unit	Redundant/ Hot Swap Power Vin:90~264VAC;700W
  Power Consumption: Operating Mode, Typical	579.59 W
  Fan	Hot-swappable fan module (606038mm; 16000RPM/12v/2.8A x 3)
  System Warning	Buzzer
  Standard Warranty	5
  Max. Number of Concurrent Connections (CIFS)	10000
  Safety Standard	CE Mark, EN60950, BSMI, VCCI, CB, LVD
