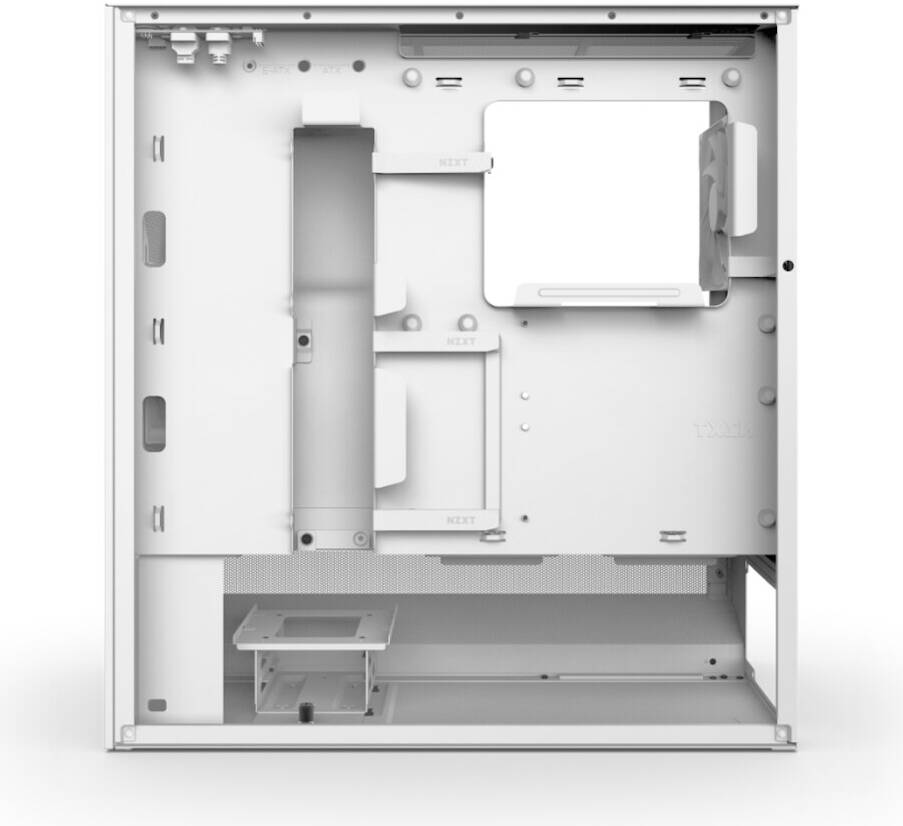

NZXT H5 Flow 2024 Edition Compact Mid-Tower ATX Airflow Case, Pre-Installed 2x F120Q, SGCC Steel, Dark Tinted Tempered Glass Materials, Easy Cable Management, White | CC-H52FW-01
The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
Included warranty
1 Year
Secure payment
Your payment is encrypted and processed securely at checkout.
Additional Warranty
Options Available:
Product Description
Motherboard Support | E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX |
Enclosure Type | Mid-Tower |
Case Material | SGCC Steel, Dark Tinted Tempered Glass (Black) |
Dimensions | |
Height (with feet) | 465 mm / 18.31 in |
Width | 225 mm / 8.86 in |
Depth | 430 mm / 16.93 in |
Weight | 7.63 kg / 16.82 lb |
Compatibility & Clearance | |
CPU Cooler Height | Up to 170 mm |
GPU Length | Up to 410 mm |
PSU Length | Up to 200 mm |
Cable Management | Up to 28.7 mm |
Top Radiator | Up to 240 mm (280 mm with low-profile memory) |
Top Mounted Radiator & Fan Combined Thickness | Up to 55 mm |
Front Ports | |
USB 3.2 Type-A | 1 |
USB 3.2 Type-C | 1 |
Headset Audio Jack | 1 |
Expansion Slots | |
Standard | 7 |
Vertical | 0 |
Drive Bays | |
2.5" | 2 |
3.5" | 1 |
Fan Support | |
Front | 3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included) |
Top | 2 x 120 mm / 2 x 140 mm |
Bottom | 2 x 120 mm |
Rear | 1 x 120 mm (2 x F120Q Case Version included) |
Radiator Support | |
Front | Up to 360 mm |
Top | Up to 240 mm (280 mm with low-profile memory only) |
Fan Specs (F360 RGB Core) | |
Speed | 1,700 ± 200 RPM |
Airflow | 50.1 CFM |
Static | 1.27 mm-H₂O |
Noise | 23.3 dBA |
Fan Connector | 3-pin |
Fan Specs (F120Q) | |
Speed | 1,350 ± 150 RPM |
Airflow | 60.2 CFM |
Static | 1.05 mm-H₂O |
Noise | 24.1 dBA |
Fan Connector | 3-pin |
