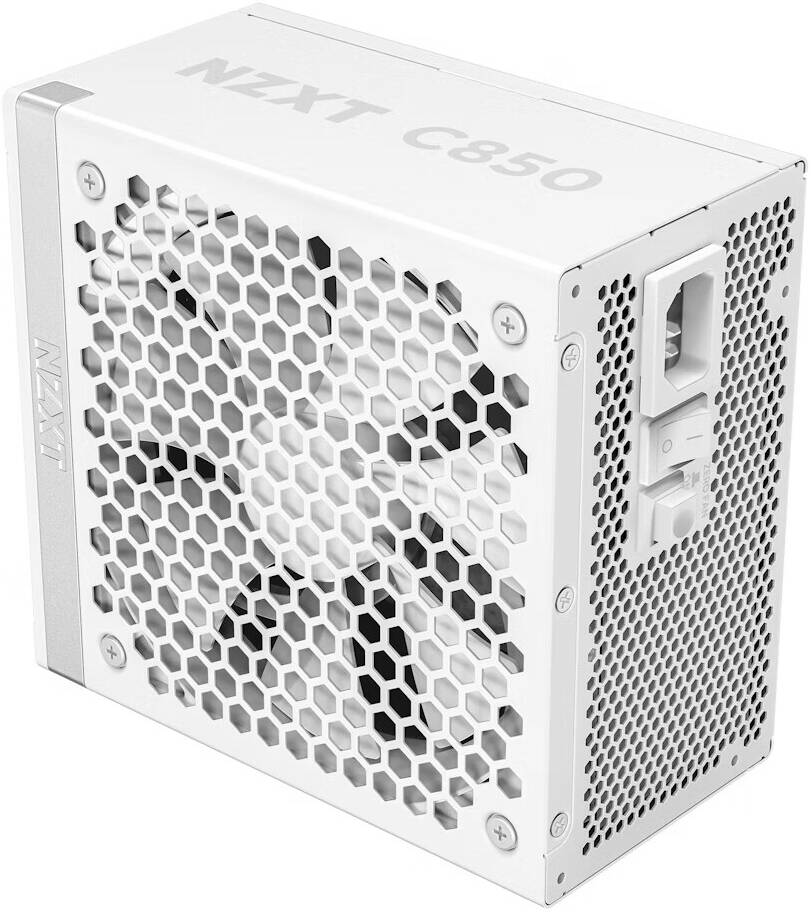

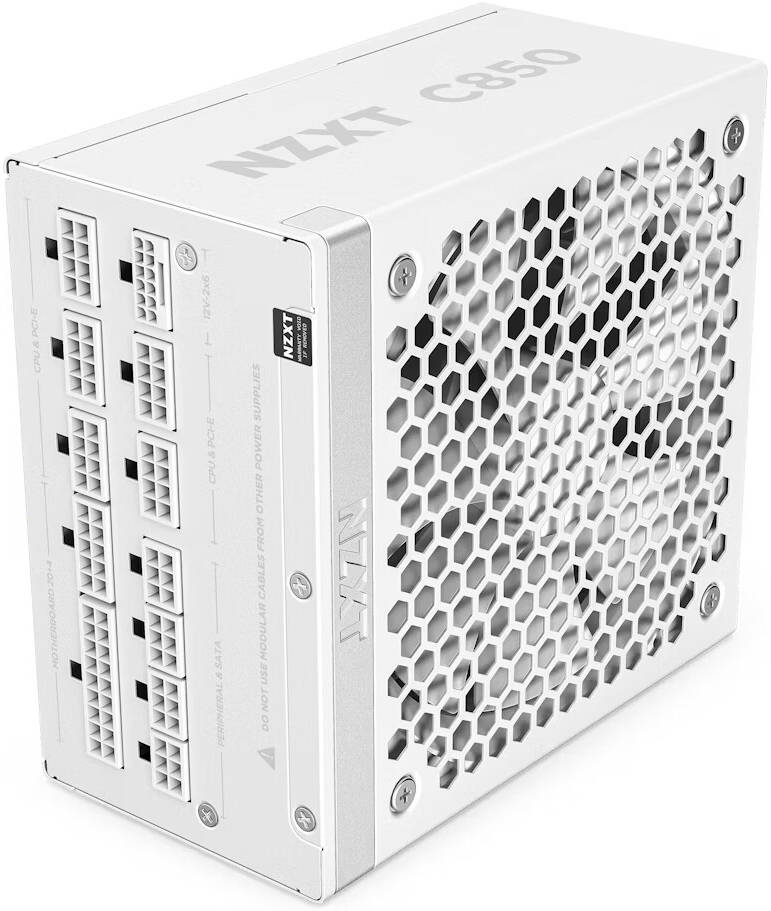

NZXT C850 80 PLUS Gold Fully Modular Power Supply, 850W Power, ATX12V v3.1, Fluid Dynamic Bearing, Japanese Capacitors, Active PF Correction, Matte White | PA-8G2BW-UK
Compliant with the ATX 3.1 standard to fuel high-performance PC components with stability, efficiency, and power spike resistance.
Durable, heat-resistant 12V-2x6 connector pumps up to 600 watts to NVIDIA® GeForce RTX™ 40 Series graphics cards.
135mm fluid dynamic bearing fan with Zero Fan Mode is completely silent when under 50% load.
Included warranty
1 Year
Secure payment
Your payment is encrypted and processed securely at checkout.
Additional Warranty
Product Description
Output Connectors | |
24-pin ATX Power Cable | 1 |
4+4-pin CPU Power Cable | 1 |
8-pin CPU Power Cable | 1 |
6+2-pin PCIe Power Cable | 3 |
16-pin (12+4) 12V-2x6 PCIe Cable | 1 |
SATA Cable | 12 |
Peripherals Cable | 4 |
Cable Specs | |
24-pin ATX Power Cable | 600 mm with nylon sleeving |
4+4-pin CPU Power Cable | 700 mm with nylon sleeving |
8-pin CPU Power Cable | 700 mm with nylon sleeving |
6+2-pin PCIe Power Cable | 650 mm with nylon sleeving |
16-pin (12+4) 12V-2x6 PCIe Cable | 650 mm with nylon sleeving |
SATA Cable | 500 + 150 mm |
Peripherals Cable | 500 + 150 mm |
AC Input Rating | |
100 - 240V AC | 10A-5A, 50Hz-60Hz |
200 - 240V AC | - |
DC Output Rating | |
3.3V / +5V | 22A (120W) |
12V | 70.83A (850W) |
5Vsb | 3A (15W) |
Total | 850W |
Energy Efficiency | Rating: 80 Plus Gold |
10% Loading | 85.8% @ 115V AC |
20% Loading | 89.5% @ 115V AC |
50% Loading | 91.7% @ 115V AC |
100% Loading | 89.2% @ 115V AC |
Electrical Features | |
PF Correction | Active @ 0.99 |
Protections | OVP, UVP, SCP, OTP, OPP, OCP |
Fan Specs | |
Dimensions | 135 x 135 x 25 mm |
Speed | 2300 ± 10% RPM |
Airflow | 93.02 CFM (Min.) |
Noise | 44.5 dBA max |
Bearing | Fluid Dynamic Bearing (FDB) |
Operation | |
MTBF | 100,000 hours |
Temperature | 0 - 50 °C |
Dimensions | |
Width | 150 mm |
Height | 86 mm |
Depth | 160 mm |
