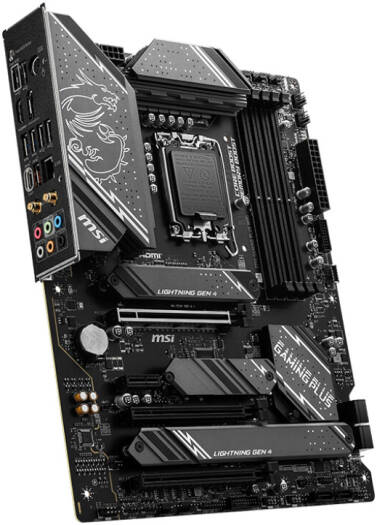

MSI Z790 Gaming Plus Wi-Fi ATX LGA 1700 Motherboard, Intel Z790 Chipset, 4x DDR5 Slot, 256GB Max Memory, 4x M.2 Slot, 3x PCI-E x16 Slot, Intel Wi-Fi 6E & BT 5.3 Connectivity, Black | 911-7E06-061

Chipset

INTEL Z790

CPU

Support Intel® Core™ 14th/13th/12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA 1700

Memory

4x DDR5, Maximum Memory Capacity 256GB, Memory Support 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz

Max. Overclocking Frequency: 1DPC 1R Max speed up to 7200+ MHz, 1DPC 2R Max speed up to 6600+ MHz, 2DPC 1R Max speed up to 6400+ MHz, 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP3.0 OC, Supports Dual-Controller Dual-Channel mode, Supports non-ECC, un-buffered memory

Audio

Realtek® ALC897 Codec, 7.1-Channel High Definition Audio

Storage

4x M.2: M.2_1 (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices

M.2_2 (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices

M.2_3 (From Chipset) supports up to PCIe 4.0 x4/SATA mode, supports 2280/2260/2242 devices

M.2_4 (From Chipset) supports up to PCIe 4.0 x4/SATA mode, supports 2280/2260/2242 devices

6x SATA 6G

LAN

Intel® 2.5Gbps LAN

Onboard Graphics

1x HDMI™ 2.1 HDR, maximum resolution of 4K 60Hz*, 1x DisplayPort 1.4, maximum resolution of 4K 60Hz*

Slot

3x PCI-E x16 slot, 1x PCI-E x1 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

RAID

Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1, RAID 5, and RAID 10 for M.2 NVMe storage devices

USB

4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 4x USB 5Gbps Type A (Front)

1x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Front), 1x USB 20Gbps Type C (Rear)

Wireless LAN & Bluetooth

Intel® Wi-Fi 6E, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz* (160MHz) up to 2.4Gbps, Supports 802.11 a/b/g/n/ac/ax, Supports Bluetooth® 5.3, FIPS, FISMA

Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. * Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Internal IO

1x Power Connector (ATX_PWR), 2x Power Connector (CPU_PWR), 1x CPU Fan, 1x Pump Fan, 6x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x TBT connector (JTBT, supports RTD3), 1x Tuning Controller connector (JDASH), 2x Addressable V2 RGB LED connector (JARGB_V2), 2x RGB LED connector (JRGB), 1x TPM pin header (Support TPM 2.0), 1x USB4 card connector (JTBT_U4_1, supports RTD3), 4x USB 2.0 ports, 4x USB 5Gbps Type A ports, 1x USB 10Gbps Type C ports

LED Feature

4x EZ Debug LED

Back Panel Ports

Keyboard / Mouse, DisplayPort, USB 2.0, 2.5G LAN Port, Wi-Fi/Bluetooth Antenna, Audio Connectors, Flash BIOS Button, USB 2.0, HDMI™ 2.1 Port, USB 3.2 Gen 1 5Gbps Type-A, USB 3.2 Gen 2x2 20Gbps Type-C, USB 3.2 Gen 2 10Gbps Type-A

Operating System

Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB Info

ATX, 243.84mm x 304.8mm
