MSI Pro Z790-P Wifi DDR5 ATX Motherboard, LGA 1700 Socket, Intel Z790 Chipset, 4x DDR5 -128GB Max Memory, Wi-Fi 6E / BT 5.2, 2.5Gbps LAN, M.2 Shield Frozr, Lightning Gen5, 14 Duet Rail | 911-7E06-010

Chipset

Intel Z790

CPU

Support Intel Core 14th/13th/12th Gen, Pentium Gold, Celeron Processors (LGA 1700)

Memory

4x DDR5, Max Memory Capacity: 192GB

Memory Support: 7000+(OC)/6800(OC)/6600(OC)/... MHz

Onboard Graphics

1x HDMI 2.1 (4K 60Hz), 1x DisplayPort (4K 60Hz)

Slot

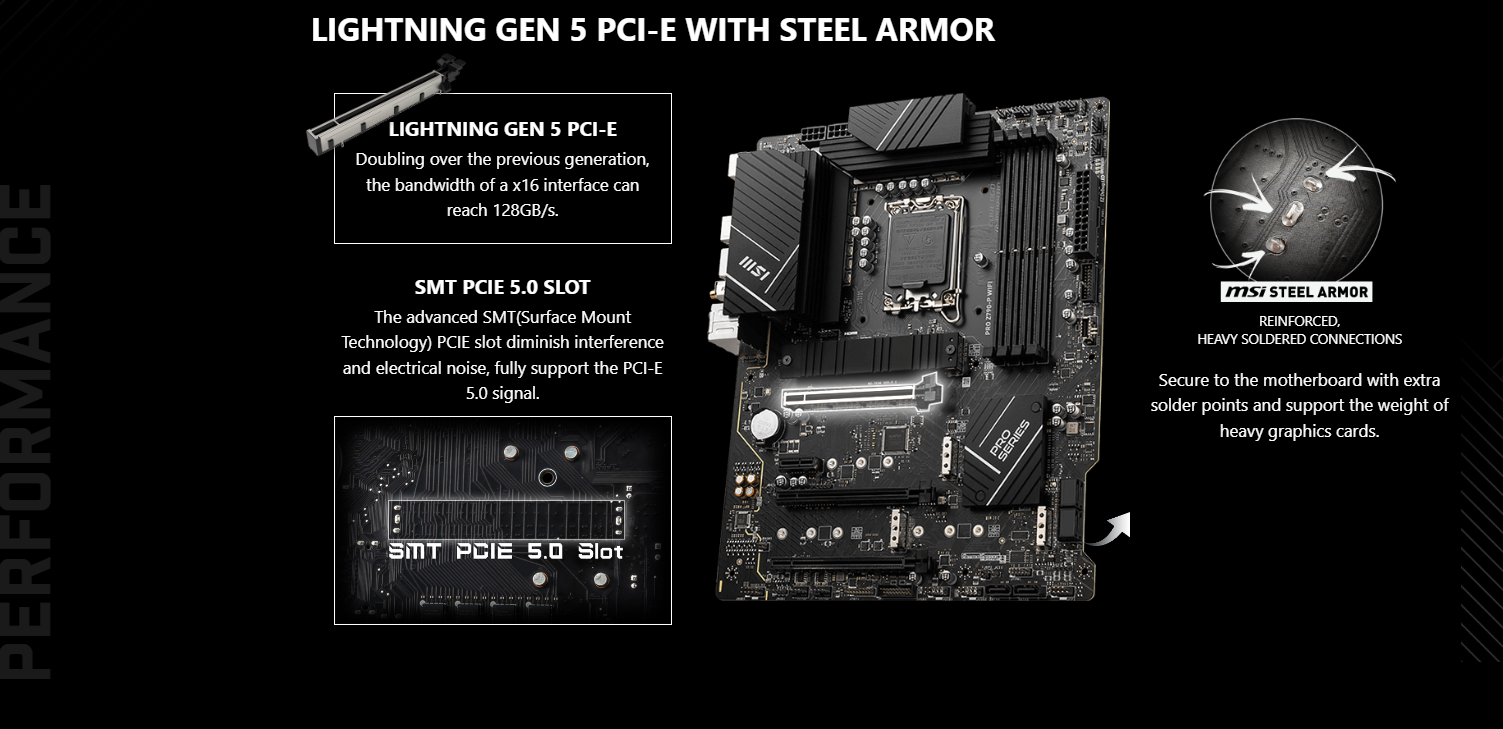

3x PCI-E x16, 1x PCI-E x1

Storage

4x M.2 (PCIe 4.0 x4), 6x SATA 6G

RAID

Supports RAID 0, 1, 5, 10 for SATA and M.2 NVMe

USB

4x USB 2.0 (Rear), 4x USB 2.0 (Front)

2x USB 3.2 Gen1 Type A (Rear), 4x USB 3.2 Gen1 Type A (Front)

1x USB 3.2 Gen2 Type A (Rear), 1x USB 3.2 Gen2 Type C (Front)

1x USB 3.2 Gen2x2 Type C (Rear)

LAN

Intel 2.5Gbps LAN

Wireless LAN & Bluetooth

Intel Wi-Fi 6E, 802.11a/b/g/n/ac/ax, Bluetooth 5.3

Audio

Realtek ALC897 Codec, 7.1-Channel HD Audio

Internal IO

Various connectors including power, fan, USB, RGB, etc.

LED Feature

4x EZ Debug LED

Back Panel Ports

Keyboard/Mouse, DisplayPort, USB 2.0, 2.5G LAN, Wi-Fi/Bluetooth, Audio, Flash BIOS Button, USB 2.0, HDMI, USB 3.2 Gen 1 (Type-A), USB 3.2 Gen 2x2 (Type-C), USB 3.2 Gen 2 (Type-A)
