MSI PRO H810M-B m-ATX LGA 1851 Intel Motherboard, Intel H810 Chipset, 2x DDR5 UDIMM Slots, 128GB Max Memory, 1x PCI-E x16 Slot, Lightning Gen 4 x4 M.2 | H810M-B - Image 1
1 / 5

MSI PRO H810M-B m-ATX LGA 1851 Intel Motherboard, Intel H810 Chipset, 2x DDR5 UDIMM Slots, 128GB Max Memory, 1x PCI-E x16 Slot, Lightning Gen 4 x4 M.2 | H810M-B

Brand: MSI|Category: Motherboards|SKU: 10403|Model: MSI PRO H810M-B m-ATX LGA 1851
AED 450.00

  • Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket

  • Supports DDR5 Memory, Dual Channel DDR5 6400 MT/s (MAX)

  • Core Boost: With premium layout and digital power design to support more cores and provide better performance

  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

  • Frozr Guard: Extended Heatsink and MOSFET thermal pads rated for 7W/mK are built for high performance system and non-stop experience

  • EZ DIY: EZ M.2 Clip II and EZ PCIe Clip II

Included warranty

1 Year

Secure payment

Your payment is encrypted and processed securely at checkout.

Additional Warranty

1

Product Description

Chipset

INTEL H810

CPU

Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851

Memory

2x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support DDR5 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6400 MT/s
• 1DPC 2R Max speed up to 6400 MT/s

Supports Intel® POR Speed and JEDEC Speed
Supports Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit

Onboard Graphics

1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

1x PCI-E x16 slot
2x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)

Audio

Realtek® ALC897 Codec
7.1-Channel High Definition Audio

Storage

1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

*Please refer to the manual for M.2 SSD heatsink restrictions.

USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 10Gbps Type C (Front)

LAN

Realtek® 8125 2.5Gbps LAN

Internal IO

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

LED FEATURE

4x EZ Debug LED
1x EZ Memory Detection LED

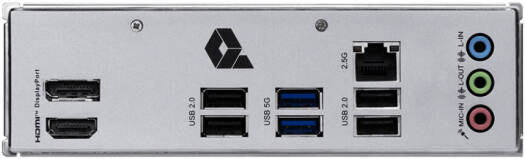

BACK PANEL PORTS

  1. DisplayPort

  2. USB 2.0

  3. USB 5Gbps Type-A

  4. 2.5G LAN

  5. Audio Connectors

  6. HDMITM

  7. USB 2.0

OPERATING SYSTEM

Support for Windows® 11 64-bit

PCB Info

mATX
220mmx243.84mm
