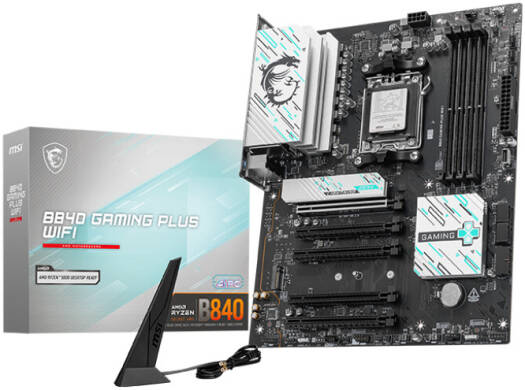

MSI B840 Gaming Plus WiFi AM5 ATX Motherboard, AMD B840 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 5x PCIe x16 Slots, 2x M.2 Slots, WiFi & BT Connectivity | 911-7E57-002 - Image 1
1 / 5

MSI B840 Gaming Plus WiFi AM5 ATX Motherboard, AMD B840 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 5x PCIe x16 Slots, 2x M.2 Slots, WiFi & BT Connectivity | 911-7E57-002

Brand: MSI|Category: Motherboards|SKU: 10651|Model: 911-7E57-002
AED 665.00

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

  • Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC)

  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience

  • High-speed Connectivity: Full-speed Wi-Fi 7 with 2.5G LAN - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission

Included warranty

1 Year

Secure payment

Your payment is encrypted and processed securely at checkout.

Additional Warranty

1

Product Description

Chipset

AMD B840

CPU

Supports AMD Ryzen™ 9000/8000/7000 Series Desktop Processors, Socket AM5

Memory

4x DDR5 UDIMM, Max Capacity: 256GB, DDR5 8000-5600 (OC), 5600-4800 (JEDEC) MT/s, Dual-Channel, Non-ECC, AMD EXPO™, Memory Overclocking

Onboard Graphics

1x HDMI™ 2.1, Max Resolution: 4K 60Hz (processors with integrated graphics only)

Slots

5x PCI-E x16 (varies by processor), PCIe 4.0/3.0 support

Audio

Realtek® ALC897, 7.1-Channel High Definition Audio

Storage

2x M.2 (PCIe 4.0/3.0 support varies by processor), 4x SATA 6G, RAID 0 and 1 for M.2 NVMe storage devices

USB Ports

Rear: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 1x USB 10Gbps Type-C. Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x Type-C

LAN

Realtek® 8125BG 2.5G LAN

Internal IO

Power Connectors, Fan Headers, RGB LED, TPM pin, USB ports, Front Panel Connectors, Debug LEDs

Wireless LAN & Bluetooth

Wi-Fi 7 (up to 5.8Gbps, supports 6GHz), Bluetooth® 5.4 (Windows 11 version 24H2 required for full features)

LED Features

4x EZ Debug LED

Back Panel Ports

Clear CMOS, USB (2.0, 5Gbps, 10Gbps), HDMI™ 2.1, 2.5G LAN, Wi-Fi/Bluetooth, Flash BIOS Button, Audio Connectors

Operating System

Support for Windows® 11 64-bit

Box Content

PCB Info: ATX, 243.84mm x 304.8mm
