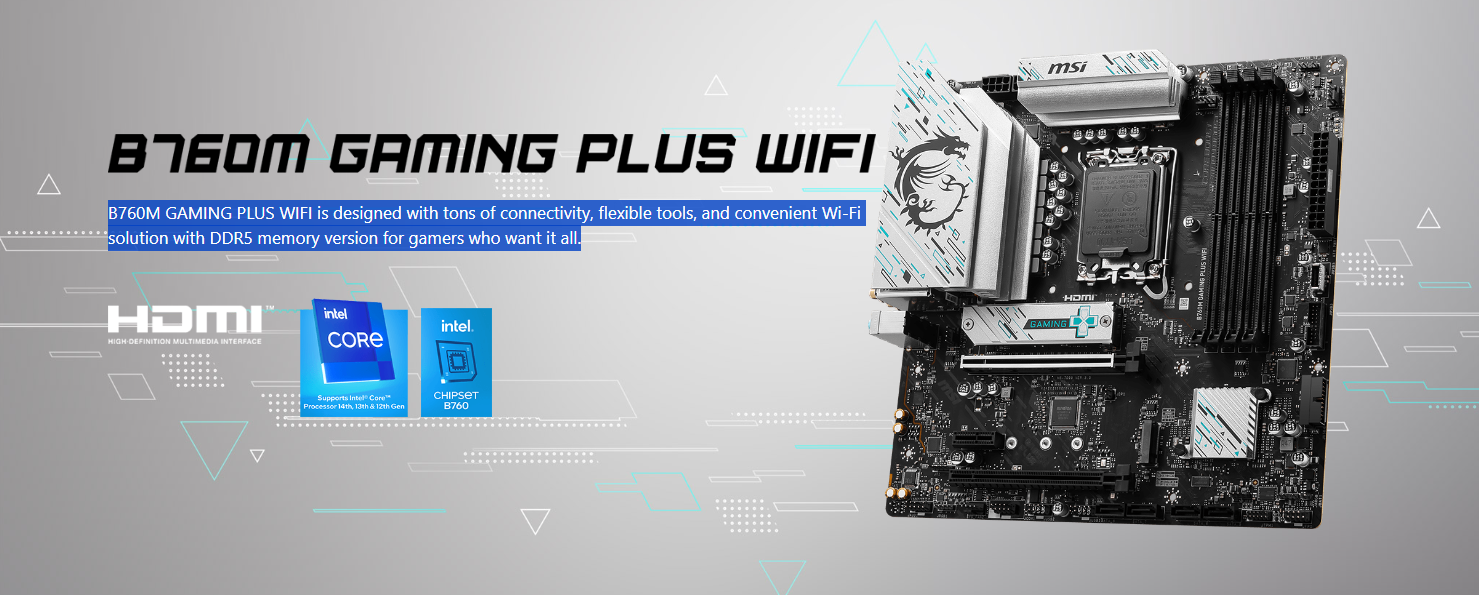

MSI B760M Gaming Plus Wi-Fi LGA 1700 Micro ATX Motherboard, Intel B760 Chipset, 4x DDR5 DIMM Slot, Up to 256GB Max Memory, 2x M.2 SSD Slot, 2x PCIe x16 Slot, Intel Wi-Fi 6E & BT5.3 | 911-7D99-032

Chipset

INTEL B760

CPU

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA 1700

Memory

4x DDR5, Maximum Memory Capacity 256GB

Memory Support

DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. Overclocking Frequency

1DPC 1R Max speed up to 6800+ MHz, 1DPC 2R Max speed up to 6400+ MHz, 2DPC 1R Max speed up to 6000+ MHz, 2DPC 2R Max speed up to 5600+ MHz

Memory Features

Supports Intel® XMP 3.0 OC, Dual-Controller Dual-Channel mode, non-ECC, un-buffered memory

Onboard Graphics

2x HDMI™ (HDMI™ 2.1, max resolution 4K 60Hz), 2x DisplayPort (DP 1.4, max resolution 4K 60Hz)

Slot

2x PCI-E x16 slot, 1x PCI-E x1 slot

PCI-E Gen

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Storage

2x M.2 (M.2_1: PCIe 4.0 x4, M.2_2: PCIe 4.0 x4 / SATA mode), 4x SATA 6G

RAID

Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices

USB

2x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 4x USB 5Gbps Type A (Front), 1x USB 5Gbps Type C (Front), 2x USB 10Gbps Type A (Rear)

LAN

Realtek® RTL8125BG 2.5G LAN

Wireless LAN & Bluetooth

Intel® Wi-Fi 6E (802.11 a/b/g/n/ac/ax, MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz up to 2.4Gbps), Bluetooth® 5.3

Audio

Realtek® ALC897 Codec, 7.1-Channel High Definition Audio

Internal IO

1x Power Connector (ATX_PWR), 2x Power Connector (CPU_PWR), 1x CPU Fan, 1x Pump Fan, 2x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 2x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector (JRGB), 1x TPM pin header (Support TPM 2.0), 4x USB 2.0 ports, 4x USB 5Gbps Type A ports, 1x USB 5Gbps Type C port

LED Feature

4x EZ Debug LED

Back Panel Ports

Keyboard / Mouse, DisplayPort, USB 3.2 Gen 1 5Gbps (Type-A), 2.5G LAN, Wi-Fi / Bluetooth, USB 2.0, HDMI™, USB 3.2 Gen 2 10Gbps (Type-A), Audio Connectors

Operating System

Support for Windows® 11 64-bit, Windows® 10 64-bit

Box Content

MC3200 Rugged Mobile Computer, Battery, Strap, Stylus

PCB Info

mATX, 243.84mm x 243.84mm
