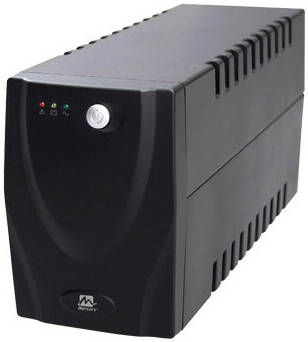

Mercury ELITE 850Pro Line Interactive UPS, 850VA / 510W, Offline, 2x Universal Socket, 9 AH Battery, W/ Schuko Power Cord, Black | UP000351

Input Voltage

220VAC

Input Frequency

50Hz

Input Phase

Single phase

Power Cord

Built-in Cable with Fuse

Input Voltage Range

140–300VAC

Rated Output

850VA

Wave Form

Battery Mode (Simulated Sine Wave), AC Mode (Synchronize with Input)

Rated Voltage

220V

Output Range

220VAC –11% to +17% (Battery Mode)

Rear Output Socket

2 × Universal – Battery Backup

Transfer Time

Typical 4–8 ms

Communication Interface

Nil

Rated Frequency

50Hz

Output Frequency (Line Mode)

Synchronize with the Utility

Output Frequency (Battery Mode)

50Hz ±1Hz

Short Circuit Protection (Line Mode)

Fuse & Firmware Protection

Short Circuit Protection (Battery Mode)

Firmware Protection

Overload Protection (Line Mode)

110% ±5% (fault after 5 min), 120% ±5% (fault immediately)

Overload Protection (Battery Mode)

85% ±5% (shutdown after 5 sec), 100% ±5% (shutdown immediately)

Battery

1 × 12V/9AH

Backup Time (Typical)

15–25 minutes (depending on load)

Charging Current

About 1A at normal mode

Overcharge Protection

Stop charging >14.5V ±0.2V; Recharge <13.5V ±0.5V

Dimensions (mm)

350 × 142 × 213

Master Carton (mm)

365 × 304 × 446

Pack Size per Master Carton

2
