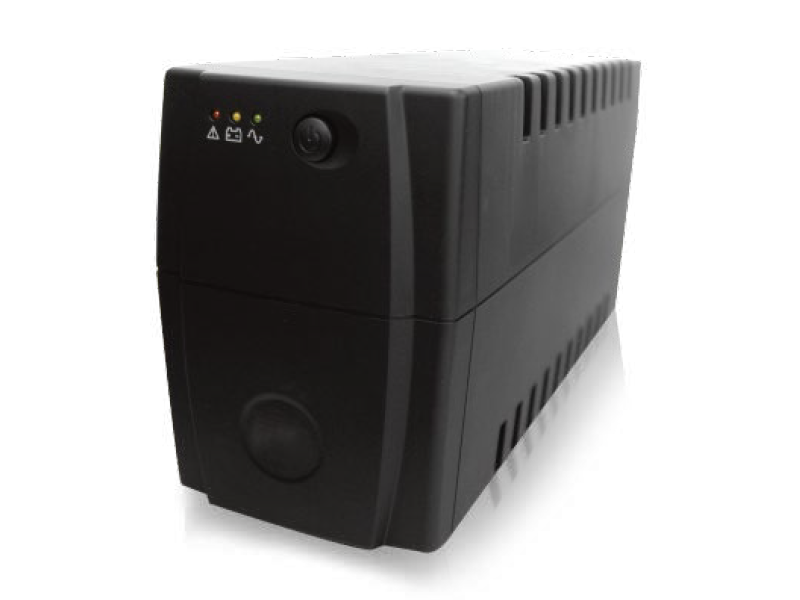

Mercury ELITE 650Pro Line Interactive UPS, 650VA / 390W, Offline, 2x Universal Socket, 7.5 AH Improved Battery, W/ Schuko Power Cord, Black | UP000076

Input Voltage

220VAC

Input Frequency

50Hz

Input Phase

Single phase

Input Socket

With Fuse

Cold Start (0–100% load)

Press the ON/OFF switch

Input Range (220V)

140V – 300V

Rated Output (VA)

650VA

Rated Output (W)

390W

Output Mode

Battery mode (simulated sine wave), AC mode (sine wave)

Power Factor

0.6

Rated Voltage

220V

Output Range

220Vac –7% / +15% (in battery mode)

Rear Output Socket

2 × Universal – Battery backup

Transfer Time

Typical 4–8 ms

Communication Interface

NIL

Rated Frequency

50Hz

Output Frequency (Line Mode)

Synchronize with the Utility

Output Frequency (Battery Mode)

50 Hz ±1Hz

Short Circuit Protection

Line Mode: Fuse & firmware protection; Battery Mode: Software controlled

Overload Protection (Line Mode)

110% ±5% (fault after 5 min); 120% ±5% (fault immediately)

Overload Protection (Battery)

110% ±5% (shutdown after 5 min); 120% ±5% (shutdown immediately)

Battery

12V / 8.2AH × 1

Backup Time (Typical)

10–18 minutes (depending on load)

Charge Current

About 1A at normal mode

Overcharge Protection

Stop charging >14.5V ±0.2V; Recharge <13.5V ±0.5V

Weight

5.6 kg ±0.3 kg

Dimensions (W × D × H)

390 × 145 × 220 mm
