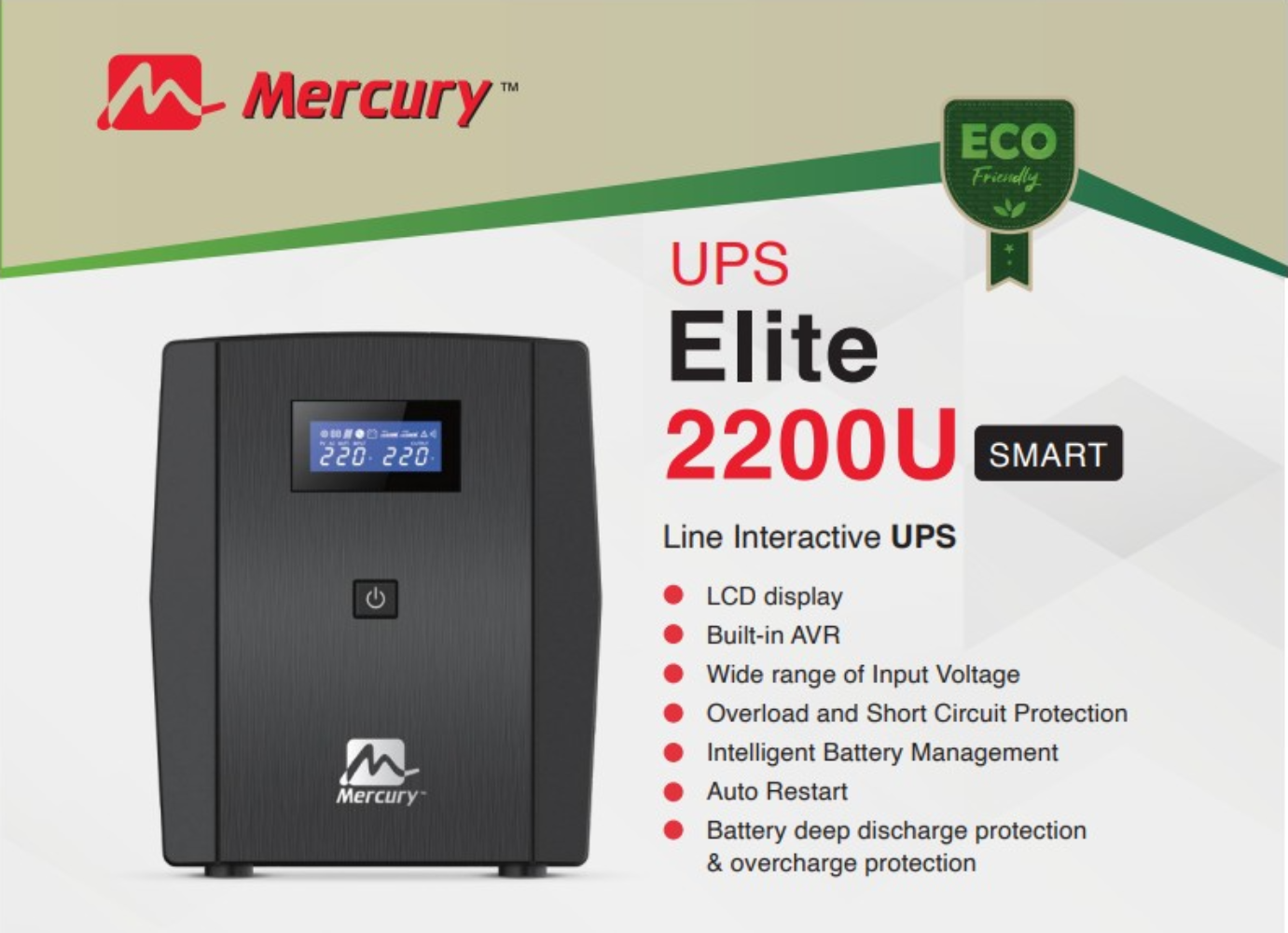

Mercury Elite 2200 Line Interactive Smart UPS, 2200VA/1320W, Offline, LCD Version, With USB Port, 4X Universal Socket, 2X 9AH Battery, W/ Schuko PC, Black | UP000422 - Image 1
1 / 2

Mercury Elite 2200 Line Interactive Smart UPS, 2200VA/1320W, Offline, LCD Version, With USB Port, 4X Universal Socket, 2X 9AH Battery, W/ Schuko PC, Black | UP000422

Brand: Mercury|Category: UPS|SKU: 12362|Model: Elite 2200
AED 509.00

  • LCD Display

  • Built-in AVR

  • Wide Range of input Voltage

  • Overload and Short Circuit Protection

  • Intelligent Battery Management

  • Auto Restart

  • Battery Deep discharge Protection & Overcharge Protection

Included warranty

1 Year

Secure payment

Your payment is encrypted and processed securely at checkout.

Additional Warranty

1

Product Description

Elite 2200

Specifications



Capacity

2200VA / 1320W

Power Factor (PF)

0.6

Input



Nominal Voltage

220 VAC

Voltage Range

140-300VAC (Double Boost)

Frequency Range

50/60Hz (Auto Sensing)

Input Type

Schuko Power Cord

Input Breaker

Yes

Output



Output Voltage

220 VAC

Boost Ratio

1.2 / 1.4

Buck Ratio

0.85

Output Voltage Range (Battery Mode)

±10%

Frequency Range (Battery Mode)

50/60Hz ±1%

Transfer Time

4ms Typical

Waveform (Battery Mode)

Simulated Sine-wave

Outlet Type

UN × 4

Full Protection

Overload, Short Circuit, Over-discharge, Overcharge

Line Mode Overload

>110%±10% fault after 1 min alarm; >120%±10% fault immediately

Battery Mode Overload

>110%±10% fault after 1 min alarm; >120%±10% fault immediately

Battery



Battery Voltage

24V

Battery Type & Number

12V/9AH × 2

Typical Backup Time

60 mins @ 1 PC load with 15" monitor

Typical Recharge Time

8 hours to 90% capacity

Indicators



Display

LCD

Alarm

Battery Mode: Every 30s; Low Battery: Every 2s; Overload: Every 0.5s; Fault: Continuous

Physical



Dimensions (W × H × D)

148 × 178 × 298 mm

Net Weight

10.8 kg

Interface



USB Port

Yes

Environment



Temperature & Humidity

0℃ to +40℃, 0–90% RH (Non-condensing)

Noise Level

<45 dB
