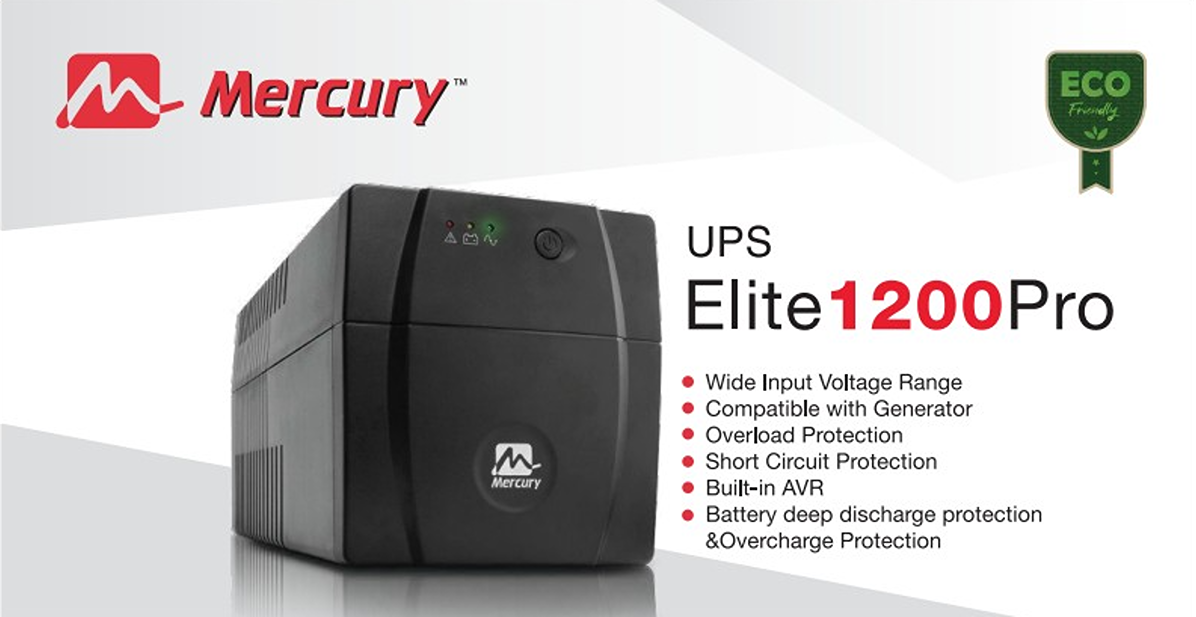

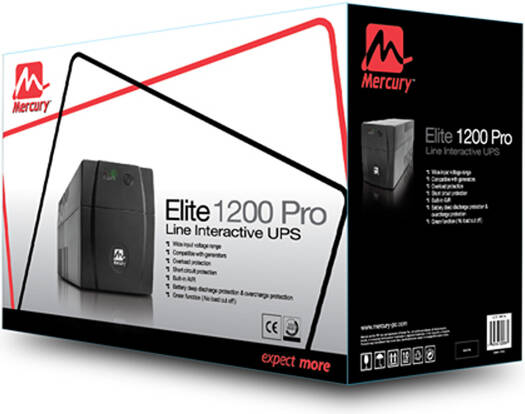

Mercury Elite 1200 Pro Line Interactive UPS, 1200VA/720W, Offline, 4X Universal Socket, 2X 7.5AH Battery, W/ Schuko Power Cord, Black | UP000128

Input voltage

220VAC

Input frequency

50Hz

Input phase

Single phase

Input socket

With Fuse

Cold Start (0 to 100% load)

Press the ON/OFF switch

Input range (220V)

140-300

Rating output (VA).

1200VA

Rating output (W).

720W

Waveform

Battery mode(simulated sine wave),AC mode(sine wave)

Power factor

0.6

Rating voltage

220V

Output range

220Vac-7% to +15% in battery mode

Rear Output Socket

4 x Universal - Battery backup

Transfer time

TYPICAL4-8ms

Communication Interface

optional RS232/RJ11

Rating frequency

50Hz

Line-mode

Synchronize with the Utility

Battery mode

50 Hz±1Hz

Line Mode

FUSE& firmware protection

Battery Mode

Software protection controlled by firmware

Line Mode

110%±5%; Go to fault mode after 5 minutes, 120%±5%; Go to fault mode immediately.

Battery Mode

110%±5%; Shutdown after 5 seconds, 120%±5%, Shutdown immediately

Rating

2 X 12V/7.5AH (Actual rating 7AH)

Backup time - Typical

20 to 30 mins (depending on load)

Charge current

About 1A at normal mode.

Over charge protection

29V±0.2V stop charging, 27.4+/-0.2V recharge

Weight

8.6+/-0.3 Kg

Dimensions per unit packaging

395x205x258mm

Packsize per Master carton

2

Dimensions per Master carton

410x430x273mm
