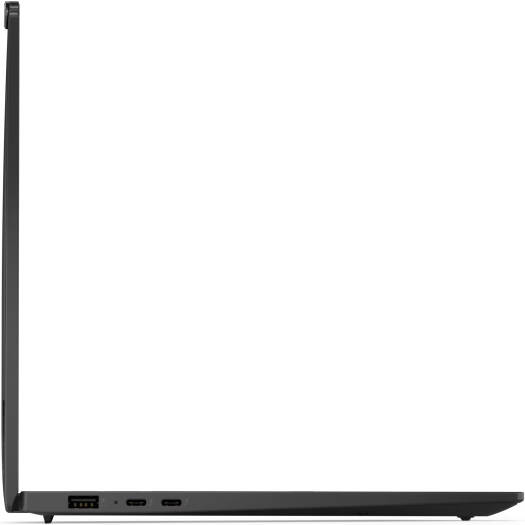

Lenovo ThinkPad X1 Carbon Gen 12 Laptop, 14" WUXGA IPS 60Hz Touch Display, Intel Core Ultra 7 155U, 32GB RAM, 512GB SSD, Intel Graphics, English Keyboard, Windows 11 Pro, Black | 21KC00A7US

PERFORMANCE

Processor

Intel® Core™ Ultra 7 155U, 12C (2P + 8E + 2LPE) / 14T, Max Turbo up to 4.8GHz, 12MB

AI PC Category

AI PC

NPU

Integrated Intel® AI Boost, up to 11 TOPS

Graphics

Integrated Intel® Graphics

Chipset

Intel® SoC Platform

Memory

32GB Soldered LPDDR5x-6400

Memory Slots

Memory soldered to systemboard, no slots, 8-channel

Max Memory

32GB soldered memory, not upgradable

Storage

512GB SSD M.2 2280 PCIe® 4.0x4 Performance NVMe® Opal 2.0

Storage Support

One drive, up to 2TB M.2 2280 SSD

Storage Slot

One M.2 2280 PCIe® 4.0 x4 slot

Card Reader

None

Optical

None

Audio Chip

High Definition (HD) Audio, Realtek® ALC3306 codec

Speakers

Stereo speakers, 2W x2, Dolby Atmos®

Camera

FHD 1080p + IR Discrete with Privacy Shutter

Microphone

2x, Array

Battery

Integrated 57Wh

Power Adapter

65W USB-C® Slim (2-pin)

DESIGN

Display

14" WUXGA (1920x1200) IPS 400nits Anti-glare, 100% sRGB, 60Hz, Low Power, Touch

Touchscreen

On-cell, 10-point Multi-touch

Keyboard

Backlit, English

Touchpad

Trackpad

Case Color

Black, Paint

Case Material

Carbon Fiber (Top), Aluminium (Bottom)

Pen

Pen Not Supported

Dimensions (WxDxH)

312.80 x 214.75 x 14.96 mm (12.31 x 8.45 x 0.59 inches)

Weight

Starting at 1.08 kg (2.37 lbs)

SOFTWARE

Operating System

Windows® 11 Pro, English

Bundled Software

Intel® Connectivity Performance Suite

CONNECTIVITY

Ethernet

No Onboard Ethernet

WLAN + Bluetooth

Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3

WWAN

Non-WWAN

SIM Card

None

NFC

None

Standard Ports

• 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)

• 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On

• 2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1

• 1x HDMI® 2.1, up to 4K/60Hz

• 1x Headphone / microphone combo jack (3.5mm)

Optional Ports (configured)

None

Docking

Various docking solutions supported via Thunderbolt™ / USB-C®. For more compatible docking solutions

SECURITY & PRIVACY

Smart Card Reader

None

Security Chip

Discrete TPM 2.0 Enabled

Fingerprint Reader

Touch Style, Match-on-Chip, in Keyboard Key

Physical Locks

Kensington® Nano Security Slot™, 2.5 x 6 mm

Other Security

• Camera privacy shutter

• IR camera for Windows® Hello (facial recognition)

• Ultrasonic Human Presence Detection (FHD 1080p + IR camera models)

MANAGEABILITY

System Management

Non-vPro®

ACCESSORIES

Bundled Accessories

None

CERTIFICATIONS

Green Certifications

• ENERGY STAR® 8.0

• EPEAT™ Gold Registered

• ErP Lot 6/26

• RoHS compliant

• TCO Certified 10.0

Other Certifications

• Intel® Evo™ Platform

• Eyesafe® Certified 2.0

Mil-Spec Test

MIL-STD-810H military test passed
