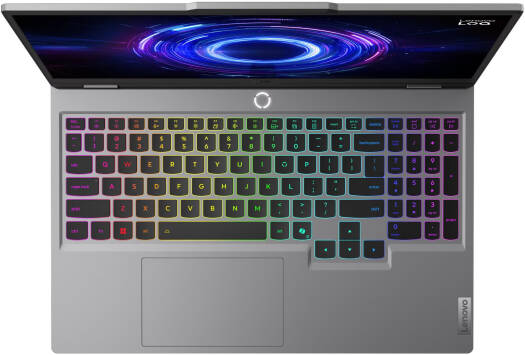

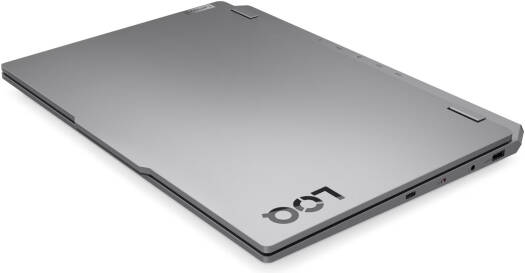

Lenovo LOQ 15IRX10 Gaming Laptop, 15.6" FHD IPS Display, Intel Core i7-14700HX, 24GB RAM, 512GB SSD, GeForce RTX 5060 8GB GPU, English Keyboard, No OS, Luna Grey | 83JE009WPS

PERFORMANCE

Processor

Intel® Core i7-14700HX, 20C (8P + 12E) / 28T, P-core 2.1 / 5.5GHz, E-core 1.5 / 3.9GHz, 33MB

AI PC Category

AI-Powered Gaming PC

Graphics

NVIDIA® GeForce RTX™ 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 100W, 572 AI TOPS

Chipset

Intel® HM770 Chipset

Memory

2x 12GB SO-DIMM DDR5-4800

Memory Slots

Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory

Up to 32GB DDR5-4800 offering

Storage

512GB SSD M.2 2242 PCIe® 4.0x4 NVMe®

Storage Slot

Two M.2 2280 PCIe® 4.0 x4 slots

Max Storage Support

Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB each

Optical

None

Card Reader

None

Audio Chip

High Definition (HD) Audio, Realtek® ALC3287 codec

Speakers

Stereo speakers, 2W x2, optimized with Nahimic Audio

Microphone

2x, Array

Camera

5.0MP with E-shutter

Battery

60Wh

Power Adapter

170W Slim Tip (3-pin)

Special Features

AI Chip: LA1

DESIGN

Display

15.6" FHD (1920x1080) IPS 300nits Anti-glare, 100% sRGB, 144Hz, G-SYNC®

Touchscreen

None

Screen-to-Body Ratio

88% AAR (active area ratio)

Color Calibration

None

Pen

Pen Not Supported

Keyboard

White Backlit, English (UK)

Touchpad

Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)

Dimensions (WxDxH)

359.86 x 258.7 x 21.9-23.9 mm (14.17 x 10.19 x 0.86-0.94 inches)

Weight

Starting at 2.4 kg (5.29 lbs)

Case Color

Luna Grey

Case Material

PC-ABS (Top), PC-ABS (Bottom)

Surface Treatment

Painting

SOFTWARE

Operating System

None

Bundled Software

None

CONNECTIVITY

WLAN + Bluetooth

Wi-Fi® 6, 802.11ax 2x2 + BT5.2

WWAN

Non-WWAN

Ethernet

100/1000M (RJ-45)

Standard Ports

• 3x USB-A (USB 5Gbps / USB 3.2 Gen 1)

• 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 1.4



• 1x HDMI® 2.1, up to 8K/60Hz

• 1x Headphone / microphone combo jack (3.5mm)

• 1x Ethernet (RJ-45)

• 1x Power connector

Docking

Various docking solutions supported via USB-C®. For more compatible docking solutions, please visit Docking for LOQ™ 15IRX10

SECURITY & PRIVACY

Security Chip

Firmware TPM 2.0 Enabled

Fingerprint Reader

None

Other Security

E-shutter

ACCESSORIES

Bundled Accessories

None

CERTIFICATIONS

Green Certifications

• ErP Lot 6/26

• RoHS compliant

Other Certifications

TÜV Rheinland® Low Blue Light (Software Solution)
