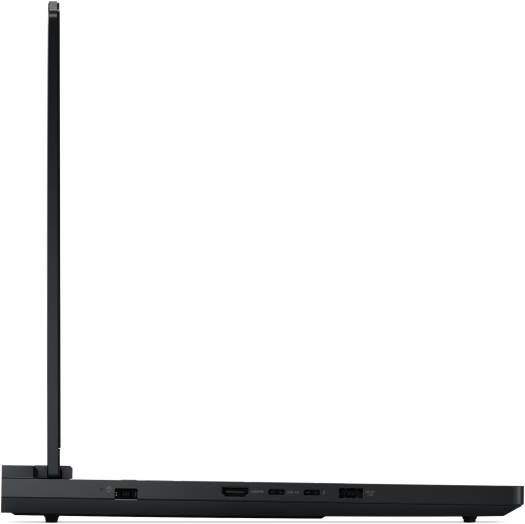

Lenovo Legion Pro 7 16IAX10H Gaming Laptop, 16" WQXGA OLED 240Hz Display, Intel Core Ultra 9 275HX, 64GB RAM, 2TB SSD, GeForce RTX 5090 24GB GPU, English K/B, Win 11, Eclipse Black | 83F50019US

PERFORMANCE

Processor

Intel® Core Ultra 9 275HX, 24C (8P + 16E) / 24T, Max Turbo up to 5.4GHz, 36MB

AI PC Category

AI-Powered Gaming PC

NPU

Integrated Intel® AI Boost, up to 13 TOPS

Graphics

NVIDIA® GeForce RTX™ 5090 24GB GDDR7, Boost Clock 2160MHz, TGP 175W, 1824 AI TOPS

Chipset

Intel® HM870 Chipset

Memory

2x 32GB CSODIMM DDR5-6400

Memory Slots

Two DDR5 CSODIMM slots, dual-channel capable

Max Memory

Up to 64GB DDR5-6400 offering

Storage

2x 1TB SSD M.2 2280 PCIe® 4.0x4 NVMe®

Storage Slot

Two M.2 slots • One M.2 2280 PCIe® 5.0 x4 slot • One M.2 2280 PCIe 4.0 x4 slot

Max Storage Support

Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB • M.2 2280 SSD up to 2TB

Optical

None

Card Reader

None

Audio Chip

High Definition (HD) Audio, Realtek® ALC3306 codec

Speakers

4 stereo speakers, 2W x2 (woofers), 2W x2 (tweeters), optimized with Nahimic Audio, Smart Amplifier (AMP)

Microphone

2x, Array

Camera

5.0MP with E-shutter

Battery

99.9Wh

Power Adapter

400W Slim Tip (3-pin)

Special Features

AI Chip: LA3

DESIGN

Display

16" WQXGA (2560x1600) OLED 500nits (Typical) / 1100nits (Peak) Glossy, 100% DCI-P3, 240Hz, DisplayHDR™ True Black 1000, Dolby Vision®, G-SYNC®, Low Blue Light, High Gaming Performance, Flicker Free

Touchscreen

None

Screen-to-Body Ratio

92% AAR (active area ratio)

Color Calibration

Factory Color Calibration

Pen

Pen Not Supported

Keyboard

Per-key RGB Backlit, English

Touchpad

Buttonless Mylar® surface multi-touch touchpad, 75 x 120 mm (2.95 x 4.72 inches)

Dimensions (WxDxH)

364.38 x 275.94 x 21.9-26.65 mm (14.35 x 10.86 x 0.86-1.05 inches)

Weight

Starting at 2.57 kg (5.67 lbs)

Case Color

Eclipse Black

Case Material

Aluminium (Top), Aluminium (Bottom)

Surface Treatment

Anodizing Sandblasting

SOFTWARE

Operating System

Windows® 11 Home, English

Bundled Software

Office Trial + Lenovo® AI Now

CONNECTIVITY

WLAN + Bluetooth

Wi-Fi® 7, 802.11be 2x2 + BT5.4

WWAN

Non-WWAN

Ethernet

2.5GbE (RJ-45)

Standard Ports

• 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)

• 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On

• 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1

• 1x Thunderbolt™ 4 / USB4® 40Gbps (support data transfer and DisplayPort™ 2.1)

• 1x HDMI® 2.1, up to 8K/60Hz

• 1x Headphone / microphone combo jack (3.5mm)

• 1x Ethernet (2.5GbE RJ-45)

• 1x Power connector

Docking

Various docking solutions supported via Thunderbolt™ or USB-C®. For more compatible docking solutions, please visit Docking for Legion Pro 7 16IAX10H

SECURITY & PRIVACY

Security Chip

Firmware TPM 2.0 Enabled

Fingerprint Reader

None

Other Security

E-shutter

SERVICE

Included Upgrade

None

ACCESSORIES

Bundled Accessories

None

CERTIFICATIONS

Green Certifications

• ErP Lot 3

• RoHS compliant

Other Certifications

• TÜV Rheinland® Flicker Free

• TÜV Rheinland® High Gaming Performance

• TÜV Rheinland® Low Blue Light (Hardware Solution)
