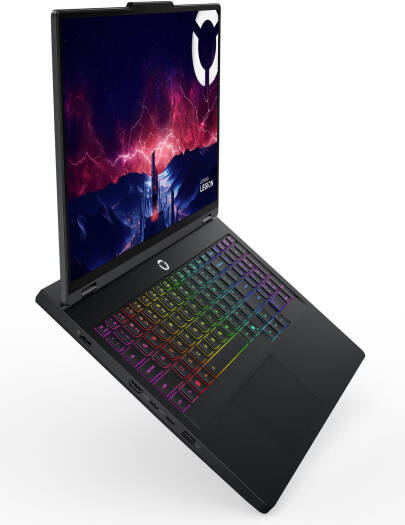

Lenovo Legion Pro 5 Gen 10 Gaming Laptop, 16" WQXGA 165Hz Display, AMD Ryzen 7 8745HX, 24GB RAM, 1TB SSD, GeForce RTX 5060 8GB GPU, English RGB Backlit Keyboard, Windows 11, Eclipse Black | 83LT0031LK

PERFORMANCE

Processor

AMD Ryzen™ 7 8745HX (8C / 16T, 3.6 / 5.1GHz, 8MB L2 / 32MB L3)

AI PC Category

AI-Powered Gaming PC

NPU

None

Graphics

NVIDIA GeForce RTX™ 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 115W, 572 AI TOPS

Chipset

AMD SoC Platform

Memory

1x 24GB SODIMM DDR5-5200

Memory Slots

Two DDR5 SODIMM slots, dual-channel capable

Max Memory

Up to 32GB DDR5-5200 offering

Storage

1TB SSD M.2 2242 PCIe® 4.0x4 NVMe®

Storage Slot

Two M.2 2280 PCIe® 4.0 x4 slots

Max Storage Support

Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB each

Optical

None

Card Reader

None

Audio Chip

High Definition (HD) Audio, Realtek® ALC3306 codec

Speakers

Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio

Microphone

2x, Array

Camera

5.0MP with E-shutter

Battery

80Wh

Power Adapter

245W Slim Tip (3-pin)

Special Features

AI Chip: LA3

DESIGN

Display

16" WQXGA (2560x1600) OLED 500nits Glossy, 100% DCI-P3, 165Hz, DisplayHDR™ True Black 1000, Dolby Vision®, G-SYNC®, Free-Sync Premium, Low Blue Light, High Gaming Performance

Touchscreen

None

Screen-to-Body Ratio

91.7% AAR (active area ratio)

Color Calibration

Factory Color Calibration

Pen

Pen Not Supported

Keyboard

24-Zone RGB Backlit, English (EU)

Touchpad

Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)

Dimensions (WxDxH)

364.38 x 268.06 x 21.69-25.95 mm (14.35 x 10.55 x 0.85-1.02 inches)

Weight

Around 2.3 kg (5.07 lbs)

Case Color

Eclipse Black

Case Material

Aluminium (Top), PC-ABS (Bottom)

Surface Treatment

Anodizing Sandblasting

SOFTWARE

Operating System

Windows® 11 Home Single Language, English

Bundled Software

Office Trial

CONNECTIVITY

WLAN + Bluetooth

Wi-Fi® 7, 802.11be 2x2 + BT5.4

WWAN

WWAN Not Supported

Ethernet

100/1000M (RJ-45)

Standard Ports

• 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)

• 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On

• 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort™ 2.1

• 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1



• 1x HDMI® 2.1, up to 8K/60Hz

• 1x Headphone / microphone combo jack (3.5mm)

• 1x Ethernet (RJ-45)

• 1x Slim tip Power connector

Docking

Various docking solutions supported via USB-C®. For more compatible docking solutions, please visit Docking for Legion Pro 5 16ADR10

SECURITY & PRIVACY

Security Chip

Firmware TPM 2.0 Enabled

Fingerprint Reader

No Fingerprint Reader

Other Security

E-shutter

ACCESSORIES

Bundled Accessories

None

CERTIFICATIONS

Green Certifications

• ErP Lot 3

• RoHS compliant

Other Certifications

• TÜV Rheinland® Flicker Free

• TÜV Rheinland® High Gaming Performance

• TÜV Rheinland® Low Blue Light (Hardware Solution)
