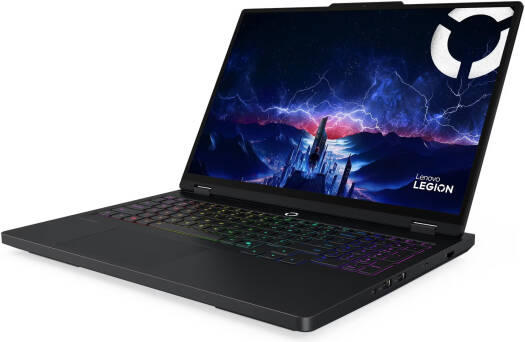

Lenovo Legion Pro 5 16IAX10 Gaming Laptop, 16" WQXGA OLED 165Hz Display, Intel Core Ultra 9 275HX, 32GB RAM, 1TB SSD, GeForce RTX 5070 8GB GPU, English (UK) K/B, No OS, Eclipse Black | 83F3003RPS

PERFORMANCE

Processor

Intel® Core Ultra 9 275HX, 24C (8P + 16E) / 24T, Max Turbo up to 5.4GHz, 36MB

AI PC Category

AI-Powered Gaming PC

NPU

Integrated Intel® AI Boost, up to 13 TOPS

Graphics

NVIDIA® GeForce RTX™ 5070 8GB GDDR7, Boost Clock 2347MHz, TGP 115W, 798 AI TOPS

Chipset

Intel® HM870 Chipset

Memory

2x 16GB SO-DIMM DDR5-5600

Memory Slots

Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory

Up to 32GB DDR5-5600 offering

Storage

1TB SSD M.2 2280 PCIe® 4.0x4 NVMe®

Max Storage Support

Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB • M.2 2280 SSD up to 1TB

Storage Slot

Two M.2 2280 PCIe® 4.0 x4 slots

Card Reader

None

Optical

None

Audio Chip

High Definition (HD) Audio, Realtek® ALC3306 codec

Speakers

Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio

Camera

5.0MP with E-shutter

Microphone

2x, Array

Battery

80Wh

Power Adapter

245W Slim Tip (3-pin)

Special Features

AI Chip: LA3

DESIGN

Display

16" WQXGA (2560x1600) OLED 500nits Glossy, 100% DCI-P3, 165Hz, DisplayHDR™ True Black 1000, Dolby Vision®, G-SYNC®, Low Blue Light, High Gaming Performance, Flicker Free

Touchscreen

None

Color Calibration

Factory Color Calibration

Keyboard

24-Zone RGB Backlit, English (UK)

Touchpad

Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)

Case Color

Eclipse Black

Surface Treatment

Anodizing Sandblasting

Case Material

Aluminium (Top), PC-ABS (Bottom)

Pen

Pen Not Supported

Dimensions (WxDxH)

364.38 x 268.06 x 21.69-25.95 mm (14.35 x 10.55 x 0.85-1.02 inches)

Weight

Around 2.43 kg (5.36 lbs)

SOFTWARE

Operating System

None

Bundled Software

None

CONNECTIVITY

WLAN + Bluetooth

Wi-Fi® 7, 802.11be 2x2 + BT5.4

WWAN

Non-WWAN

Ethernet

100/1000M (RJ-45)

Standard Ports

• 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)

• 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On

• 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1



• 1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with DisplayPort™ 2.1

• 1x HDMI® 2.1, up to 8K/60Hz

• 1x Headphone / microphone combo jack (3.5mm)

• 1x Ethernet (RJ-45)

• 1x Power connector

Docking

Various docking solutions supported via Thunderbolt™ or USB-C®. For more compatible docking solutions

SECURITY & PRIVACY

Security Chip

Firmware TPM 2.0 Enabled

Fingerprint Reader

None

Other Security

E-shutter

ACCESSORIES

Bundled Accessories

None

CERTIFICATIONS

Green Certifications

• ErP Lot 6/26

• RoHS compliant

Other Certifications

• TÜV Rheinland® Flicker Free

• TÜV Rheinland® High Gaming Performance

• TÜV Rheinland® Low Blue Light (Hardware Solution)
