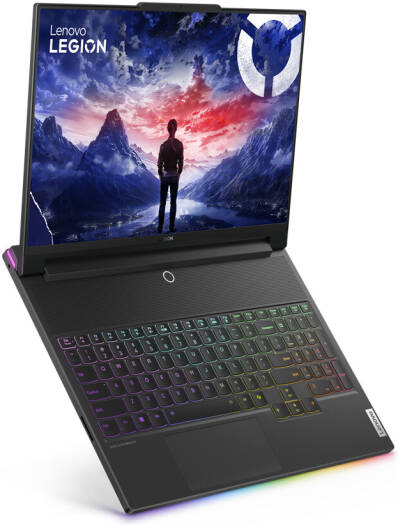

Lenovo Legion 9 16IRX9 Gaming Laptop, 16" 3.2K MiniLED 165Hz Display, Intel Core i9-14900HX, 32 GB RAM, 2TB SSD, GeForce RTX 4090 16GB Graphics, RGB Backlit ENG (US), Win11, Carbon Black | 83G0001LUS

1.  USB-C (USB 5Gbps), data transfer only

6.  USB-A (USB 5Gbps), Always On

2.  USB-A (USB 5Gbps)

7. 2x Thunderbolt 4

3. Headphone/microphone combo jack (3.5mm)

8.  HDMI

4.  Card reader

9.  Power connector

5.  2.5GbE (RJ-45)

PERFORMANCE

Processor

Intel Core i9-14900HX, 24C (8P + 16E) / 32T, P-core 2.2 / 5.8GHz, E-core 1.6 / 4.1GHz, 36MB

Graphics

NVIDIA GeForce RTX 4090 16GB GDDR6, Boost Clock 2040MHz, TGP 175W, 686 AI TOPS

Chipset

Intel HM770 Chipset

Memory

2x 16GB SO-DIMM DDR5-5600

Memory Slots

Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory

Up to 32GB DDR5-5600 offering

Storage

2x 1TB SSD M.2 2280 PCIe 4.0x4 NVMe

Storage Support

Up to two drives, 2x M.2 SSD • M.2 2280 SSD up to 2TB

Storage Slot

Two M.2 2280 PCIe 4.0 x4 slots

RAID Preset

RAID 0

Card Reader

SD Card Reader

Optical

None

Audio Chip

High Definition (HD) Audio, Realtek ALC3306 codec

Speakers

Stereo speakers (super linear speaker), 2W x2, audio by HARMAN, optimized with Nahimic Audio, Smart Amplifier (AMP)

Camera

FHD 1080p with E-shutter

Microphone

2x, Array

Battery

Integrated 99.9Wh

Power Adapter

330W Slim Tip Tiny GaN (3-pin) + 140W USB-C Slim (3-pin)

Special Features

• AI Chip: LA3-P

• Hybrid thermal solution (liquid cooling + air cooling + liquid metal)

DESIGN

Display

16" 3.2K (3200x2000) Mini LED 1200nits Anti-glare, 100% DCI-P3, 100% Adobe RGB, 100% sRGB, 165Hz, DisplayHDR 1000, Dolby Vision, G-SYNC, Low Blue Light

Touchscreen

None

Color Calibration

None

Keyboard

Per-key RGB Backlit (with Lighting Lens), English (US)

Touchpad

Buttonless glass surface multi-touch touchpad, supports Precision TouchPad (PTP), 58 x 120 mm (2.28 x 4.72 inches)

Case Color

Carbon Black

Surface Treatment

Forged Carbon (Soft Painted)

Case Material

Aluminium (Top), Magnesium-aluminium (Bottom)

Dimensions (WxDxH)

357.7 x 277.7 x 18.9-22.7 mm (14.08 x 10.93 x 0.74-0.89 inches)

Weight

Around 2.6 kg (5.73 lbs)

SOFTWARE

Operating System

Windows 11 Home, English

Bundled Software

Office Trial

CONNECTIVITY

Ethernet

2.5GbE (RJ-45)

WLAN + Bluetooth

Intel Killer Wi-Fi 6E AX1675i, 802.11ax 2x2 + BT5.3

Standard Ports

• 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)

• 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On

• 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), data transfer only

• 2x USB-C (Thunderbolt 4 / USB4 40Gbps), with PD 140W and DisplayPort 1.4

• 1x HDMI 2.1, up to 8K/60Hz

• 1x Headphone / microphone combo jack (3.5mm)

• 1x Ethernet (2.5GbE RJ-45)

• 1x Card reader

• 1x Power connector
