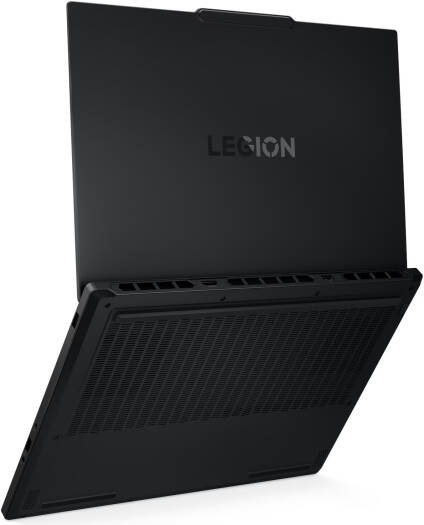

Lenovo Legion 5 15IRX10 Gaming Laptop, 15.3" WUXGA IPS Display, Intel Core i7-13650HX, 16GB RAM, 1TB SSD, GeForce RTX 5060 8GB GPU, Backlit ENG Keyboard, NO OS, Eclipse Black | 83LY00MUPS

PERFORMANCE

Processor

Intel® Core i7-13650HX, 14C (6P + 8E) / 20T, P-core up to 4.9GHz, E-core up to 3.6GHz, 24MB Intel Smart Cache

AI PC Category

AI-Powered Gaming PC

NPU

None

Graphics

NVIDIA® GeForce RTX™ 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 115W, 572 AI TOPS

Chipset

Intel® HM770 Chipset

Memory

1x 16GB SODIMM DDR5-4800

Memory Slots

Two DDR5 SODIMM slots, dual-channel capable

Max Memory

Up to 32GB DDR5-4800 offering

Storage

1TB SSD M.2 2242 PCIe® 4.0x4 NVMe®

Storage Slot

Two M.2 2280 PCIe® 4.0 x4 slots

Max Storage Support

Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB each

Optical

None

Card Reader

None

Audio Chip

High Definition (HD) Audio, Realtek® ALC3287 codec

Speakers

Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio

Microphone

2x, Array

Camera

HD 720p with E-shutter

Battery

80Wh

Power Adapter

245W Slim Tip (3-pin)

Special Features

AI Chip: LA1

DESIGN

Display

15.3" WUXGA (1920x1200) IPS 300nits Anti-glare, 100% sRGB, 165Hz, Dolby Vision®

Touchscreen

None

Screen-to-Body Ratio

IPS models: 90.9% AAR (active area ratio)

Color Calibration

Factory Color Calibration

Pen

Pen Not Supported

Keyboard

White Backlit, English (UK)

Touchpad

Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)

Dimensions (WxDxH)

344.9 x 255.35 x 22.50-23.99 mm (13.58 x 10.05 x 0.89-0.94 inches)

Weight

Starting at 2.1 kg (4.63 lbs)

Case Color

Eclipse Black

Case Material

PC-ABS + 15% Talc (Top), PC-ABS + 15% Talc (Bottom)

Surface Treatment

Painting

SOFTWARE

Operating System

None

Bundled Software

None

CONNECTIVITY

WLAN + Bluetooth

Wi-Fi® 6, 802.11ax 2x2 + BT5.2

WWAN

WWAN Not Supported

Ethernet

100/1000M (RJ-45)

Standard Ports

• 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)

• 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On

• 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 95-100W and DisplayPort™ 2.1



• 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort™ 1.4

• 1x HDMI® 2.1, up to 8K/60Hz

• 1x Headphone / microphone combo jack (3.5mm)

• 1x Ethernet (RJ-45)

• 1x Slim tip Power connector

Docking

Various docking solutions supported via USB-C®. For more compatible docking solutions, please visit Docking for Legion 5 15IRX10

SECURITY & PRIVACY

Security Chip

Firmware TPM 2.0 Enabled

Fingerprint Reader

None

Other Security

E-shutter

SERVICE

Base Warranty

1-year, Courier or Carry-in

Included Upgrade

None

ACCESSORIES

Bundled Accessories

None

CERTIFICATIONS

Green Certifications

• ErP Lot 6/26

• RoHS compliant

Other Certifications

TÜV Rheinland® Low Blue Light (Hardware Solution)
