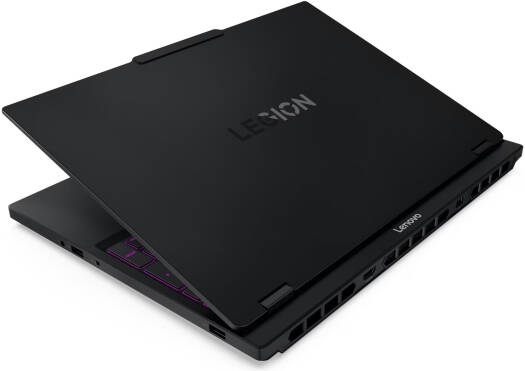

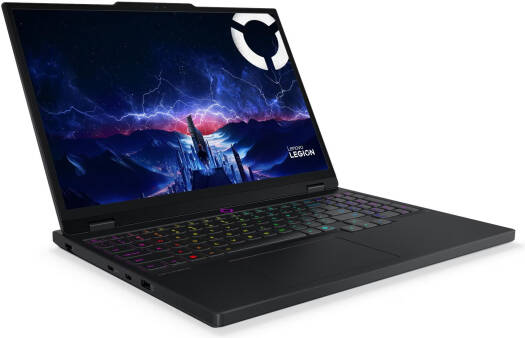

Lenovo Legion 5 15IRX10 Gaming Laptop, 15.1" WQXGA OLED 165Hz Display, Intel Core i9-14900HX, 32GB RAM, 1TB SSD, GeForce RTX 5070 8GB, English 24-Zone Backlit K/B, No OS, Eclipse Black | 83LY0077PS

PERFORMANCE

Processor

Intel® Core i9-14900HX, 24C (8P + 16E) / 32T, P-core 2.2 / 5.8GHz, E-core 1.6 / 4.1GHz, 36MB

AI PC Category

AI-Powered Gaming PC

NPU

None

Graphics

NVIDIA® GeForce RTX™ 5070 8GB GDDR7, Boost Clock 2347MHz, TGP 115W, 798 AI TOPS

Chipset

Intel® HM770 Chipset

Memory

2x 16GB SO-DIMM DDR5-5600

Memory Slots

Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory

Up to 32GB DDR5-5600 offering

Storage

1TB SSD M.2 2242 PCIe® 4.0x4 NVMe®

Max Storage Support

Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB each

Storage Slot

Two M.2 2280 PCIe® 4.0 x4 slots

Card Reader

None

Optical

None

Audio Chip

High Definition (HD) Audio, Realtek® ALC3287 codec

Speakers

Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio

Camera

5.0MP with E-shutter

Microphone

2x, Array

Battery

80Wh

Power Adapter

245W Slim Tip (3-pin)

Special Features

AI Chip: LA1

DESIGN

Display

15.1" WQXGA (2560x1600) OLED 500nits glossy, 100% DCI-P3, 165Hz, Dolby Vision®, DisplayHDR™ True Black 600

Touchscreen

None

Color Calibration

Factory Color Calibration

Keyboard

24-Zone RGB Backlit, English (UK)

Touchpad

Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)

Case Color

Eclipse Black

Surface Treatment

Aluminium Stamping (Anodized with Sandblasting)

Case Material

Aluminium (Top), PC-ABS + 15% Talc (Bottom)

Pen

Pen Not Supported

Dimensions (WxDxH)

344.9 x 255.35 x 19.95-21.54 mm (13.58 x 10.05 x 0.79-0.85 inches)

Weight

Starting at 1.9 kg (4.19 lbs)

SOFTWARE

Operating System

None

Bundled Software

None

CONNECTIVITY

WLAN + Bluetooth

Wi-Fi® 7, 802.11be 2x2 + BT5.4

WWAN

Non-WWAN

Ethernet

100/1000M (RJ-45)

Standard Ports

• 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)

• 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On

• 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1



• 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort™ 1.4

• 1x HDMI® 2.1, up to 8K/60Hz

• 1x Headphone / microphone combo jack (3.5mm)

• 1x Ethernet (RJ-45)

• 1x Power connector

Docking

Various docking solutions supported via USB-C®. For more compatible docking solutions

SECURITY & PRIVACY

Security Chip

Firmware TPM 2.0 Enabled

Fingerprint Reader

None

Other Security

E-shutter

ACCESSORIES

Bundled Accessories

None

CERTIFICATIONS

Green Certifications

• ErP Lot 6/26

• RoHS compliant

Other Certifications

• TÜV Rheinland® Flicker Free

• TÜV Rheinland® Low Blue Light (Hardware Solution)
