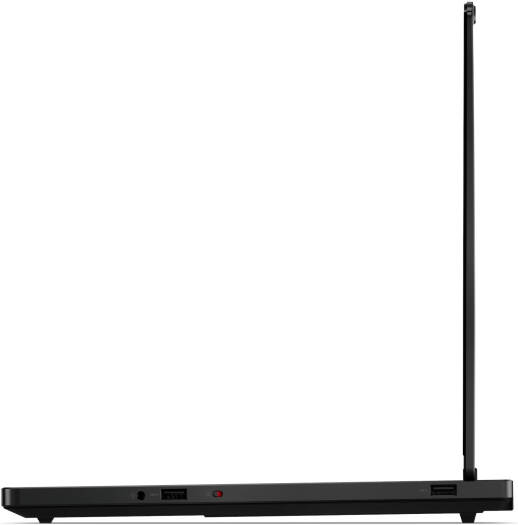

Lenovo Legion 5 15AHP10 Gaming Laptop, 15.3" WUXGA IPS 165Hz Display, AMD Ryzen 7 260, 16GB RAM, 512GB SSD, GeForce RTX 5060 8GB Graphics, English K/B, Win11Home, Eclipse Black | 83M0004JUS

PERFORMANCE

Processor

AMD Ryzen™ 7 260 (8C / 16T, 3.8 / 5.1GHz, 8MB L2 / 16MB L3)

AI PC Category

AI-Powered Gaming PC

NPU

Integrated AMD Ryzen™ AI, up to 16 TOPS

Graphics

NVIDIA GeForce RTX™ 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 115W, 572 AI TOPS

Chipset

AMD SoC Platform

Memory

1x 16GB SODIMM DDR5-5600

Memory Slots

Two DDR5 SODIMM slots, dual-channel capable

Max Memory

Up to 32GB DDR5-5600 offering

Storage

512GB SSD M.2 2242 PCIe® 4.0x4 NVMe®

Storage Slot

Two M.2 2280 PCIe® 4.0 x4 slots

Max Storage Support

Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB each

Optical

None

Card Reader

No Card Reader

Audio Chip

High Definition (HD) Audio, Realtek® ALC3287 codec

Speakers

Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio

Microphone

2x, Array

Camera

HD 720p with E-shutter

Battery

60Wh

Power Adapter

245W Slim Tip (3-pin)

Special Features

AI Chip: LA1

DESIGN

Display

15.3" WUXGA (1920x1200) IPS 300nits Anti-glare, 100% sRGB, 165Hz, Dolby Vision®

Touchscreen

None

Screen-to-Body Ratio

IPS models: 90.9% AAR (active area ratio)

Color Calibration

Factory Color Calibration

Pen

Pen Not Supported

Keyboard

White Backlit, English

Touchpad

Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)

Dimensions (WxDxH)

344.9 x 255.35 x 22.50-23.99 mm (13.58 x 10.05 x 0.89-0.94 inches)

Weight

Starting at 2.1 kg (4.63 lbs)

Case Color

Eclipse Black

Case Material

PC-ABS + 15% Talc (Top), PC-ABS + 15% Talc (Bottom)

Surface Treatment

Painting

SOFTWARE

Operating System

Windows® 11 Home, English

Bundled Software

Office Trial + Lenovo® AI Now

CONNECTIVITY

WLAN + Bluetooth

Wi-Fi® 6, 802.11ax 2x2 + BT5.2

WWAN

WWAN Not Supported

Ethernet

100/1000M (RJ-45)

Standard Ports

• 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)

• 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On

• 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 95-100W and DisplayPort™ 2.1



• 1x USB-C® (USB4® 40Gbps), with DP 1.4

• 1x HDMI® 2.1, up to 8K/60Hz

• 1x Headphone / microphone combo jack (3.5mm)

• 1x Ethernet (RJ-45)

• 1x Slim tip Power connector

Docking

Various docking solutions supported via USB-C®. For more compatible docking solutions, please visit Docking for Legion 5 15AHP10

SECURITY & PRIVACY

Security Chip

Firmware TPM 2.0 Enabled

Fingerprint Reader

No Fingerprint Reader

Other Security

E-shutter

ACCESSORIES

Bundled Accessories

None

CERTIFICATIONS

Green Certifications

• ENERGY STAR® 9.0

• EPEAT™ Gold Registered

• ErP Lot 6/26

• RoHS compliant

Other Certifications

TÜV Rheinland® Low Blue Light (Hardware Solution)
