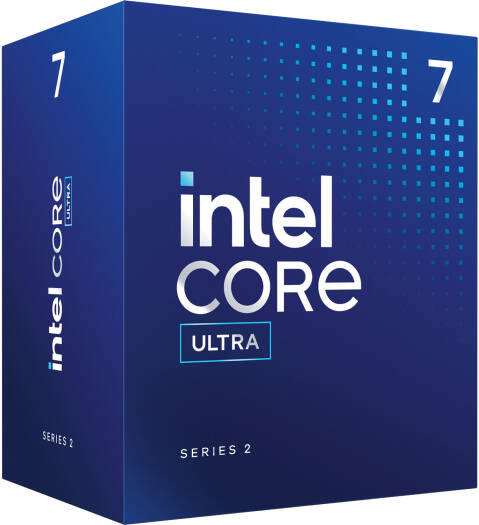

Intel Core Ultra 7 265 LGA 1851 Processor, 20 Cores & 20 Threads, 30MB Cache Memory, 5.3 GHz Max Turbo Frequency, Integrated Intel Graphics, Dual-Channel DDR5 Memory, 256 GB Max Memory | BX80768265

CPU Specifications

Total Cores

20

# of Performance-cores

8

# of Efficient-cores

12

Total Threads

20

Max Turbo Frequency

5.3 GHz

Intel® Turbo Boost Max Technology 3.0 Frequency

5.3 GHz

Performance-core Max Turbo Frequency

5.2 GHz

Efficient-core Max Turbo Frequency

4.6 GHz

Performance-core Base Frequency

2.4 GHz

Efficient-core Base Frequency

1.8 GHz

Cache

30 MB Intel® Smart Cache

Total L2 Cache

36 MB

Processor Base Power

65 W

Maximum Turbo Power

182 W

Intel® Deep Learning Boost (Intel® DL Boost)

Yes

AI Software Frameworks Supported by CPU

OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

CPU Lithography

TSMC N3B

Marketing Status

Launched

Launch Date

Q1'25

Embedded Options Available

Yes

Use Conditions

PC/Client/Tablet, Workstation

Memory Specifications

Max Memory Size (dependent on memory type)

256 GB

Memory Types

Up to DDR5 6400 MT/s

Max # of Memory Channels

2

ECC Memory Supported

Yes

GPU Specifications

GPU Name

Intel® Graphics

Graphics Base Frequency

300 MHz

Graphics Max Dynamic Frequency

1.95 GHz

GPU Peak TOPS (Int8)

8

Graphics Output

DP2.1 UHBR20, HDMI 2.1 FRL 12GHz, eDP1.4b

Xe-cores

4

Max Resolution (HDMI)

4K @ 60Hz (HDMI 2.1 TMDS), 8K @ 60Hz (HDMI2.1 FRL)

Max Resolution (DP)

8K @ 60Hz

Max Resolution (eDP)

4K @ 60Hz

DirectX* Support

12

OpenGL* Support

4.5

OpenCL* Support

3

Intel® Quick Sync Video

Yes

# of Displays Supported

4

Device ID

0x7D67

Intel® Deep Learning Boost (Intel® DL Boost)

Yes

NPU Specifications

NPU Name

Intel® AI Boost

NPU Peak TOPS (Int8)

13

Sparsity Support

Yes

Windows Studio Effects Support

Yes

AI Software Frameworks Supported by NPU

OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options

Direct Media Interface (DMI) Revision

4

Max # of DMI Lanes

8

Intel® Thunderbolt™ 4

Yes

Scalability

1S Only

PCI Express Revision

5.0 and 4.0

PCI Express Configurations

Up to 1x16+2x4, 2x8+2x4, 1x8+4x4

Max # of PCI Express Lanes

24

Package Specifications

Sockets Supported

FCLGA1851

Thermal Solution Specification

PCG 2022C

Max Operating Temperature

105 °C

Advanced Technologies

Intel® Volume Management Device (VMD)

Yes

Intel® Gaussian & Neural Accelerator 3.5

Yes

Intel® Thread Director

Yes

Intel® Speed Shift Technology

Yes

Intel® Turbo Boost Max Technology 3.0

Yes

Intel® Turbo Boost Technology

2.0

Intel® 64

Yes

Instruction Set

64-bit

Instruction Set Extensions

Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle States

Yes

Enhanced Intel SpeedStep® Technology

Yes

Thermal Monitoring Technologies

Yes

Security & Reliability

Intel vPro® Eligibility

Intel vPro® Enterprise

Intel vPro® Security Eligibility

Yes

Intel® Threat Detection Technology (TDT)

Yes

Intel® Active Management Technology (AMT)

Yes

Intel® Standard Manageability (ISM)

Yes

Intel® Remote Platform Erase (RPE)

Yes

Intel® One-Click Recovery

Yes

Intel® Control-Flow Enforcement Technology

Yes

Intel® Total Memory Encryption - Multi Key

Yes

Intel® AES New Instructions

Yes

Secure Key

Yes

Intel® Trusted Execution Technology

Yes

Execute Disable Bit

Yes

Intel® OS Guard

Yes

Intel® Boot Guard

Yes

Mode-based Execute Control (MBEC)

Yes

Intel® Stable IT Platform Program (SIPP)

Yes

Intel® Virtualization Technology with Redirect Protection (VT-rp)

Yes

Intel® Virtualization Technology (VT-x)

Yes

Intel® Virtualization Technology for Directed I/O (VT-d)

Yes

Intel® VT-x with Extended Page Tables (EPT)

Yes
