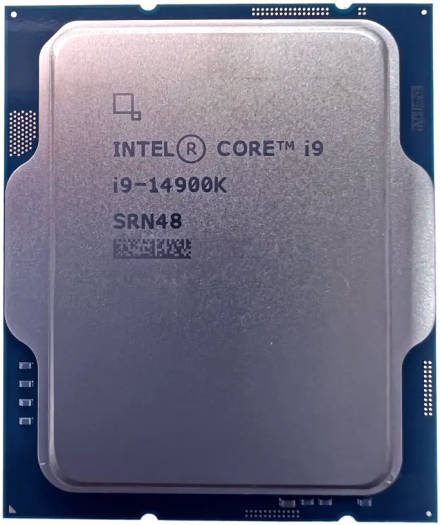

Intel Core i9 14900K 3.2GHz 24-Core LGA 1700 14th Gen Processor, 32 Threads, 36MB Cache Memory, 6GHz Max Turbo Frequency, Intel UHD Graphics 770, 2CH DDR5-5600 / 192GB Max | CM8071505094017

Product Collection

Intel® Core™ i9 Processors (14th gen)

Code Name

Raptor Lake

Vertical Segment

Desktop

Processor Number

i9-14900K

Lithography

Intel 7

Use Conditions

PC/Client/Tablet, Workstation

CPU Specifications

Total Cores

24

Performance-cores

8

Efficient-cores

16

Total Threads

32

Max Turbo Frequency

6 GHz

Thermal Velocity Boost Frequency

6 GHz

Turbo Boost Max Tech 3.0 Frequency

5.8 GHz

Perf-core Max Turbo Frequency

5.6 GHz

Eff-core Max Turbo Frequency

4.4 GHz

Perf-core Base Frequency

3.2 GHz

Eff-core Base Frequency

2.4 GHz

Cache

36 MB Intel® Smart Cache

Total L2 Cache

32 MB

Processor Base Power

125 W

Max Turbo Power

253 W

Supplemental Information

Marketing Status

Launched

Launch Date

Q4'23

Embedded Options Available

No

Memory Specifications

Max Memory Size

192 GB

Memory Types

Up to DDR5 5600 MT/s

Up to DDR4 3200 MT/s

Max # of Memory Channels

2

Max Memory Bandwidth

89.6 GB/s

ECC Memory Supported

Yes

GPU Specifications

GPU Name

Intel® UHD Graphics 770

Graphics Base Frequency

300 MHz

Graphics Max Dynamic Frequency

1.65 GHz

Graphics Output

eDP 1.4b, DP 1.4a, HDMI 2.1

Execution Units

32

Max Resolution (HDMI/DP/eDP)

4096x2160@60Hz, 7680x4320@60Hz,

5120x3200@120Hz

DirectX Support

12

OpenGL Support

4.5

OpenCL Support

3.0

Multi-Format Codec Engines

2

Quick Sync Video

Yes

Clear Video HD Technology

Yes

# of Displays Supported

4

Device ID

0xA780

Expansion Options

DMI Revision

4.0

Max # of DMI Lanes

8

Scalability

1S Only

PCI Express Revision

5.0 and 4.0

PCI Express Configurations

Up to 1x16+4, 2x8+4

Max # of PCI Express Lanes

20

Package Specifications

Sockets Supported

FCLGA1700

Max CPU Configuration

1

Thermal Solution Specification

PCG 2020A

TJUNCTION

100°C

Package Size

45.0mm x 37.5mm

Advanced Technologies

Gaussian & Neural Accelerator 3.0

Yes

Thread Director

Yes

DL Boost on CPU

Yes

Speed Shift Technology

Yes

Adaptive Boost Technology

Yes

Thermal Velocity Boost

Yes

Turbo Boost Max Tech 3.0

Yes

Turbo Boost Technology 2.0

Yes

Hyper-Threading Technology

Yes

64-bit Instruction Set

Yes

SSE4.1, SSE4.2, AVX2 Extensions

Yes

Idle States

Yes

SpeedStep Technology

Yes

Thermal Monitoring Technologies

Yes

Volume Management Device (VMD)

Yes

Security & Reliability

Standard Manageability (ISM)

Yes

Control-Flow Enforcement Technology

Yes

AES New Instructions

Yes

Secure Key

Yes

OS Guard

Yes

Execute Disable Bit

Yes

Boot Guard

Yes

MBEC

Yes

VT-x

Yes

VT-d

Yes

VT-x with EPT

Yes
