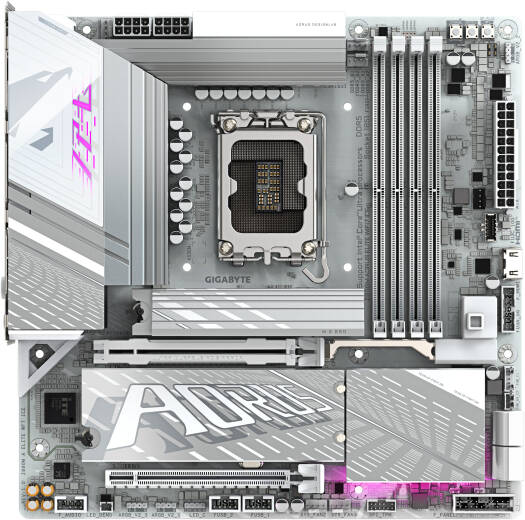

Gigabyte Z890M AORUS ELITE WIFI7 ICE, Intel Core Ultra Processors, LGA1851 Socket, Up To DDR5 256GB RAM, Bluetooth 5.4, Wi-Fi 7 | Z890M-A-ELITE-WF7-ICE

CPU

LGA1851 socket: Support for Intel® Core™ Ultra Processors, L3 cache varies with CPU

Chipset

Intel® Z890 Express Chipset

Memory

DDR5 8800(O.C) down to 5600MT/s, 4 x DDR5 DIMM sockets, up to 256 GB, ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), support for XMP and CUDIMM memory modules

Onboard Graphics

Integrated Intel® HD Graphics, 1 x USB4 USB Type-C, 1 x DisplayPort, 1 x front HDMI port, support for up to 3 displays

Audio

Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel support, S/PDIF Out

LAN

Realtek® 2.5GbE LAN chip

Wireless Communication

MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) / Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1), Bluetooth 5.4

Expansion Slots

1 x PCIe 5.0 x16 (CPU), 1 x PCIe 4.0 x4 (Chipset)

Storage Interface

3 x M.2 connectors (PCIe 5.0/4.0 x4/x2 SSD support), 4 x SATA 6Gb/s connectors, RAID 0/1/5/10

USB Ports

USB4 Type-C, USB 3.2 Gen 2 (Type-C and Type-A), USB 3.2 Gen 1 (6 ports), USB 2.0 (8 ports)

Internal I/O Connectors

24-pin ATX power, 8-pin ATX 12V, multiple fan headers, RGB Gen2 LED, Thunderbolt add-in card connectors, TPM header, HDMI port, power and reset buttons, Clear CMOS jumper

Back Panel Connectors

USB4 Type-C, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0, DisplayPort, RJ-45, optical S/PDIF Out, 2 x audio jacks

I/O Controller

iTE® I/O Controller Chip, voltage/temperature/fan speed detection, fan fail warning, fan speed control

BIOS

256 Mbit flash, AMI UEFI BIOS

Unique Features

GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup

Bundled Software

Norton® Internet Security (OEM version), LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Form Factor

Micro ATX, 24.4cm x 24.4cm
