GIGABYTE Z890 UD WIFI6E, LGA 1851 ATX Motherboard, Intel Z890 Express Chipset, For Intel Core Ultra Processors (Series 2), DDR5, Up To 256GB RAM, 1x PCIe 5.0 x16 Slot, 4x M.2 Slots | Z890-UD-WIFI6E

CPU Support

LGA1851 socket: Supports Intel® Core™ Ultra Processors, L3 cache varies with CPU

Chipset

Intel® Z890 Express Chipset

Memory Support

- DDR5 9200(O.C) to 6400/6200/6000/5800/5600MT/s memory support

- 4 x DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM)

- Dual-channel architecture, supports ECC and non-ECC Un-buffered DIMM memory

Graphics

Integrated Intel® HD Graphics

- 1 x USB4® USB Type-C® supporting 3840x2160@144Hz DisplayPort video output

- 1 x DisplayPort supporting 3840x2160@144Hz

Audio

Realtek® Audio CODEC, High Definition Audio, supports 2/4/5.1/7.1-channel audio

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication Module

Intel® Wi-Fi 6E AX211 or Realtek® RTL8852CE with Bluetooth 5.3, 2.4/5/6 GHz, 11ax 160MHz wireless standard

Expansion Slots

CPU: 1 x PCIe 5.0 x16 slot (for graphics card or NVMe SSD)

Chipset: 2 x PCIe 4.0 x16 slots (x4) and 1 x PCIe 4.0 x16 slot (x1)

Storage Interface

- 1 x M.2 PCIe 5.0 x4 SSD slot, 1 x M.2 PCIe 4.0 x4 SSD slot (CPU side)

- Chipset: 1 x M.2 SATA/PCIe 4.0 x4 SSD slot, 4 x SATA 6Gb/s connectors

- RAID 0, 1, 5, 10 support

USB Ports

- 1 x USB4® USB Type-C® port on the back panel

- Chipset: 1 x USB Type-C® (USB 3.2 Gen 1), 1 x USB 3.2 Gen 2 Type-A, 6 x USB 3.2 Gen 1 ports, 8 x USB 2.0/1.1 ports

Internal I/O Connectors

Multiple headers for power, fans, RGB LED strips, USB, and Thunderbolt™ add-in cards

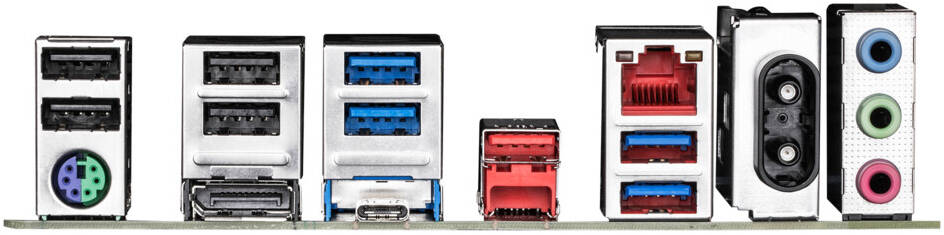

Back Panel Connectors

- 4 x USB 2.0/1.1, 1 x PS/2 keyboard/mouse, 1 x DisplayPort, 4 x USB 3.2 Gen 1, 1 x USB4® Type-C®, 1 x USB 3.2 Gen 2 (red)

- 1 x RJ-45 LAN port, 2 x SMA antenna connectors, 3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage, temperature, fan speed, and water cooling flow rate detection; fan fail warning

BIOS

256 Mbit flash, AMI UEFI BIOS, supports Q-Flash, Q-Flash Plus, and Smart Backup

Bundled Software

Norton® Internet Security (OEM version), LAN bandwidth management software

Operating System Support

Windows 11 64-bit

Form Factor

ATX Form Factor (30.5 cm x 24.4 cm)

Unique Features

GIGABYTE Control Center (GCC), Q-Flash Plus, Smart Backup
