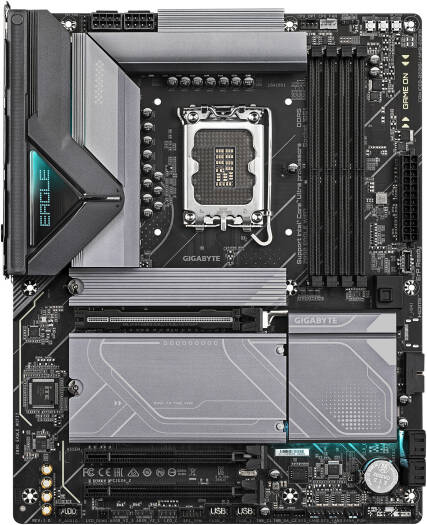

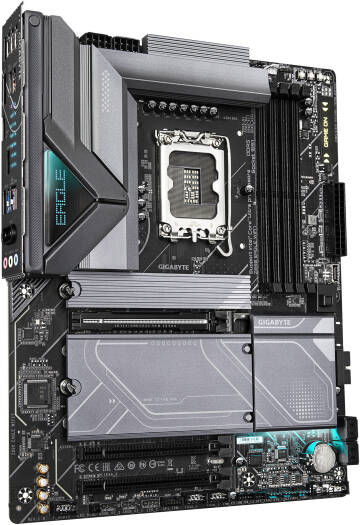

GIGABYTE Z890 Eagle Wi-Fi 7 LGA 1851 ATX Motherboard, Intel Z890 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, Wi-Fi 7 & BT 5.4, 1x PCIe 5.0 x16, 4x M.2 Slots | Z890-EAGLE-WIFI7

CPU

LGA1851 socket: Supports Intel® Core™ Ultra Processors, L3 cache varies with CPU

Chipset

Intel® Z890 Express Chipset

Memory

Supports DDR5 up to 8800(O.C.), 4 x DDR5 DIMM slots, up to 256 GB, ECC/non-ECC, XMP, CUDIMM support

Graphics

Intel® HD Graphics, 1 x USB4® Type-C (3840x2160@144Hz), 1 x DisplayPort (3840x2160@144Hz), DisplayPort 2.1 support

Audio

Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wi-Fi & Bluetooth

MediaTek Wi-Fi 7 MT7925 / Realtek® Wi-Fi 7 RTL8922AE, Bluetooth 5.4, supports 802.11a/b/g/n/ac/ax/be (2.4/5/6 GHz)

Expansion Slots

1 x PCIe 5.0 x16 (CPU), 2 x PCIe 4.0 x4 (Chipset)

Storage Interface

2 x M.2 (PCIe 5.0/4.0, CPU), 2 x M.2 (PCIe 4.0/SATA, Chipset), 4 x SATA 6Gb/s

RAID Support

RAID 0, 1, 5, 10 for NVMe and SATA SSDs

USB Ports

1 x USB4® Type-C (CPU), 1 x USB Type-C (USB 3.2 Gen 2), 2 x USB 3.2 Gen 2 Type-A, 5 x USB 3.2 Gen 1, 8 x USB 2.0/1.1

Internal I/O Connectors

24-pin ATX power, 2 x 8-pin ATX 12V, 4 x M.2, 4 x SATA 6Gb/s, Fan/Water cooling headers, RGB headers, TPM header, Power/Reset buttons

Back Panel Connectors

1 x USB4® Type-C, 2 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 4 x USB 2.0, DisplayPort, RJ-45, 2 x antenna connectors, 3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

Hardware Monitoring

Voltage, Temperature, Fan speed, Water cooling flow rate, Fan fail warning, Fan speed control

BIOS

256 Mbit flash, AMI UEFI BIOS, Q-Flash, Q-Flash Plus

Unique Features

GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup

Bundled Software

Norton® Internet Security (OEM), LAN bandwidth management software

Operating System Support

Windows 11 64-bit

Form Factor

ATX (30.5 cm x 24.4 cm)
