GIGABYTE Z890 Aero G LGA 1851 ATX Motherboard, Intel Z890 Express Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, Wi-Fi 7 & BT5.4, 2x PCIe 5.0 x16 Slots, 5 x M.2 Slots, White | Z890-AERO-G

CPU

LGA1851 socket: Support for Intel® Core™ Ultra Processors, L3 cache varies with CPU (refer to "CPU Support List")

Chipset

Intel® Z890 Express Chipset

Memory

Supports DDR5 up to 8800(O.C) and down to 5800MT/s, 4 x DDR5 DIMM sockets (up to 256 GB)

Dual channel memory architecture, supports ECC and non-ECC Un-buffered DIMMs, XMP modules, and CUDIMM memory module

Onboard Graphics

Integrated Intel® HD Graphics:

- 1 x Thunderbolt™ 4 (USB4 Type-C) supporting up to 5120x2880@60 Hz

- 1 x HDMI port supporting up to 4096x2160@60 Hz

- 1 x Front HDMI port supporting up to 1920x1080@30 Hz

- Support for up to triple-display

Audio

Realtek® ALC1220 CODEC, High Definition Audio (2/4/5.1/7.1-channel)

Supports S/PDIF Out

LAN

2 x Intel® 2.5GbE LAN chips (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication

Intel® Wi-Fi 7 BE202, supporting 802.11a/b/g/n/ac/ax/be, Bluetooth 5.4

*Requires Windows 11 SV3 for Wi-Fi 7 functionality

Expansion Slots

- 1 x PCIe 5.0 x16 slot

- 1 x PCIe 5.0 x16 slot (x8 mode if PCIEX8 is populated)

- 1 x PCIe 4.0 x16 slot (x4)

Storage Interface

- 1 x M.2 PCIe 5.0 x4 SSD support

- 1 x M.2 PCIe 4.0 x4 SSD support

- 4 x SATA 6Gb/s connectors

- Supports RAID 0, RAID 1, RAID 5, and RAID 10

USB

- 1 x Thunderbolt™ 4 (USB Type-C) supporting up to 40Gbps

- 6 x USB 3.2 Gen 1 ports

- 6 x USB 2.0/1.1 ports

Internal I/O Connectors

1 x 24-pin ATX main power, 2 x 8-pin ATX 12V, various fan and RGB headers

5 x M.2 connectors, 4 x SATA connectors

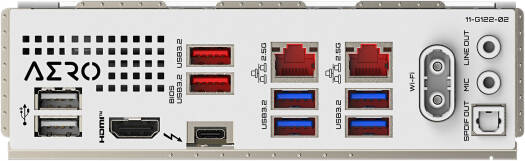

Back Panel Connectors

2 x USB 2.0 ports, 1 x HDMI port, 2 x RJ-45, 4 x USB 3.2 Gen 1 ports

2 x SMA antenna connectors, 2 x audio jacks, 1 x optical S/PDIF Out connector

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage, temperature, fan speed, and water cooling flow rate detection

BIOS

1 x 256 Mbit flash, licensed AMI UEFI BIOS, supports various standards

Unique Features

Support for GIGABYTE Control Center (GCC), Q-Flash, Smart Backup

Bundled Software

Norton® Internet Security (OEM version), LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Form Factor

ATX Form Factor; 30.5cm x 24.4cm
