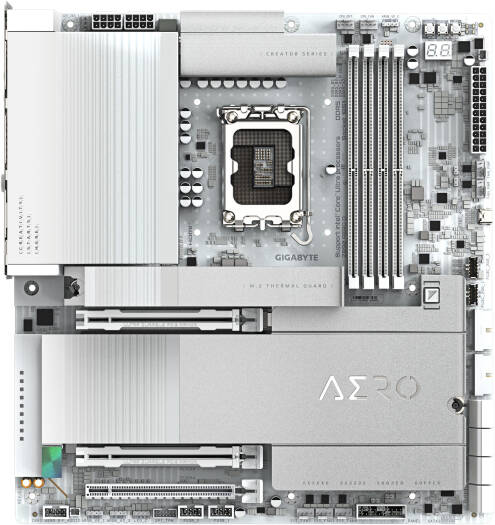

GIGABYTE Z890 Aero D LGA 1851 E-ATX Motherboard, Intel Z890 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 2x PCIe 5.0 x16, 4x M.2 Slots, Intel Wi-Fi 7 & BT 5.4 Connectivity, White | Z890-AERO-D - Image 1
1 / 6

GIGABYTE Z890 Aero D LGA 1851 E-ATX Motherboard, Intel Z890 Chipset, 4x DIMM DDR5 Slots, Up to 256GB Max Memory, 2x PCIe 5.0 x16, 4x M.2 Slots, Intel Wi-Fi 7 & BT 5.4 Connectivity, White | Z890-AERO-D

Brand: Gigabyte|Category: Motherboards|SKU: 10452|Model: Z890-AERO-D
AED 2,920.00

  • Supports Intel® Core™ Ultra processors (Series 2)

  • VisionLINK/TB : One USB-C® Port for Video, Data Transfer and Charging

  • Ultimate Scalibility : 2*PCIe x16 slots for Multi-GPU

  • Blazing Fast Networks : Daul 10 GbE LAN and Wi-Fi 7 with directional Ultra-high gain antenna

  • Digital twin 16+1+2 phases VRM solution

  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation

  • EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design

  • EZ-Latch Click : M.2 heatsinks with screwless design

Included warranty

1 Year

Secure payment

Your payment is encrypted and processed securely at checkout.

Additional Warranty

1

Product Description

Model

LGA1851-based Motherboard

CPU Support

Intel® Core™ Ultra Processors (LGA1851 socket), L3 cache varies

Chipset

Intel® Z890 Express Chipset

Memory

Up to DDR5 9500(O.C.), 4x DIMM, 256 GB max, dual channel, ECC & non-ECC support, XMP support

Graphics

Integrated: Thunderbolt™ 5 (2x USB4® Type-C), 1x Thunderbolt™ 4 (USB4®), 1x HDMI 2.1

Max Resolution

7680x4320@60Hz (TB5), 5120x2880@60Hz (TB4), 3840x2160@240Hz (USB-C), 4096x2160@60Hz (HDMI)

Audio

ESS ES9260 (rear), Realtek® ALC897 (front), HD Audio, 2-channel

LAN

2x Marvell® AQC113C 10GbE

Wi-Fi

Intel® Wi-Fi 7 BE200, Bluetooth 5.4

Expansion Slots

1x PCIe 5.0 x16, 1x PCIe 5.0 x8 (shares w/ x16), 1x PCIe 4.0 x4

Storage (CPU)

1x M.2 PCIe 5.0 x4, 1x M.2 PCIe 4.0 x4

Storage (Chipset)

2x M.2 PCIe 4.0 x4, 8x SATA 6Gb/s (4 via ASM1164), RAID 0/1/5/10

USB Ports

TB5: 2x USB4 Type-C, TB4: 1x USB4 Type-C, 1x USB 3.2 Gen2x2 Type-C (front), 6x USB 3.2 Gen2 Type-A, 2x USB 3.2 Gen1, internal headers: multiple USB 3.2 Gen1/Gen2/USB 2.0

Internal Connectors

2x 8-pin ATX, 1x 24-pin ATX, 6x fan headers, 3x ARGB, 1x RGB, 4x M.2, TPM, buttons (PWR, RESET), Q-Flash Plus

Back I/O

1x DP In, 1x HDMI, 2x audio jacks, 2x USB4, 2x USB 3.2 Gen1, 6x USB 3.2 Gen2, 2x RJ-45 (10GbE), 2x antenna

Monitoring

Voltage, temp, fan speed, flow rate, noise, fail warning, speed control

BIOS

256Mbit AMI UEFI BIOS, Q-Flash, Q-Flash Plus, Smart Backup

Software

GIGABYTE Control Center, Norton Security, LAN manager

OS Support

Windows 11 64-bit (v24H2 or later)

Form Factor

E-ATX, 30.5cm x 28.5cm
