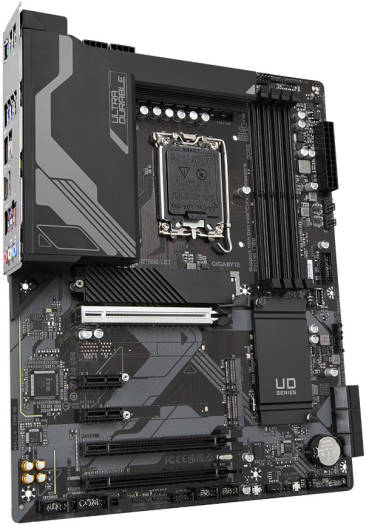

GIGABYTE Z790 UD rev. 1.0 LGA1700 ATX Motherboard, Intel Z790 Chipset, 4 x DDR5 DIMM, 128GB Max Memory, 2.5GbE LAN, 1x PCI E 5.0 x16, 1x HDMI1, 1x DP, 1x M.2, USB-C 3.2/USB 2.0 | Z790-UD

CPU

LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors

L3 cache varies with CPU

(Refer "CPU Support List" for more information)

Chipset

Intel® Z790 Express Chipset

Memory

- Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /.../ 4000 memory modules

- 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

- Dual-channel memory architecture

- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

- Support for Extreme Memory Profile (XMP) memory modules

(Refer "Memory Support List" for more information)

Onboard Graphics

- Integrated Graphics Processor-Intel® HD Graphics support

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

- Support for HDMI 2.0 version and HDCP 2.3

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

- Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support)

Audio

- Realtek® Audio CODEC

- High Definition Audio

- 2/4/5.1/7.1-channel

- You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings

- Support for S/PDIF Out

LAN

- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots

- CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

- For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

- Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)

- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)

- Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)

Storage Interface

- CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

- Chipset: 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)

- 6 x SATA 6Gb/s connectors

- RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

- RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

- Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support

- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

- Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

- 1 x 24-pin ATX main power connector

- 2 x 8-pin ATX 12V power connectors

- 1 x CPU fan header

Internal I/O Connectors

- 1 x water cooling CPU fan header

- 3 x system fan headers

- 1 x system fan/water cooling pump header

- 2 x addressable LED strip headers

- 2 x RGB LED strip headers

- 3 x M.2 Socket 3 connectors

- 6 x SATA 6Gb/s connectors

- 1 x front panel header

- 1 x front panel audio header

- 1 x S/PDIF Out header

- 1 x USB Type-C® header, with USB 3.2 Gen 1 support

- 1 x USB 3.2 Gen 1 header

- 2 x USB 2.0/1.1 headers

- 1 x serial port header

- 2 x Thunderbolt™ add-in card connectors

- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

- 1 x reset button

- 1 x Q-Flash Plus button

- 1 x reset jumper

- 1 x Clear CMOS jumper

Back Panel Connectors

- 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

- 1 x USB 3.2 Gen 2 Type-A port (red)

- 4 x USB 3.2 Gen 1 ports

- 4 x USB 2.0/1.1 ports

- 1 x HDMI 2.0 port

- 1 x DisplayPort

- 1 x RJ-45 port

- 3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

- Voltage detection

- Temperature detection

- Fan speed detection

- Water cooling flow rate detection

- Fan fail warning

- Fan speed control

(Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.)

BIOS

- 1 x 256 Mbit flash

- Use of licensed AMI UEFI BIOS

- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

- Support for GIGABYTE Control Center (GCC)

(Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.)

- Support for Q-Flash

- Support for Q-Flash Plus

- Support for Smart Backup

Bundled Software

- Norton® Internet Security (OEM version)

- LAN bandwidth management software

Operating System

- Support for Windows 11 64-bit

- Support for Windows 10 64-bit

Form Factor

- ATX Form Factor; 30.5cm x 24.4cm
