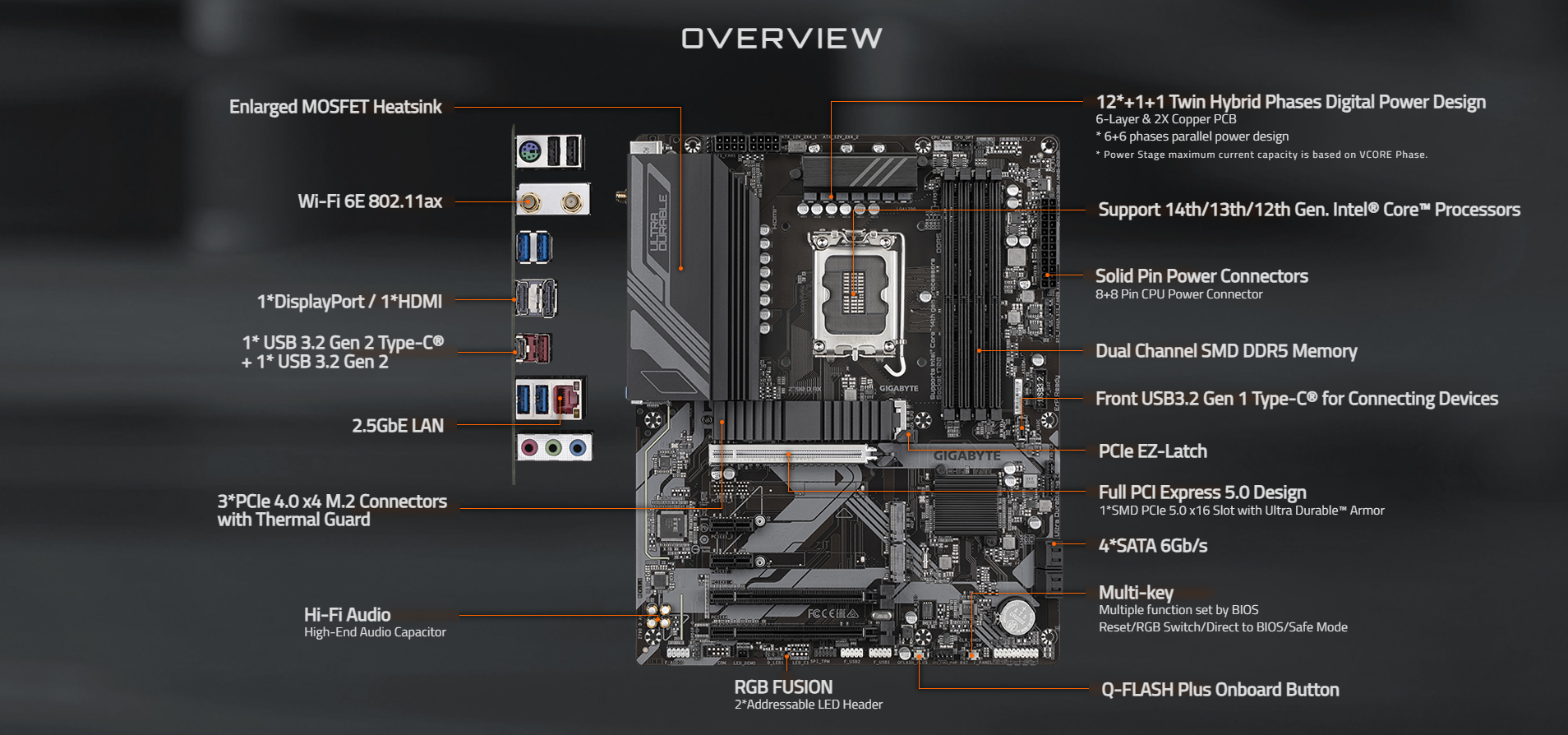

GIGABYTE Z790 D AX LGA 1700 ATX Motherboard, Intel Z790 Express Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x SMD PCIe 5.0 x16 Slot, 3x M.2 Slots, WiFi 6E & BT 5.3 | Z790-D-AX

CPU

LGA1700 socket: Supports 14th/13th/12th Gen Intel Core, Pentium Gold, Celeron. L3 cache varies with CPU.

Chipset

Intel Z790 Express Chipset

Memory

Supports DDR5 up to 7600(O.C.), 4x DDR5 DIMM slots, up to 256GB, ECC/non-ECC Un-buffered, Dual channel, XMP support.

Onboard Graphics

Intel HD Graphics, 1x HDMI (4096x2160@60Hz), 1x DP (4096x2304@60Hz), HDMI 2.1 & DP 1.2, HDCP 2.3.

Audio

Realtek Audio CODEC, High Definition, 2/4/5.1/7.1-channel, S/PDIF Out.

LAN

Realtek 2.5GbE LAN (2.5/1 Gbps/100 Mbps)

Wireless Communication

Intel Wi-Fi 6E AX211 (WiFi a/b/g/n/ac/ax, 2.4/5/6 GHz, BT 5.3, 160MHz support)

Expansion Slots

1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4, 1x PCIe 3.0 x1, 2x PCIe 3.0 x1 (Chipset)

Storage Interface

1x M.2 (CPU, PCIe 4.0 x4/x2), 2x M.2 (Chipset, PCIe 4.0/SATA), 4x SATA 6Gb/s, RAID 0/1/5/10 for NVMe & SATA.

USB

Rear: 1x USB-C 3.2 Gen 2, 1x USB-A 3.2 Gen 2, 4x USB 3.2 Gen 1, 2x USB 2.0. Internal: USB-C 3.2 Gen 1, USB 3.2 Gen 1, 4x USB 2.0.

Internal I/O Connectors

ATX 24-pin, 2x 8-pin ATX 12V, 5x fan headers, 2x aRGB headers, 3x M.2, 4x SATA, front audio, front panel, USB headers, TPM, reset, Q-Flash Plus, Clear CMOS.

Back Panel Connectors

PS/2, USB-C, USB-A (Gen 2), 4x USB 3.2, 2x USB 2.0, 2x SMA antenna, HDMI, DP, RJ-45, 3x audio jacks.

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

Voltage/Temp/Fan speed/water flow monitoring, fan fail warning, speed control (depends on fan/pump).

BIOS

256Mbit AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup

Bundled Software

Norton Internet Security (OEM), LAN bandwidth software

Operating System

Windows 11 64-bit, Windows 10 64-bit

Form Factor

ATX (30.5 cm x 24.4 cm)
