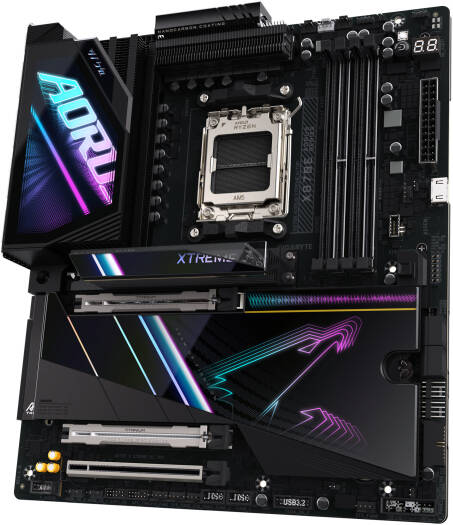

GIGABYTE X870E Aorus XTREME AI TOP E-ATX AM5 Motherboard, AMD X870E Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 2x PCIe 5.0 x16 Slot, 4x M.2 Slots | X870E-A-XTREME-AI-TOP

CPU

AMD Socket AM5, supporting AMD Ryzen™ 9000/8000/7000 Series Processors.

Chipset

AMD X870E

Memory

DDR5 (up to 256 GB), supporting speeds up to 8800 MT/s (O.C.), dual-channel, ECC/non-ECC DIMMs, AMD EXPO™, XMP support.

Onboard Graphics

Integrated AMD Radeon™ Graphics:
2x USB4® Type-C® (DP 1.4, 3840x2160@240 Hz)
1x HDMI 2.1 (4096x2160@60 Hz)
1x Front HDMI 1.4 (1920x1080@30 Hz).

Audio

Realtek® ALC1220 CODEC, ESS ES9118 DAC, DTS:X® Ultra, 2/4/5.1-channel, S/PDIF Out.

LAN

Dual Marvell® AQtion AQC113C 10GbE LAN.

Wireless

Qualcomm® Wi-Fi 7 (802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz), Bluetooth 5.3.

Expansion Slots

1x PCIe 5.0 x16 (shared bandwidth with PCIe x8)
1x PCIe 5.0 x8
1x PCIe 4.0 x2 (shared with M2E_SB).

Storage Interface

1x M.2 PCIe 5.0 (CPU)
3x M.2 PCIe 4.0 (Chipset)
4x SATA 6Gb/s
RAID 0/1/5/10 (NVMe/SATA, depending on CPU).

USB

2x USB4® Type-C®
1x USB 3.2 Gen 2 Type-A (red)
1x USB 3.2 Gen 2x2 Type-C®
5x USB 3.2 Gen 2 Type-A
4x USB 3.2 Gen 1
6x USB 2.0/1.1.

Internal I/O

4x M.2 connectors, 4x SATA 6Gb/s, multiple fan/pump headers, RGB headers, USB headers, temperature sensors, reset/clear CMOS buttons, and others.

Back Panel

2x USB4® Type-C®, 6x USB 3.2 Gen 2, 2x USB 2.0
2x RJ-45, 2x audio jacks, 1x optical S/PDIF
2x antenna connectors
1x HDMI, Q-Flash Plus button, Clear CMOS button.

I/O Controller

iTE® I/O Controller Chip.

H/W Monitoring

Voltage, temperature, fan speed, water cooling flow rate, and noise detection.

BIOS

256 Mbit flash, AMI UEFI BIOS.

Unique Features

GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup.

Bundled Software

Norton® Internet Security (OEM), LAN bandwidth management software.

OS Support

Windows 11 64-bit.

Form Factor

E-ATX (30.5cm x 26.9cm).
