GIGABYTE X870E AORUS PRO X3D ICE ATX AM5 Motherboard, AMD X870E Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 with PCIe UD Slots, 4x M.2 Slots | X870E A PRO X ICE

CPU

AMD Socket AM5 – supports AMD Ryzen / 8000 / 7000 Series

Chipset

AMD X870E

Memory

4× DDR5 DIMM, up to 256 GB, Dual-Channel, DDR5 4800–9000+ MT/s (OC), EXPO™ / XMP

Onboard Graphics

AMD Radeon™ Graphics (CPU-dependent)

Video Outputs

2× USB4 Type-C (DP 1.4, up to 4K@240Hz), 1× HDMI 2.1 (4K@60Hz), 1× front HDMI 1.4 (1080p@30Hz)

Audio

Realtek ALC1220, 7.1-channel, S/PDIF Out

LAN

Realtek 5GbE (5G / 2.5G / 1G / 100M)

Wireless

Qualcomm Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be), Bluetooth 5.4

Expansion Slots

1× PCIe x16 (CPU: PCIe 5.0/4.0), 1× PCIe 4.0 x4, 1× PCIe 3.0 x2

Storage

4× M.2 (PCIe 5.0/4.0), 4× SATA 6 Gb/s

RAID

NVMe: 0/1/5/10 (RAID 5 Ryzen 9000 only); SATA: 0/1/10

USB (Rear)

2× USB4 Type-C, 2× USB-C 3.2 Gen2, 5× USB-A 3.2 Gen2, 3× USB-A 3.2 Gen1

USB (Internal)

USB-C 3.2 Gen2x2 (65W PD), 2× USB 3.2 Gen1 headers, 2× USB 2.0 headers

Internal Connectors

ATX 24-pin, 2× 8-pin CPU, PCIe power, fan & pump headers, RGB headers, TPM, sensors

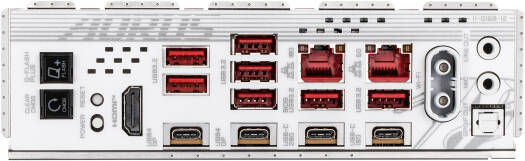

Back Panel

HDMI, USB4, USB-C, USB-A, RJ-45, Wi-Fi antennas, audio jacks, Optical S/PDIF

Monitoring

Voltage, temperature, fan/pump speed, noise detection

BIOS

512 Mbit AMI UEFI

Features

GCC, Q-Flash, Q-Flash Plus, Smart Backup

Bundled Software

Norton Internet Security (OEM)

Operating System

Windows 11 64-bit

Form Factor

ATX – 30.5 × 24.4 cm
