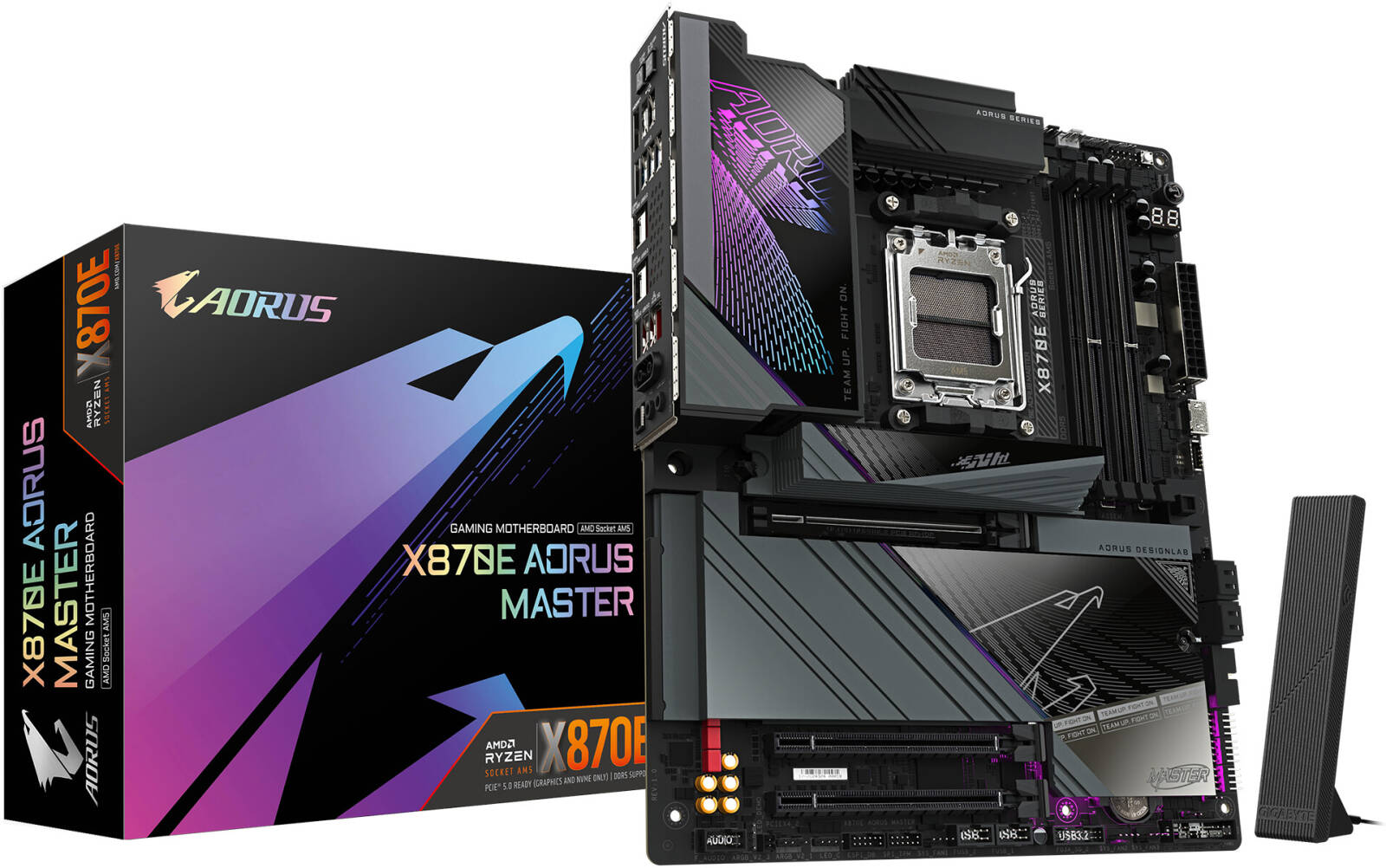

GIGABYTE X870E AORUS MASTER ATX Motherboard , AMD AM5 Socket, Supports Ryzen 9000, 8000, 7000 Series Processors, Up To up to 256GB DDR5 RAM, Wi-Fi 7, Bluetooth 5.3, 5GbE LAN | X870E-AORUS-MASTER - Image 1
1 / 6

GIGABYTE X870E AORUS MASTER ATX Motherboard , AMD AM5 Socket, Supports Ryzen 9000, 8000, 7000 Series Processors, Up To up to 256GB DDR5 RAM, Wi-Fi 7, Bluetooth 5.3, 5GbE LAN | X870E-AORUS-MASTER

Brand: Gigabyte|Category: Motherboards|SKU: 10680|Model: X870E-AORUS-MASTER
AED 2,050.00

  • DDR5 OC up to 8600MT/s

  • Digital twin 16+2+2 phases VRM solution

  • DDR Wind Blade: Enhanced Active Cooling for Memory Modules

  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation

  • Ultra-Fast Storage：4*M.2 slots, including 3* PCIe 5.0 x4

Included warranty

1 Year

Secure payment

Your payment is encrypted and processed securely at checkout.

Additional Warranty

1

Product Description

Category

Specifications

CPU

AMD Socket AM5, support for Ryzen™ 9000, 8000, and 7000 Series Processors

Chipset

AMD X870E

Memory

DDR5 up to 8600(OC) MT/s, 4 x DDR5 DIMM sockets, max 256 GB, dual channel, ECC and non-ECC, AMD EXPO™ and XMP support

Onboard Graphics

Integrated AMD Radeon™ Graphics, 2 x USB4 Type-C (DisplayPort 1.4), HDMI (4096x2160@60Hz, HDMI 2.1), Front HDMI (1920x1080@30Hz, HDMI 1.4)

Audio

Realtek® ALC1220 CODEC, DTS



® Ultra, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out

LAN

Realtek® 5GbE LAN chip

Wireless Communication

Qualcomm® Wi-Fi 7 QCNCM865 (802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz), Bluetooth 5.3

Expansion Slots

1 x PCIe 5.0 x16 (Ryzen 9000/7000), 1 x PCIe 4.0 x8 (Ryzen 8000 Phoenix 1), 1 x PCIe 4.0 x4 (Chipset), 1 x PCIe 3.0 x4 (Chipset)

Storage Interface

4 x M.2 (PCIe 5.0 and 4.0 x4/x2), 4 x SATA 6Gb/s, RAID 0/1/5/10 for NVMe and SATA storage (RAID 5 on Ryzen 9000 only)

USB Ports

2 x USB4 Type-C (back), 1 x USB Type-C (internal, USB 3.2 Gen 2x2), 3 x USB 3.2 Gen 2 (Type-A), 4 x USB 3.2 Gen 1 (back), 6 x USB 2.0/1.1 (2 back, 4 internal)

Internal I/O Connectors

24-pin ATX, 2 x 8-pin ATX 12V, multiple fan headers, RGB Gen2 LED strip headers, TPM header, 2 x temperature sensor headers, Voltage Measurement Points, Clear CMOS, Q-Flash Plus buttons

Back Panel Connectors

2 x USB4 Type-C (DisplayPort), 4 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1, 2 x USB 2.0, HDMI, RJ-45, 2 x audio jacks, optical S/PDIF Out, 2 x antenna connectors

I/O Controller

iTE® I/O Controller Chip, voltage/temperature/fan speed detection, noise detection, fan fail warning, water cooling flow rate detection

BIOS

256 Mbit flash, AMI UEFI BIOS

Unique Features

GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup

Bundled Software

Norton® Internet Security (OEM version), LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Form Factor

ATX, 30.5cm x 24.4cm
