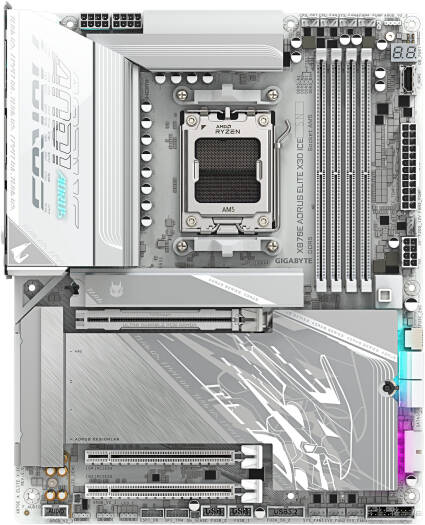

GIGABYTE X870E AORUS ELITE X3D ICE AM5 ATX Motherboard, AMD X870E Chipset, 4x DDR5 DIMM Slots, 256GB Max Memory, 1x PCI Express x16 Slot, 4x M.2 Slots, White | 9MX87EEXE-00-G10

CPU Support

AMD Socket AM5 — Ryzen 9000 / 8000 / 7000 Series (check GIGABYTE website for latest support)

Chipset

AMD X870E

Memory

• DDR5 4800–9000(O.C.) MT/s
• 4× DDR5 DIMM, up to 256 GB (64 GB per DIMM)
• Dual-channel
• Non-ECC Unbuffered 1Rx8/2Rx8/1Rx16
• Supports AMD EXPO & Intel XMP
• Supported speeds depend on CPU

Onboard Graphics

USB4 Type-C (x2): USB4 + DisplayPort, 3840×2160 @240Hz (DP 1.4, HDR)
HDMI (rear): HDMI 2.1, 4096×2160 @60Hz, HDCP 2.3
Front HDMI: HDMI 1.4, 1920×1080 @30Hz
Graphics depend on CPU

Audio

Realtek ALC1220 codec
DSD supported on line-out
7.1-channel HD Audio
S/PDIF Out

LAN

Realtek 5GbE (5G/2.5G/1G/100M)

Wireless

Qualcomm Wi-Fi 7 (802.11a/b/g/n/ac/ax/be) – 2.4/5/6 GHz
Bluetooth 5.4
Supports 320 MHz channels
Wi-Fi 7 requires Windows 11 SV3

Expansion Slots

CPU: 1× PCIe x16
• Ryzen 9000/7000 → PCIe 5.0 x16
• Ryzen 8000 Phoenix 1 → PCIe 4.0 x8
• Ryzen 8000 Phoenix 2 → PCIe 4.0 x4
Chipset:
• 1× PCIe 4.0 x4 (PCIEX4)
• 1× PCIe 3.0 x2 (PCIEX2)

Storage (M.2 / SATA)

CPU:
• M2A_CPU: PCIe 5.0/4.0 x4/x2 (22110/2280/2580/25110)
• M2B_CPU: PCIe 5.0 x4/x2 (22110/2280) — bandwidth shared with USB4 controller
• With AMD 8000 Phoenix → M2B unavailable

Chipset:
• M2C_SB + M2D_SB: PCIe 4.0 x4/x2 (22110/2280)

SATA: 4× SATA 6Gb/s

RAID:
• NVMe RAID 0/1/5/10 (RAID 5 only on Ryzen 9000)
• SATA RAID 0/1/10

USB Ports

Back Panel:
• 2× USB4 Type-C
• 1× USB-C (USB 3.2 Gen 2)
• 5× USB 3.2 Gen 2 Type-A (red)
• 3× USB 3.2 Gen 1

Internal:
• USB-C (USB 3.2 Gen 2x2) + 65W PD/QC 4+
• 4× USB 3.2 Gen 1 (via headers)
• 4× USB 2.0

Internal I/O

• 24-pin ATX power
• 2× 8-pin CPU power
• PCIe power connector
• CPU fan + pump headers
• 4× system fans + 2× system/pump
• 3× ARGB Gen2 + 1× RGB headers
• 4× M.2 connectors
• 4× SATA
• Front panel + audio
• USB-C header (Gen2x2)
• 2× USB 3.2 Gen1 headers
• 2× USB 2.0 headers
• TPM header
• HDMI port
• Reset jumper / Clear CMOS
• 2× temperature sensor headers
• Noise detection header

Back Panel

• HDMI
• Reset / Power / Clear CMOS / Q-Flash Plus buttons
• 5× USB 3.2 Gen 2 Type-A
• 1× USB-C (USB 3.2 Gen 2)
• 2× USB4 Type-C (DP alt-mode)
• 1× RJ-45 (5GbE)
• 3× USB 3.2 Gen 1
• 2× antenna connectors
• 2× audio jacks + optical S/PDIF

I/O Controller

iTE Controller

Hardware Monitoring

Voltage, temp, fan speed, pump speed, water flow, fan fail warning, fan control, noise detection

BIOS

512 Mbit AMI UEFI BIOS — PnP 1.0a, DMI 2.7, ACPI 5.0
Supports Q-Flash & Q-Flash Plus

Unique Features

Gigabyte Control Center, Smart Backup

Bundled Software

Norton Internet Security (OEM)

OS Support

Windows 11 64-bit

Form Factor

ATX (30.5 cm × 24.4 cm)
