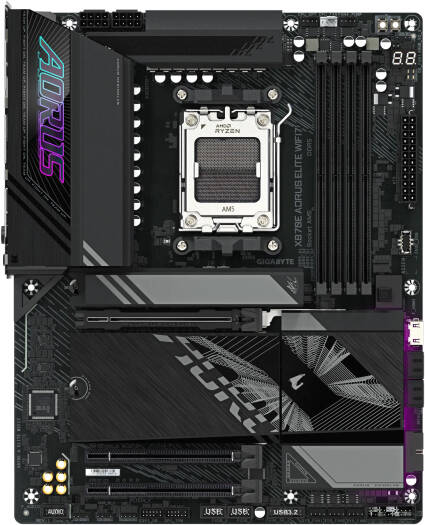

GIGABYTE X870E Aorus Elite WIFI7 Motherboard, AMD X870E Chipset, AMD Socket AM5, Dual Channel DDR5, EZ-Latch Plus, 4x M.2 Slots, Sensor Panel Link | X870E AORUS ELITE WIFI7

CPU

AMD Socket AM5, supports AMD Ryzen™ 9000/8000/7000 Series Processors.

Chipset

AMD X870E

Memory

- DDR5 up to 8200 MT/s (OC)
- 4 x DIMM, up to 256 GB total capacity
- Dual-channel
- AMD EXPO™ & XMP support.

Onboard Graphics

- AMD Radeon™ Graphics
- 2 x USB4® USB-C ports (DisplayPort 1.4, HDR)
- HDMI 2.1: 4096x2160@60 Hz
- Front HDMI 1.4: 1920x1080@30 Hz.

Audio

Realtek® ALC1220 CODEC
- DSD audio support
- 7.1-channel (via software)
- S/PDIF Out.

LAN

Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication

- Wi-Fi 7 (MediaTek MT7925/Realtek RTL8922AE)
- Bluetooth 5.4.

Expansion Slots

- 1 x PCIe 5.0 x16 (CPU-integrated)
- 1 x PCIe 4.0 x4
- 1 x PCIe 3.0 x4.

Storage Interface

- 4 x M.2 (PCIe 5.0 & 4.0 support)
- 4 x SATA 6Gb/s (RAID 0, 1, 5, 10).

USB Ports

- 2 x USB4® Type-C
- 1 x USB 3.2 Gen 1
- 1 x USB-C (USB 3.2 Gen 2x2)
- 2 x USB 3.2 Gen 2 (Type-A)
- 7 x USB 3.2 Gen 1
- 8 x USB 2.0.

Internal I/O

- 24-pin ATX power
- 2 x 8-pin ATX 12V power
- CPU/System/Water fan headers
- RGB/ARGB headers
- USB-C and USB 3.2 headers.

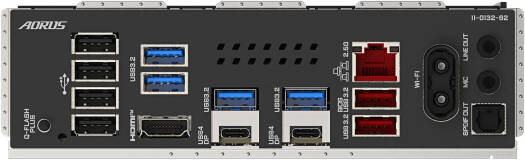

Back Panel I/O

- 2 x USB4® Type-C (DisplayPort support)
- 4 x USB 2.0
- 4 x USB 3.2 Gen 1
- 2 x USB 3.2 Gen 2 (Type-A, red)
- HDMI, RJ-45, S/PDIF, Audio.

BIOS

AMI UEFI BIOS
- Q-Flash & Q-Flash Plus support
- 256 Mbit flash.

Unique Features

- GIGABYTE Control Center
- Smart Backup
- Noise detection.

Bundled Software

- Norton® Internet Security (OEM version)
- LAN management software.

Operating System

Windows 11 64-bit

Form Factor

ATX (30.5cm x 24.4cm).
