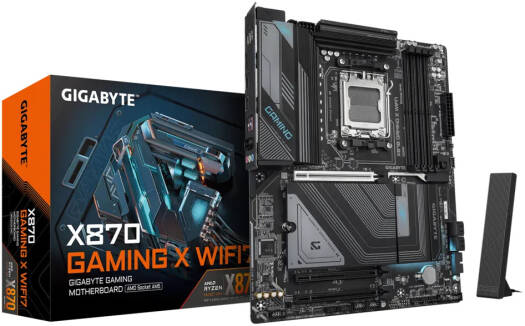

GIGABYTE X870 Gaming X WIFI7 Motherboard, AMD X870 Chipset, AMD Socket AM5, Dual Channel DDR5, WIFI EZ-Plug, Friendly UI, Ultra-Fast Storage, EZ-Latch Click | X870-GAMING-X-WIFI7 - Image 1
1 / 4

GIGABYTE X870 Gaming X WIFI7 Motherboard, AMD X870 Chipset, AMD Socket AM5, Dual Channel DDR5, WIFI EZ-Plug, Friendly UI, Ultra-Fast Storage, EZ-Latch Click | X870-GAMING-X-WIFI7

Brand: Gigabyte|Category: Motherboards|SKU: 10678|Model: X870-GAMING-X-WIFI7
AED 975.00

  • AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors

  • Digital twin 16+2+2 phases VRM solution

  • Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support

  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation

  • EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design

  • EZ-Latch Click：M.2 heatsinks with screwless design

  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.

  • Ultra-Fast Storage：3*M.2 slots, including 1* PCIe 5.0 x4

Included warranty

1 Year

Secure payment

Your payment is encrypted and processed securely at checkout.

Additional Warranty

1

Product Description



CPU

AMD Socket AM5; supports Ryzen™ 9000/8000/7000 Series Processors

Chipset

AMD X870

Memory

- DDR5: Up to 8200 MT/s (OC)
- 4 DIMM slots, max capacity 256 GB
- Supports AMD EXPO™ and XMP

Graphics

- Integrated AMD Radeon™ Graphics
- 2 x USB4® USB Type-C® (3840x2160@240 Hz)
- HDMI 2.1 (4096x2160@60 Hz)
- Native HDMI 2.1 support

Audio

Realtek® Audio CODEC
High Definition Audio (7.1-channel)

LAN

Realtek® 2.5GbE LAN chip

Wireless

- MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) or Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
- Bluetooth 5.4

Expansion Slots

- 1 x PCIe 5.0 x16 (CPU)
- 2 x PCIe 3.0 x1 (Chipset)

Storage

- 3 x M.2 (PCIe 5.0/4.0)
- 4 x SATA 6Gb/s

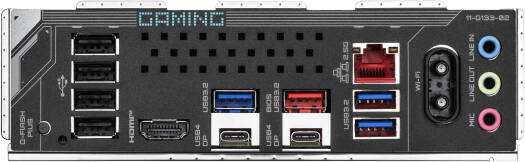

USB Ports

- 2 x USB4® Type-C®
- 1 x USB 3.2 Gen 2 Type-A
- 3 x USB 3.2 Gen 1
- 8 x USB 2.0/1.1

Internal I/O

- ATX power connectors: 1 x 24-pin, 1 x 8-pin, 1 x 4-pin
- Fan headers: 1 x CPU, 4 x System, 1 x CPU Pump, 3 x ARGB Gen2

Monitoring

Voltage, temperature, fan speed, and water cooling flow rate detection

BIOS

AMI UEFI BIOS (256 Mbit Flash)

Form Factor

ATX, 30.5cm x 24.4cm

Software Features

- GIGABYTE Control Center (GCC)
- Q-Flash Plus
- Smart Backup

OS Compatibility

Windows 11 64-bit
