GIGABYTE X870 GAMING WIFI6 AM5 ATX Motherboard, AMD X870 Chipset, For AMD Ryzen 9000/8000/7000 Series Processors, DDR5, 3x M.2 Slots, PCIe 5.0 x16, Black | X870-GAMING-WF6
AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital twin 8+2+2 phases VRM solution
Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support
WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
EZ-Latch Click：M.2 heatsinks with screwless design
Ultra-Fast Storage：3*M.2 slots, including 1* PCIe 5.0 x4
Fast Networking：2.5GbE LAN & Wi-Fi 6 802.11ax
Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDM
Included warranty
1 Year
Secure payment
Your payment is encrypted and processed securely at checkout.
Additional Warranty
Product Description
Feature | Specification |
|---|---|
CPU Support | AMD Socket AM5: Ryzen™ 9000/8000/7000 Series Processors |
Chipset | AMD X870 |
Memory Support | - DDR5 8200(O.C) to 4400MT/s memory modules |
| - 4 x DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM) |
| - Dual-channel architecture, supports AMD EXPO™ and XMP profiles |
Graphics | Integrated AMD Radeon™ Graphics |
| - 2 x USB4® USB Type-C® (3840x2160@240Hz, DisplayPort 1.4, HDR) |
| - 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDR) |
Audio | Realtek® Audio CODEC, High Definition Audio, supports 2/4/5.1/7.1-channel audio |
LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Wireless Communication | Realtek® Wi-Fi 6 RTL8851BE: Wi-Fi a/b/g/n/ac/ax, Bluetooth 5.3 |
Expansion Slots | - 1 x PCIe 5.0 x16 slot (Ryzen™ 9000/7000 Series) |
| - 2 x PCIe 3.0 x1 slots (chipset) |
Storage Interface | - 1 x M.2 PCIe 5.0 x4 SSD slot (CPU-integrated) |
| - 2 x M.2 PCIe 4.0 x4/x2 SSD slots (chipset-integrated, shared bandwidth) |
| - 4 x SATA 6Gb/s connectors |
| - RAID 0/1/5/10 for NVMe SSDs (RAID 5 only on Ryzen™ 9000 Series); RAID 0/1/10 for SATA |
USB Ports | - 2 x USB4® USB Type-C® ports |
| - 1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 (back panel) |
| - Internal: 1 x USB Type-C® (USB 3.2 Gen 2x2), 1 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 headers |
Internal I/O Connectors | - 1 x 24-pin ATX main, 1 x 8-pin ATX 12V, 1 x 4-pin ATX 12V |
| - 1 x CPU fan, 1 x CPU fan/water cooling pump, 4 x system fan |
| - 3 x addressable RGB Gen2 LED, 1 x RGB LED strip headers |
| - 4 x SATA connectors, 3 x M.2 Socket 3 connectors, front panel headers |
| - Trusted Platform Module header, reset jumper, Clear CMOS jumper |

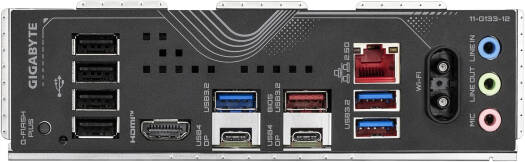

Back Panel Connectors | - 2 x SMA antenna, 1 x HDMI, 2 x USB4® USB Type-C®, 1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1 |
| - 4 x USB 2.0/1.1, 1 x RJ-45, 3 x audio jacks, 1 x Q-Flash Plus button |
I/O Controller | iTE® I/O Controller Chip |
H/W Monitoring | Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning |
BIOS | 256 Mbit flash, AMI UEFI BIOS, supports Q-Flash, Q-Flash Plus, and Smart Backup |
Bundled Software | Norton® Internet Security (OEM version), LAN bandwidth management software |
Operating System Support | Windows 11 64-bit, Windows 10 64-bit |
Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) |
Unique Features | GIGABYTE Control Center (GCC), Q-Flash Plus, Smart Backup |
