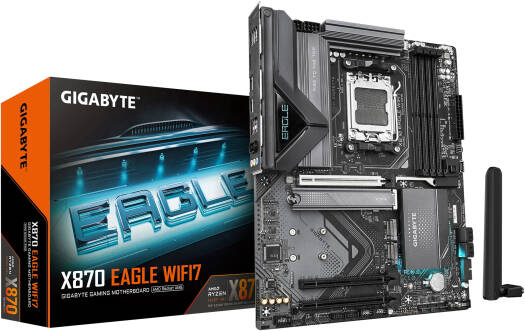

GIGABYTE X870 EAGLE WIFI7 Motherboard, AMD Socket AM5, Dual Channel DDR5, AMD X870 Chipset, DDR5 Up to 256GB Memory, EZ-Latch Plus, 3 x M.2 Slots | X870-EAGLE-WIFI7 - Image 1
1 / 4

GIGABYTE X870 EAGLE WIFI7 Motherboard, AMD Socket AM5, Dual Channel DDR5, AMD X870 Chipset, DDR5 Up to 256GB Memory, EZ-Latch Plus, 3 x M.2 Slots | X870-EAGLE-WIFI7

Brand: Gigabyte|Category: Motherboards|SKU: 10676|Model: X870-EAGLE-WIFI7
AED 849.00

  • AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors

  • Digital twin 14+2+2 phases VRM solution

  • Dual Channel DDR5：4*DIMMs with AMD EXPO™Memory Module Support

  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation

  • EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design

  • EZ-Latch Click：M.2 heatsinks with screwless design

  • Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.

Secure payment

Your payment is encrypted and processed securely at checkout.

Additional Warranty

1

Product Description

CPU Support

AMD Socket AM5 (Supports Ryzen™ 9000/8000/7000 Series Processors)

Chipset

AMD X870

Memory

- DDR5 (Up to 256GB)
- Speeds: 4400-8200 MT/s (OC)
- 4x DIMM slots
- Dual Channel architecture
- Supports AMD EXPO™ and XMP profiles

Graphics Support

- Integrated AMD Radeon™ Graphics
- HDMI 2.1 (Max 4096x2160@60Hz)
- 2 x USB4® (DP output up to 3840x2160@240Hz)

Audio

Realtek® Audio CODEC, 7.1 Channel HD Audio support

LAN

Realtek® 2.5GbE LAN

Wireless Communication

- MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) or Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
- Bluetooth 5.4

Expansion Slots

- 1x PCIe 5.0 x16 slot (CPU-integrated)
- 2x PCIe 3.0 x1 slots (Chipset)

Storage

- 3x M.2 Slots:
-- PCIe 5.0 x4/x2 (M2A_CPU)
-- PCIe 4.0 x4/x2 (M2B_SB, M2C_SB)*
- 4x SATA 6Gb/s

RAID Support

- NVMe SSDs: RAID 0, 1, 5**, 10
- SATA: RAID 0, 1, 10

USB Ports

- Back Panel:
-- 2x USB4® (Type-C®)
-- 1x USB 3.2 Gen 2 (Type-A, red)
-- 3x USB 3.2 Gen 1
-- 4x USB 2.0
- Internal: USB-C 3.2 Gen 2x2, 2x USB 3.2 Gen 1, 4x USB 2.0

Cooling Features

- 1x CPU Fan Header
- 1x CPU Fan/Water Pump Header
- 4x System Fan Headers

RGB Headers

3x Addressable RGB Gen2 Headers, 1x RGB LED Header

Back Panel Connectors

- Q-Flash Plus button
- 2x Antenna Connectors
- HDMI
- RJ-45
- Audio Jacks

BIOS

- AMI UEFI BIOS
- 256 Mbit Flash
- Features: Q-Flash, Q-Flash Plus, Smart Backup

Software

Norton® Internet Security, LAN Bandwidth Management Software

OS Support

Windows 11 64-bit

Form Factor

ATX (30.5 cm x 24.4 cm)
