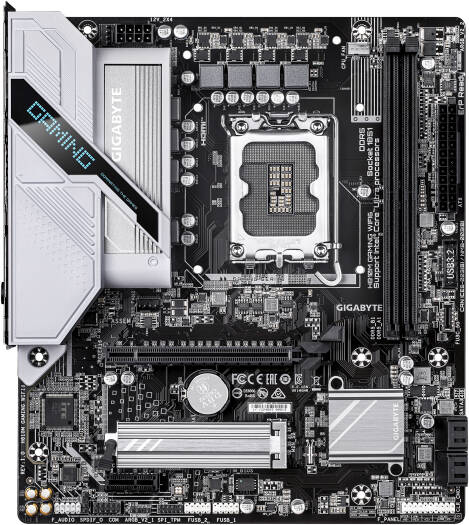

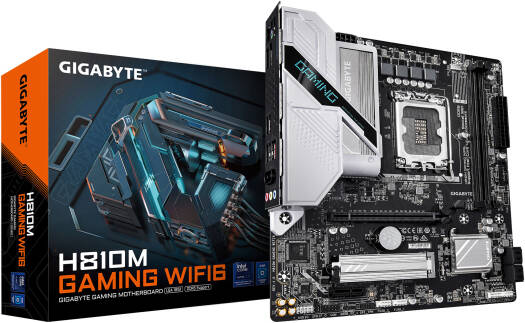

GIGABYTE H810M GAMING WIFI6 M-ATX LGA 1851 Motherboard, Intel H810 Chipset, 2x DDR5 DIMM Slots, 128GB Max Memory, 1 x PCIe 4.0 x16 Slot, 1 x PCIe 4.0 M.2 Slot | H810M GAMING WIFI6 - Image 1
1 / 3

GIGABYTE H810M GAMING WIFI6 M-ATX LGA 1851 Motherboard, Intel H810 Chipset, 2x DDR5 DIMM Slots, 128GB Max Memory, 1 x PCIe 4.0 x16 Slot, 1 x PCIe 4.0 M.2 Slot | H810M GAMING WIFI6

Brand: Gigabyte|Category: Motherboards|SKU: 10404|Model: GIGABYTE H810M
AED 510.00

  • Supports Intel® Core™ Ultra processors (Series 2)

  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation

  • EZ-Latch: PCIe x16 Slot with Quick Release Design

  • M.2 EZ-Latch Plus: Screwless installation for M.2 SSDs

  • Friendly UI: Multi-Theme, and Q-Flash Auto Scan in BIOS and SW

  • Ultra-Fast Storage: PCIe 4.0 x4 M.2 slots

  • Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard

  • Fast Networking: 2.5GbE LAN & Wi-Fi 6 802.11ax

  • Extended Connectivity: HDMI, DisplayPort

Included warranty

1 Year

Secure payment

Your payment is encrypted and processed securely at checkout.

Additional Warranty

1

Product Description

CPU socket

LGA1851

CPU support

Intel Core Ultra

Chipset

Intel H810

Memory

2× DDR5 DIMM, up to 128 GB, Dual Channel

Memory speed

DDR5 6400 / 5600 MT/s

Memory support

ECC UDIMM (non-ECC mode), non-ECC UDIMM, XMP

Onboard graphics

Intel HD Graphics (CPU dependent)

Video outputs

HDMI 2.1 (4096×2160@60Hz), DisplayPort 2.1 (3840×2160@60Hz)

Audio

Realtek HD Audio, 2/4/5.1/7.1-ch, S/PDIF

LAN

Realtek 2.5GbE

Wireless

Realtek RTL8851BE, Wi-Fi 6, Bluetooth 5.3

Expansion slots

1× PCIe 4.0 x16 (CPU), 1× PCIe 3.0 x1 (Chipset)

M.2 storage

1× M.2 PCIe 4.0 x4/x2 (2280)

SATA

4× SATA 6 Gb/s

USB (rear)

1× USB 3.2 Gen1, 5× USB 2.0

USB (internal)

USB-C Gen1 ×1, USB 3.2 Gen1 ×2, USB 2.0 ×4

Internal connectors

ATX 24-pin, 8-pin CPU, fan headers, RGB Gen2, TPM, serial, CMOS

Back panel

PS/2, HDMI, DP, USB, RJ-45, audio jacks

BIOS

AMI UEFI, 256 Mbit flash

Features

GIGABYTE Control Center, Q-Flash, Smart Backup

Bundled software

Norton® Internet Security (OEM)

OS support

Windows 11 / Windows 10

Form factor

Micro-ATX

Dimensions

24.4 × 21.5 cm
